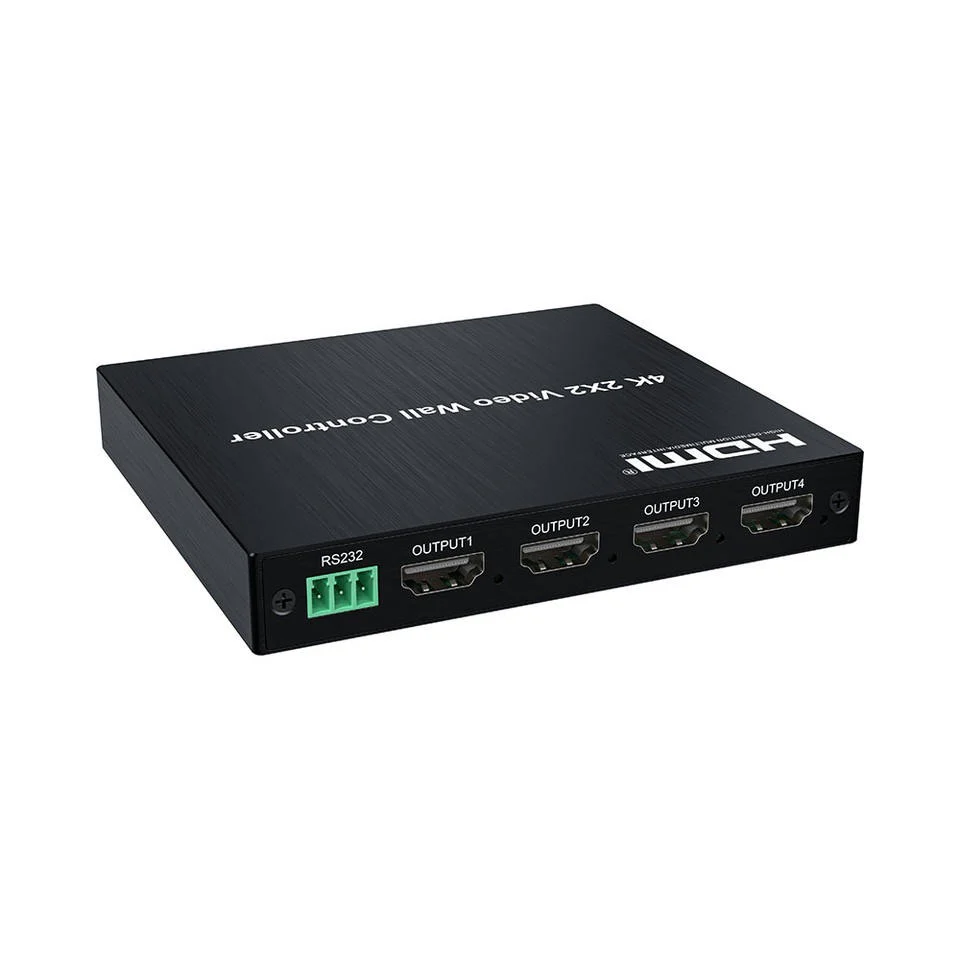

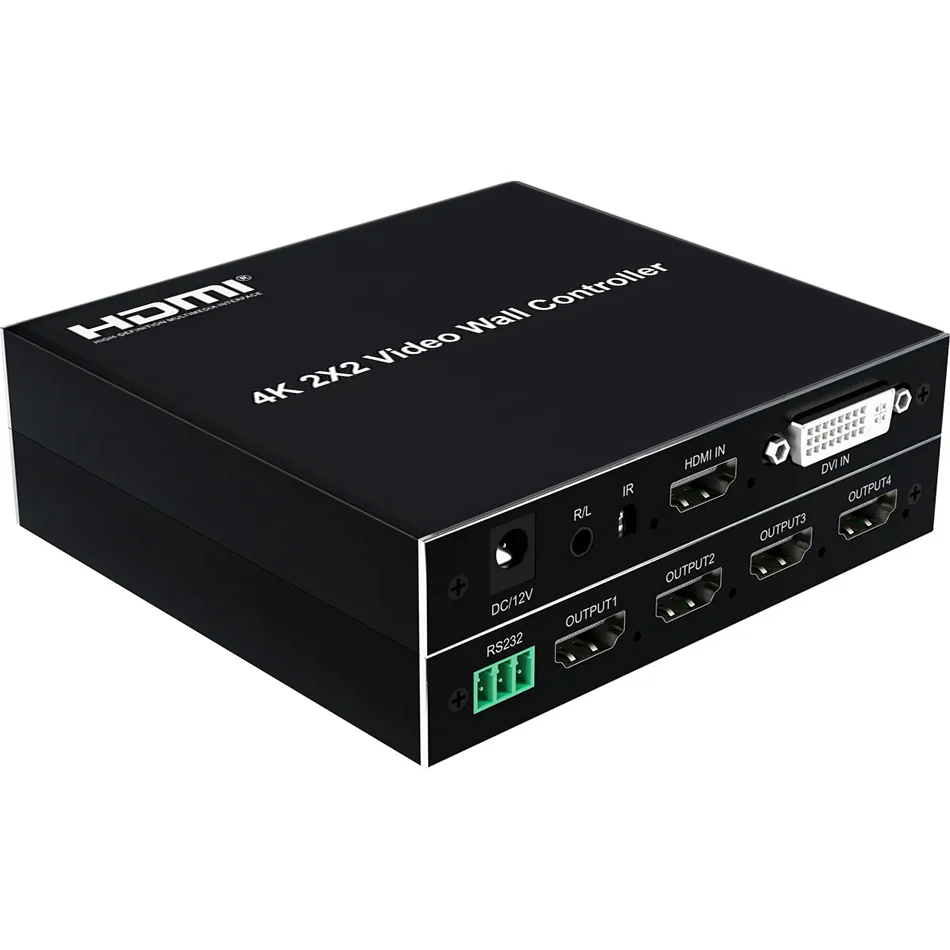

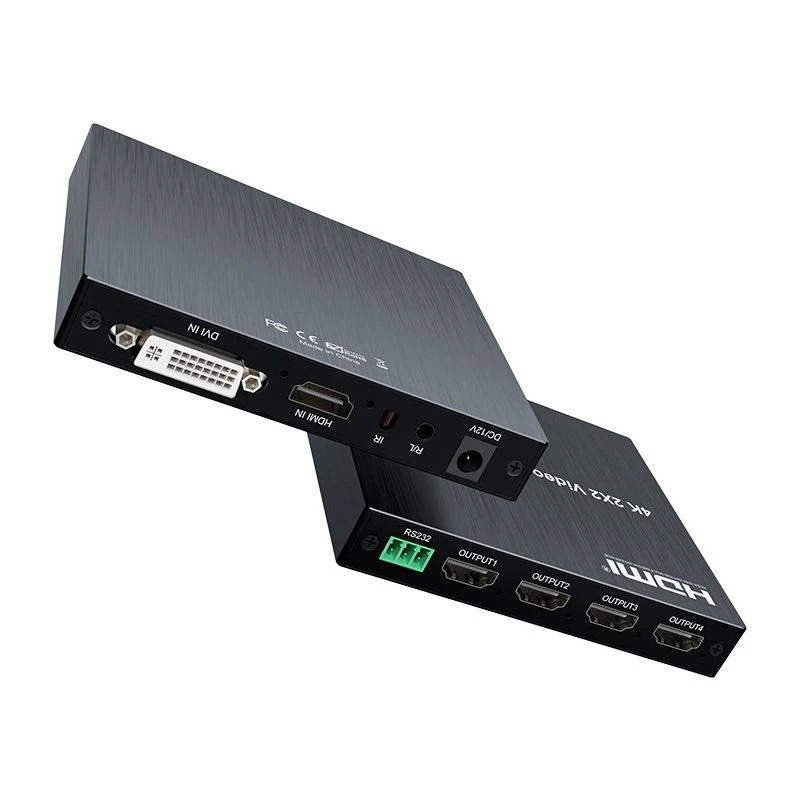

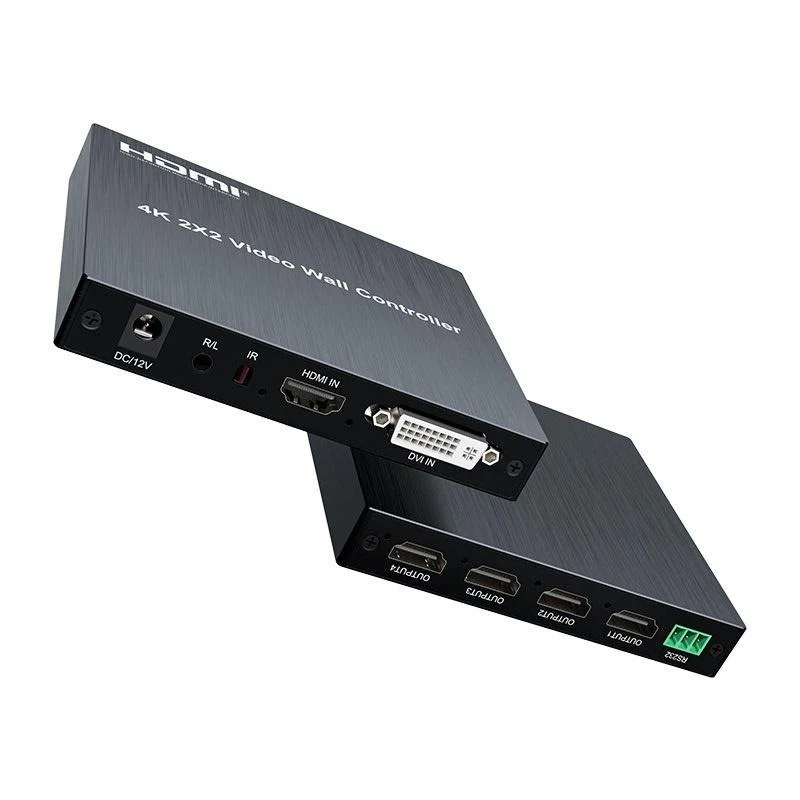

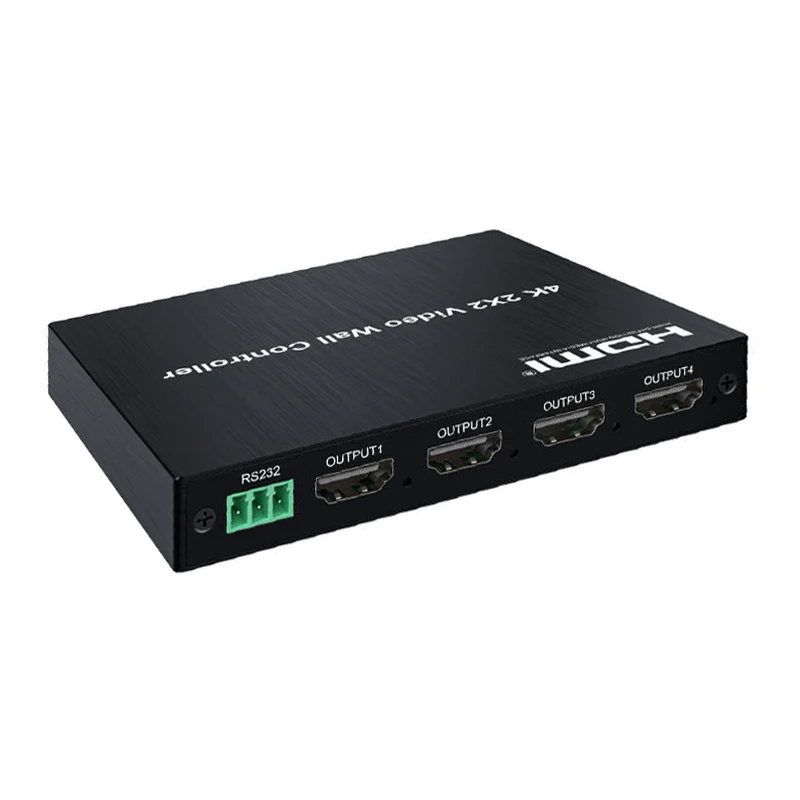

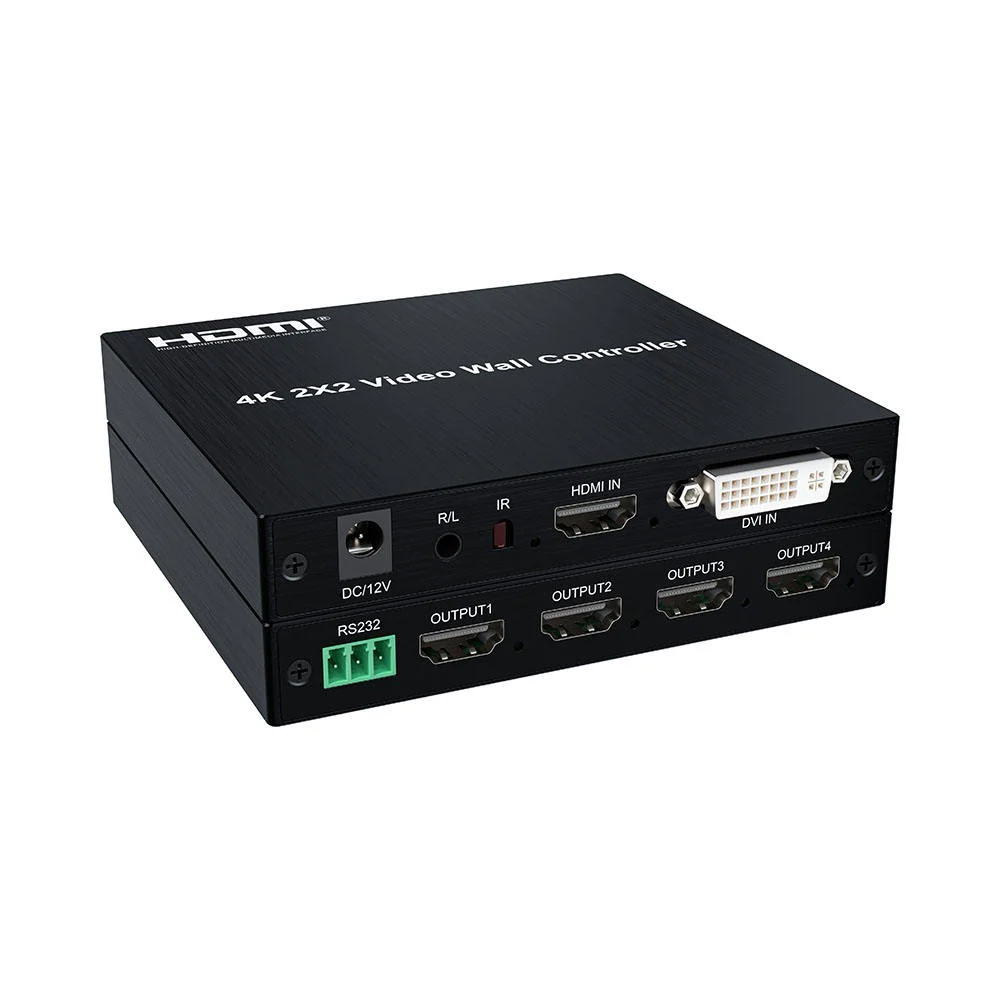

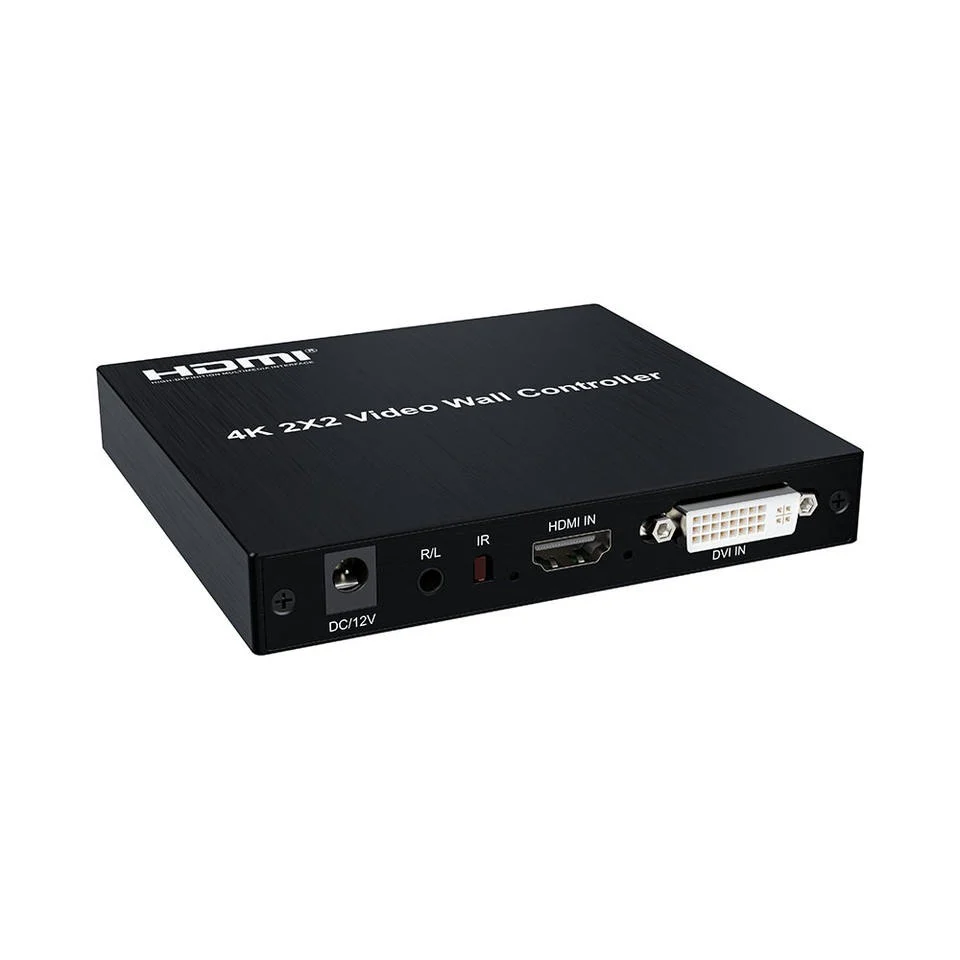

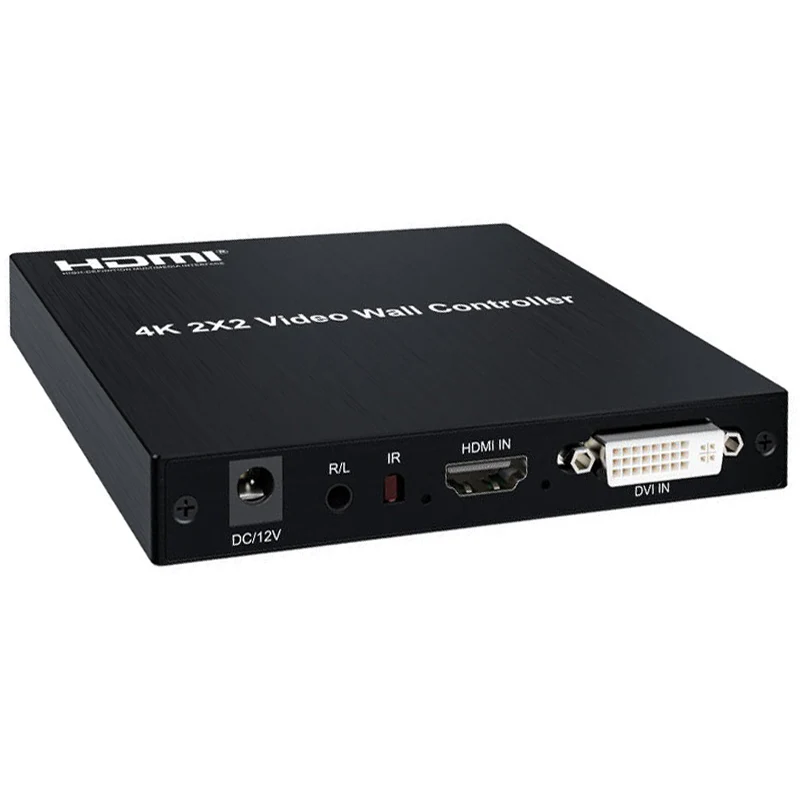

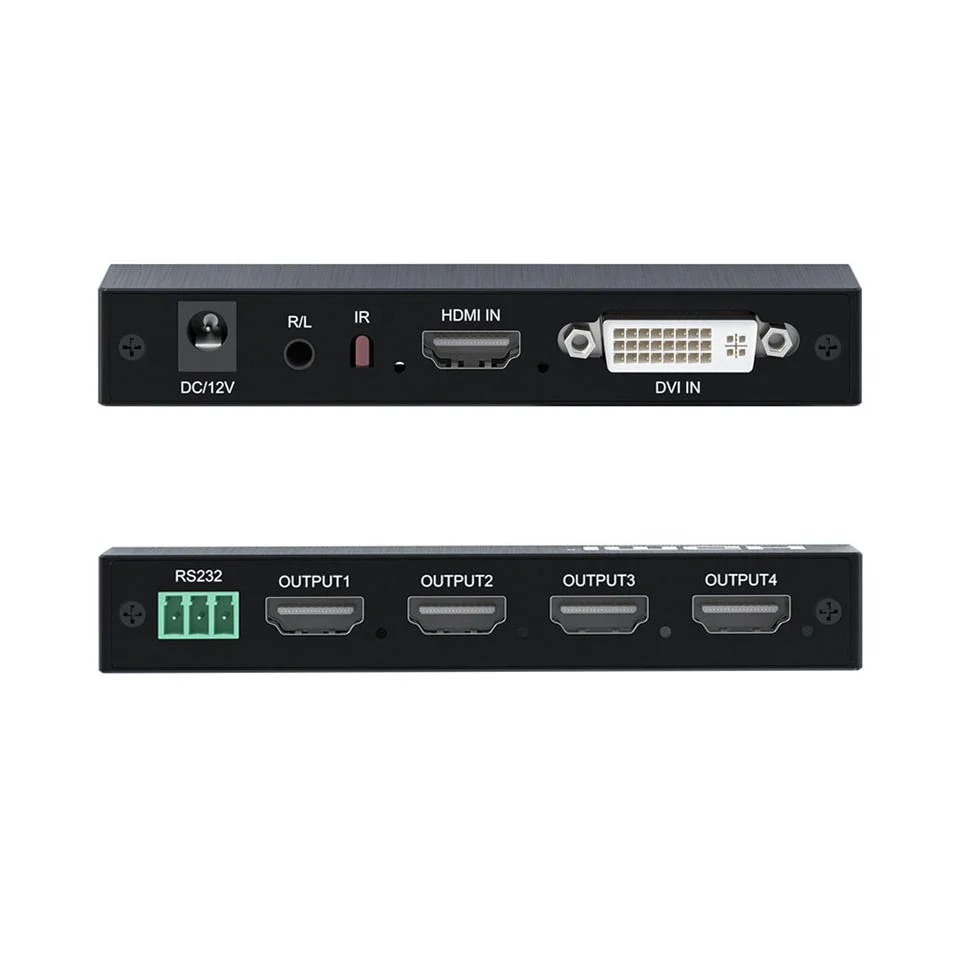

This 4K 2x2 video wall controller, support HDMI or DVI input and 4 HDMI output. The main function is to split a complete HDMI, or DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection unit, LCD TV, etc.).
Complete with 4 HDMI HD video display units to form a high dynamic range image wall.
Properties:
-
Support HDMI input;
-
Support 4 HDMI outputs;
-
Support multiple splicing modes, easy to operate, plug and play;
-
Support 8/10/12 bit deep color;
-
Support IR control.

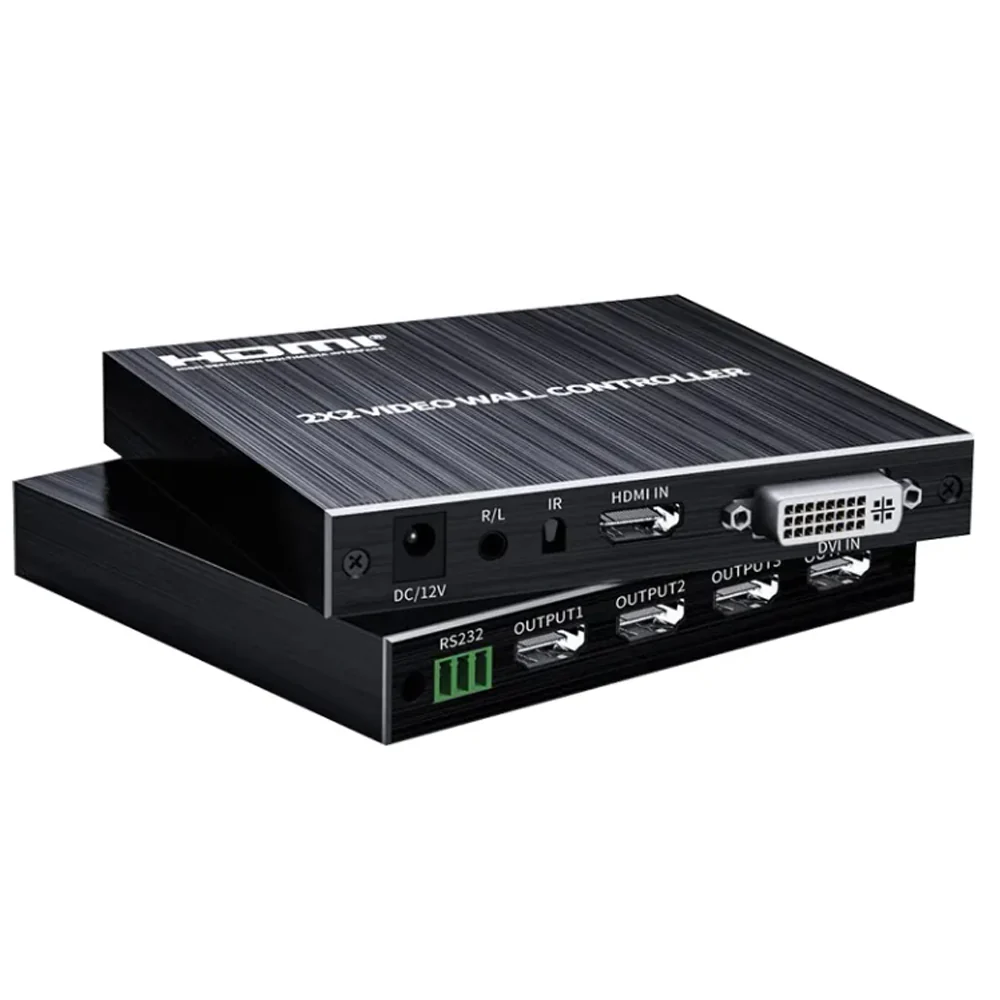

2x2 Video Wall Controller
Multi Screen Splicer Processor
This 1080P 2X2 video wall contorller, support HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display units to form a large dynamic image wall.
Features:
-
Support HDMI and DVI input;
-
Support 4 HDMI output;
-
Output support RGB 4:4:4;
-
Support input resolution 1080P/1080i/720P/576P/576i/480P;
-
Support output resolution 1080P/1080i/720P/576P/576i/480P;
-
Support RS232 control;
-
Support 2X2/1X2/2X1 splicing, easy operation, plug and play;
-
Support 2X2 automatic splicing function;
Specifications:
-
HDMI resolution the highest support: 1920x1080/60Hz
-
Support audio format: stereo
-
Input cable length: ≤5m AWG26 HDMI standard cable
-
Output cable length: ≤5M,AWG26 HDMI standard cable
-
Max working current: 300mA
-
Power adapter specifications input: AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A
-
Operating Temperature range: (-10℃~+45 °C)
-
Dimension: (L x W x H) 121 * 119 * 19(mm)
-
Weight: 228g
