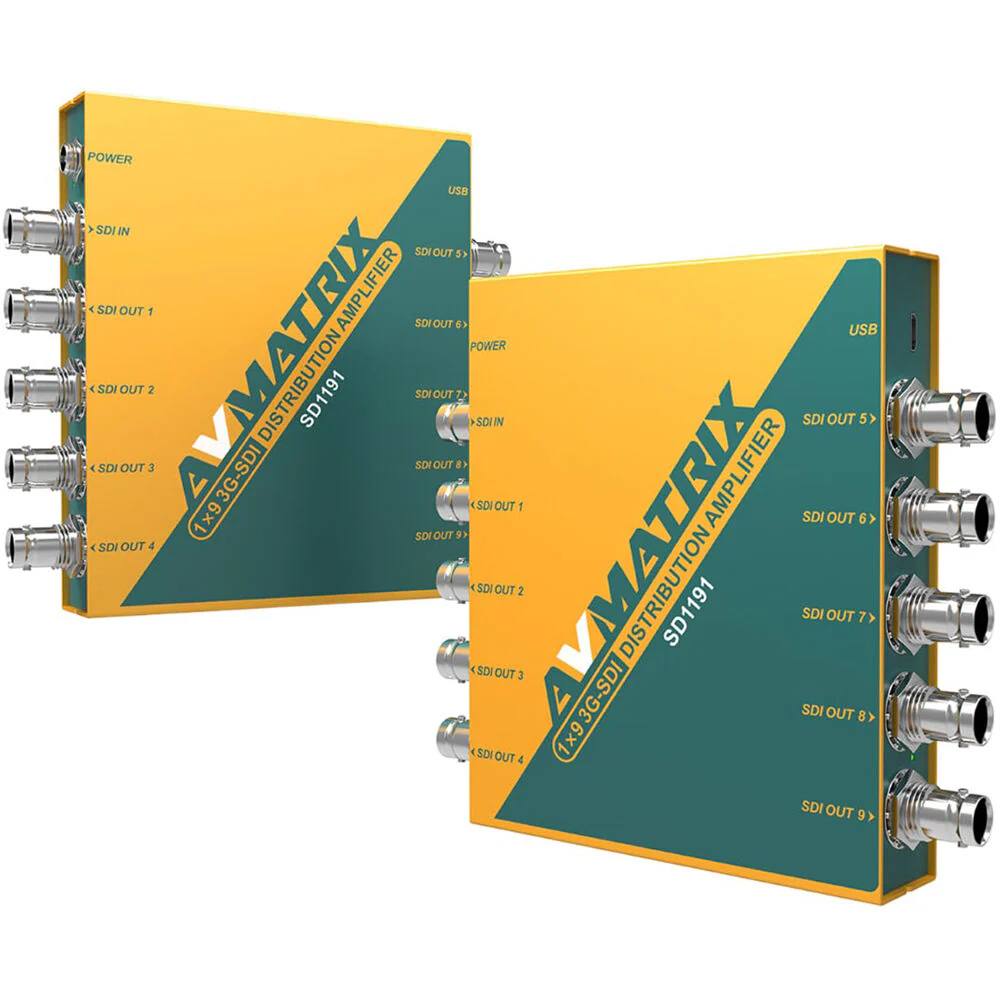

AVMatrix SD1191 1×9 SDI Reclocking Distribution Amplifier with 3G/HD/SD-SDI Multi-rate Signal Processing, 9 Buffered and Re-clocked Outputs, Support DVB-ASI Signals, LED Indicators, Locking Power Supply, and Mounting Ear

AVMatrix SD1191 1×9 SDI Reclocking Distribution Amplifier with 3G/HD/SD-SDI Multi-rate Signal Processing, 9 Buffered and Re-clocked Outputs, Support DVB-ASI Signals, LED Indicators, Locking Power Supply, and Mounting Ear

 SD1191

1×9 SDI Reclocking Distribution Amplifier



The SD1191 is a miniature 1×9 3G/HD/3G-SDI re-clocking distribution amplifier. The SD/HD/3G-SDI input signal is automatically detected. It features cable equalization and re-clocking techniques that enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.

Specifications

  • SDI Video Input: 1xSD/HD/3G-SDI(75Ω BNC)
  • SDI Video Output: 9xSD/HD/3G-SDI/ASI (75Ω BNC)
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • Power Supply: Threaded locking DC connector
  • Voltage Range: DC 5V to 17V
  • Power Consumption: 5W
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -30°C to 70°C
  • Dimensions 4.94" x 4.09" x 0.96"
  • Weight: 1.32 pounds



$56.15

Original: $160.42

-65%
AVMatrix SD1191 1×9 SDI Reclocking Distribution Amplifier with 3G/HD/SD-SDI Multi-rate Signal Processing, 9 Buffered and Re-clocked Outputs, Support DVB-ASI Signals, LED Indicators, Locking Power Supply, and Mounting Ear—

$160.42

$56.15

Product Information

Shipping & Returns

Description

 SD1191

1×9 SDI Reclocking Distribution Amplifier



The SD1191 is a miniature 1×9 3G/HD/3G-SDI re-clocking distribution amplifier. The SD/HD/3G-SDI input signal is automatically detected. It features cable equalization and re-clocking techniques that enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.

Specifications

  • SDI Video Input: 1xSD/HD/3G-SDI(75Ω BNC)
  • SDI Video Output: 9xSD/HD/3G-SDI/ASI (75Ω BNC)
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • Power Supply: Threaded locking DC connector
  • Voltage Range: DC 5V to 17V
  • Power Consumption: 5W
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -30°C to 70°C
  • Dimensions 4.94" x 4.09" x 0.96"
  • Weight: 1.32 pounds
