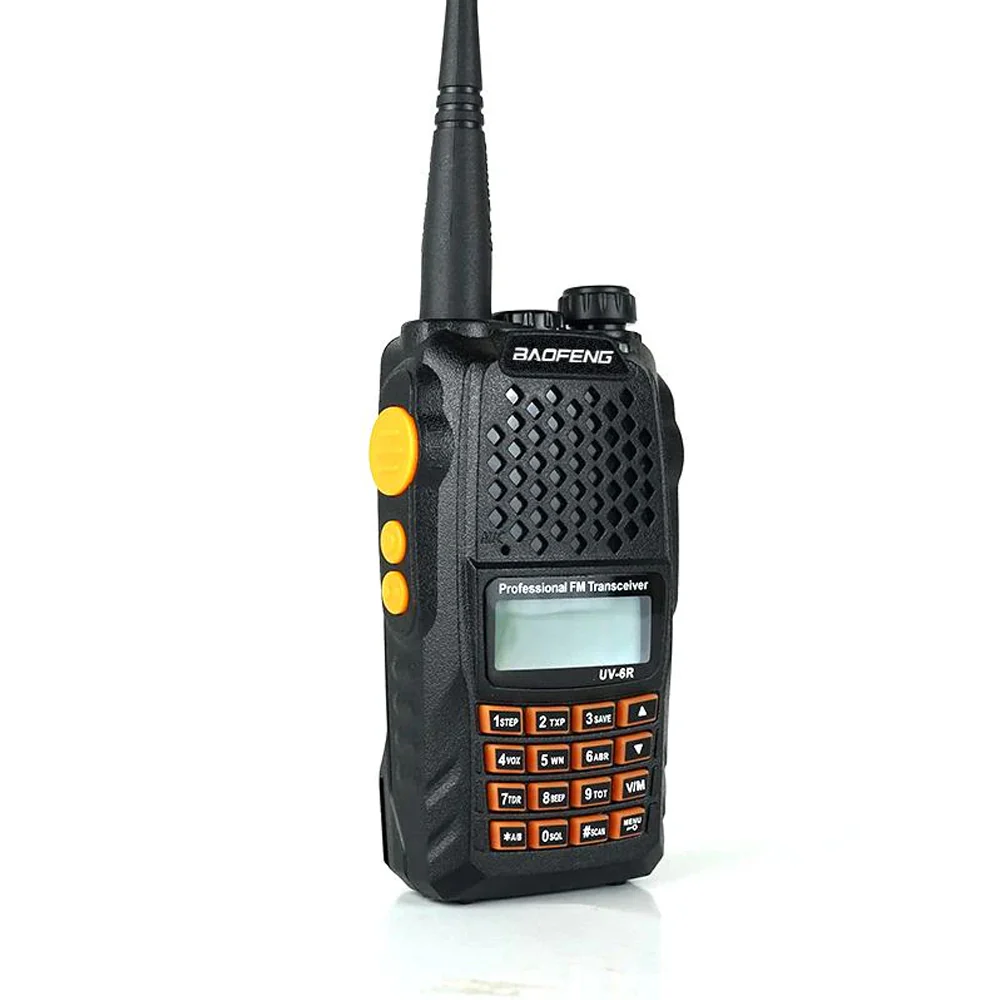

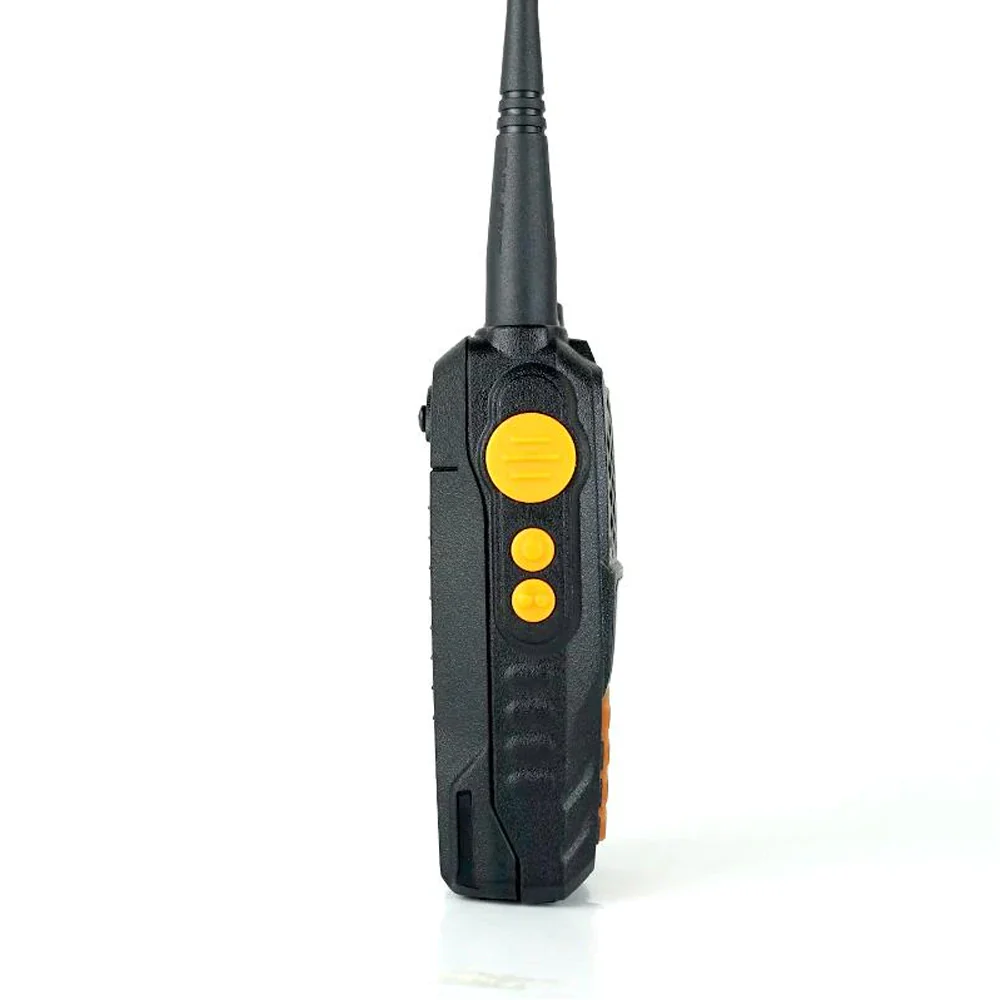

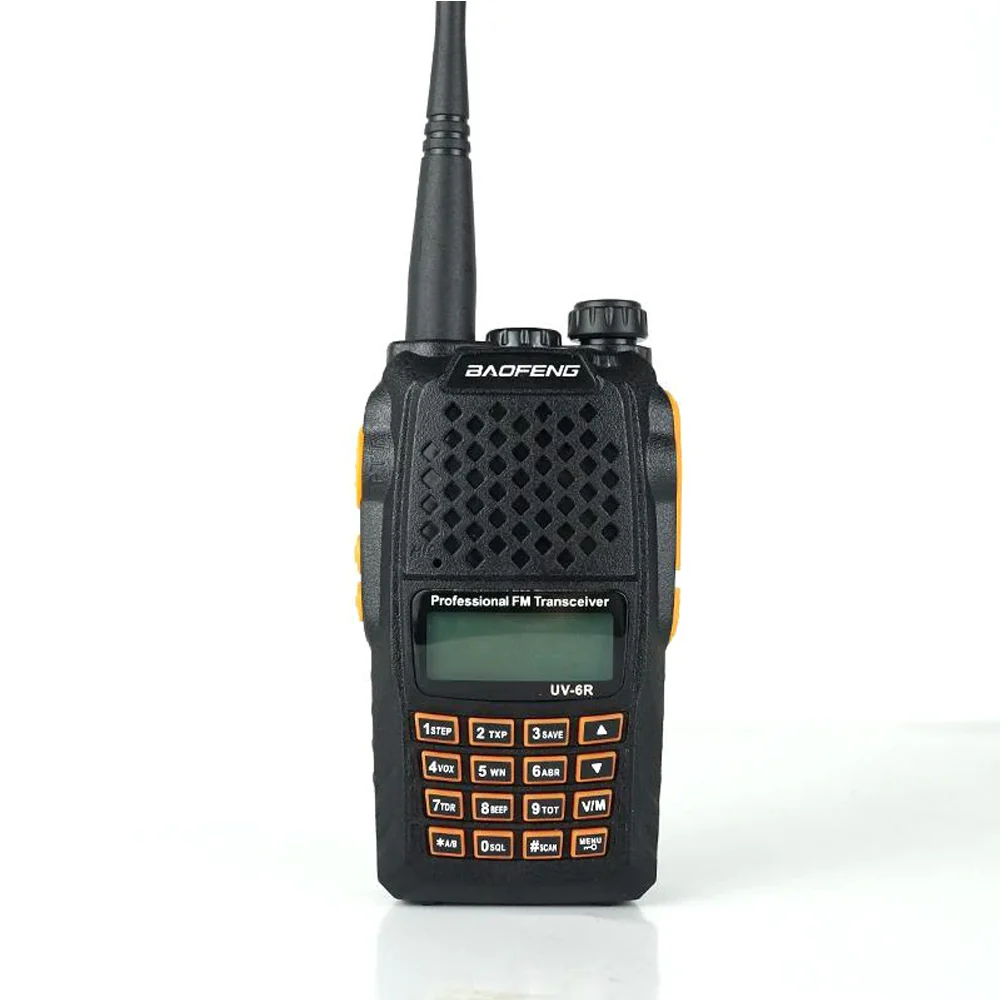

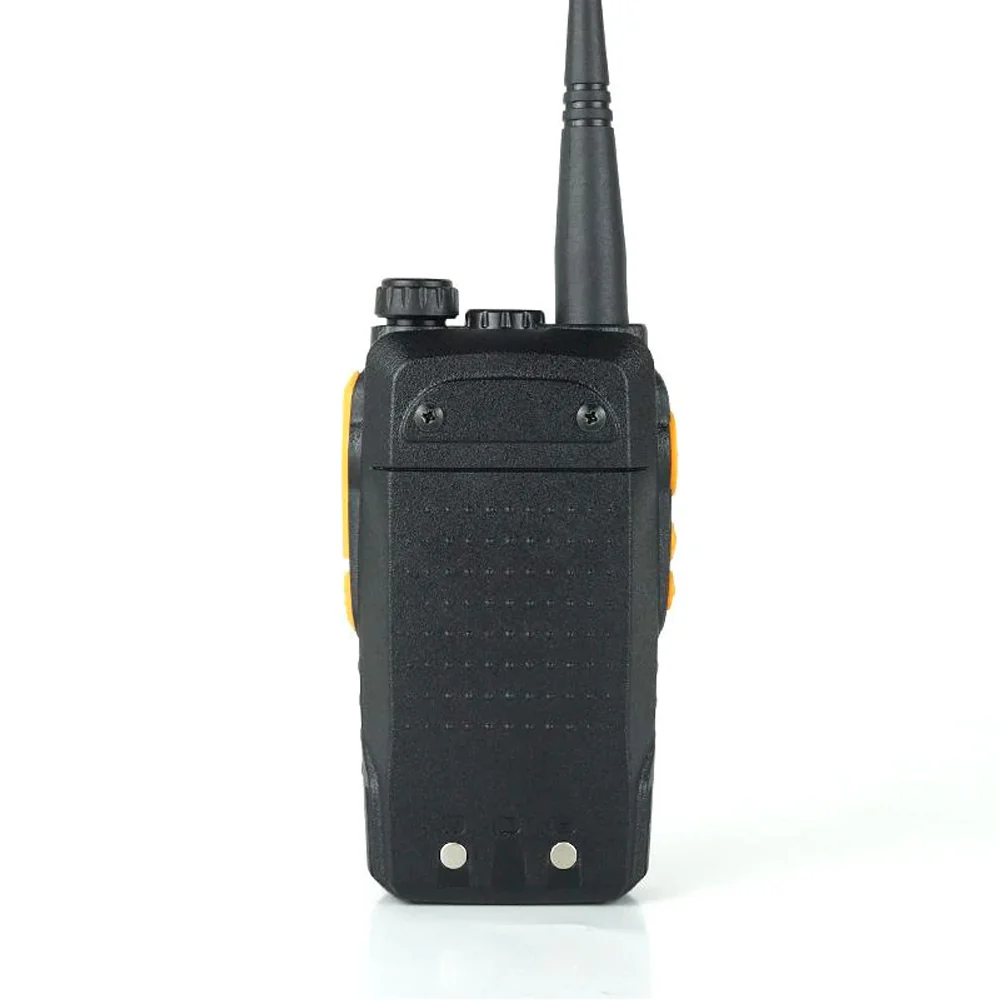

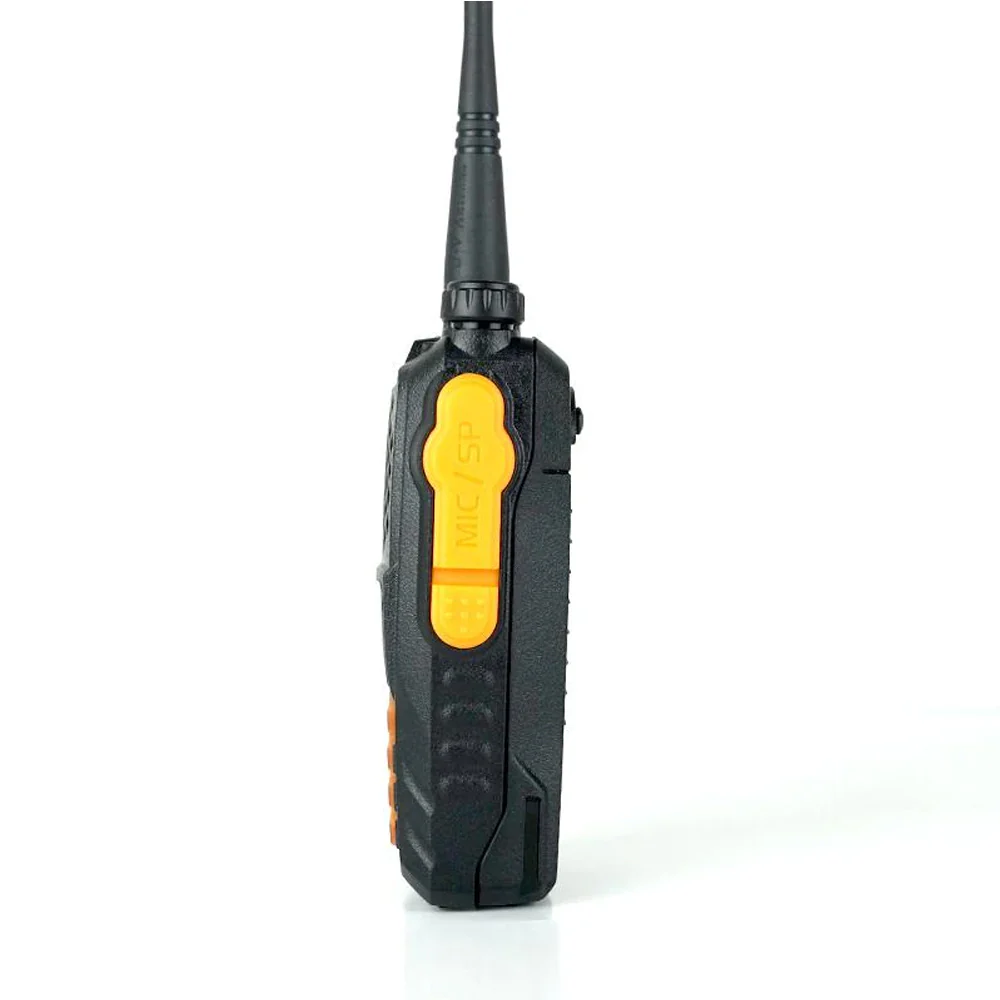

BaoFeng UV-6R (Set of 5/6/7/8/9/10) Walkie-Talkie Dual-Band VHF/UHF Transceiver 5W PC Programmable Two-Way Radio with 128 Store Channels, 144-148/420-450MHz Frequency Range, 5km Max. Talking Range, Clear Voice Output

Description:

General:

VHF 144-148MHz & UHF 420-450MHz

Memory channels Up to 128 channels

Frequency stability 2.5ppm.

Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/20/kHz/25kHz.

Antenna impedance 50Ω.

Operating temperature -20℃to +60℃

Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800.

Consumption in reception 380mA

Consumption in transmission ≤1.4 A.

Mode of operation Simplex or semi-duplex.

Duty cycle 03/03/54 min. (Rx / Tx / Standby).

Dimensions 58mm x 110mm x 32mm

Weight 130 g (approximate).

Features:

• Frequency range: 136-174/400-480MHz
• Channel capacity: 16
• Frequency stability: ±2.5ppm
• working temperature: -20℃ ~ +60℃
• Antenna impedance: 50Ω
• Mode of Operation: Simplex
• Supply Voltage: 7.4V/1800
• Dimensions (L * w * h): 58mm x 110mm x 32mm
• Weight (with battery and antenna): 130g
• Battery: 2800mAh (Lithium ion battery)
• Receiving sensitivity: 0.2 V(12dB SINAD)
• Intermodulation: 60dB RF Power: <5W /1W
• Maximum deviation(W/N): 5KH/2.5KHz
• Spurious emission: <-60dB
• Adjacent channel power: -65dB/60dB
• SNR(W/N): 45dB/40dB
• QT/DQT(W/N): 0.7+0.1KHz/0.4+0.1KHz
• Modulation sensitivity: 8-12mV
• Audio Output: 1W
• Adjacent channel selectivity(W/N): 65dB/60dB
• Clutter suppresion: 65dB
• Receiver current: 380mA
• No FM Radio
