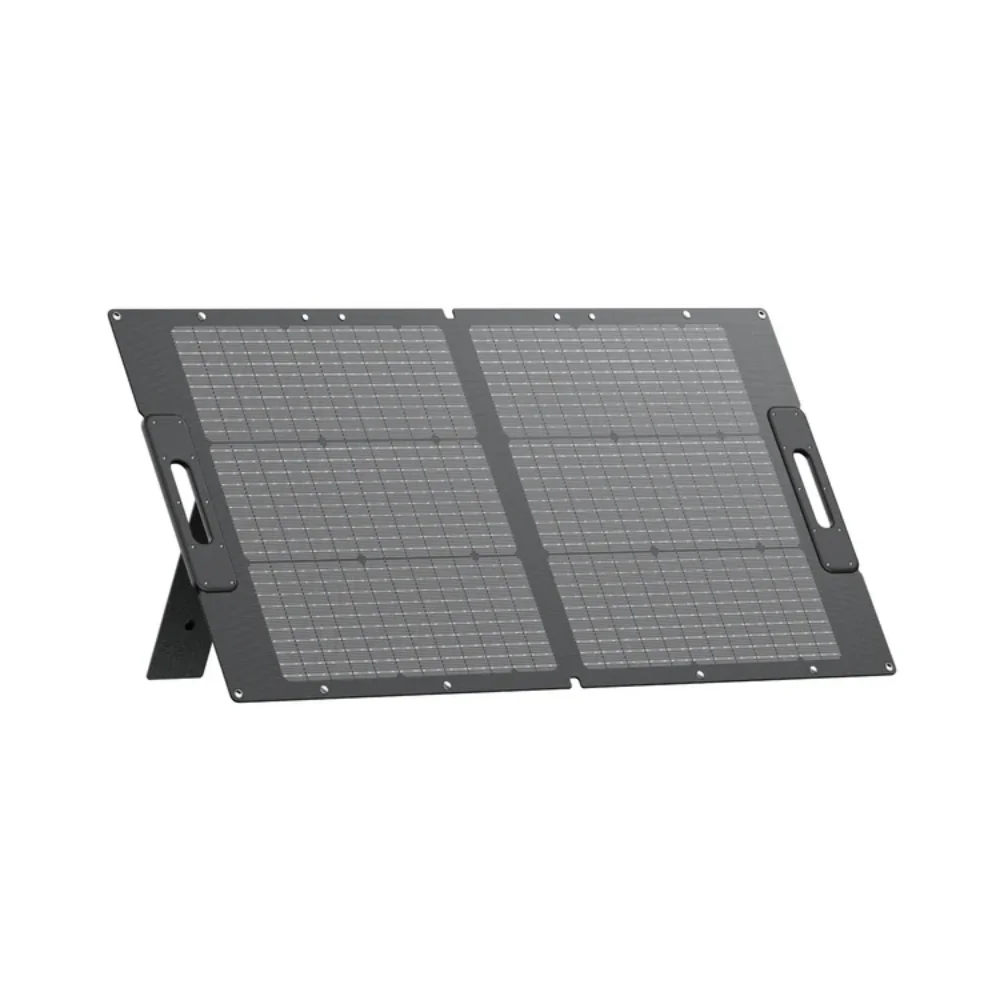

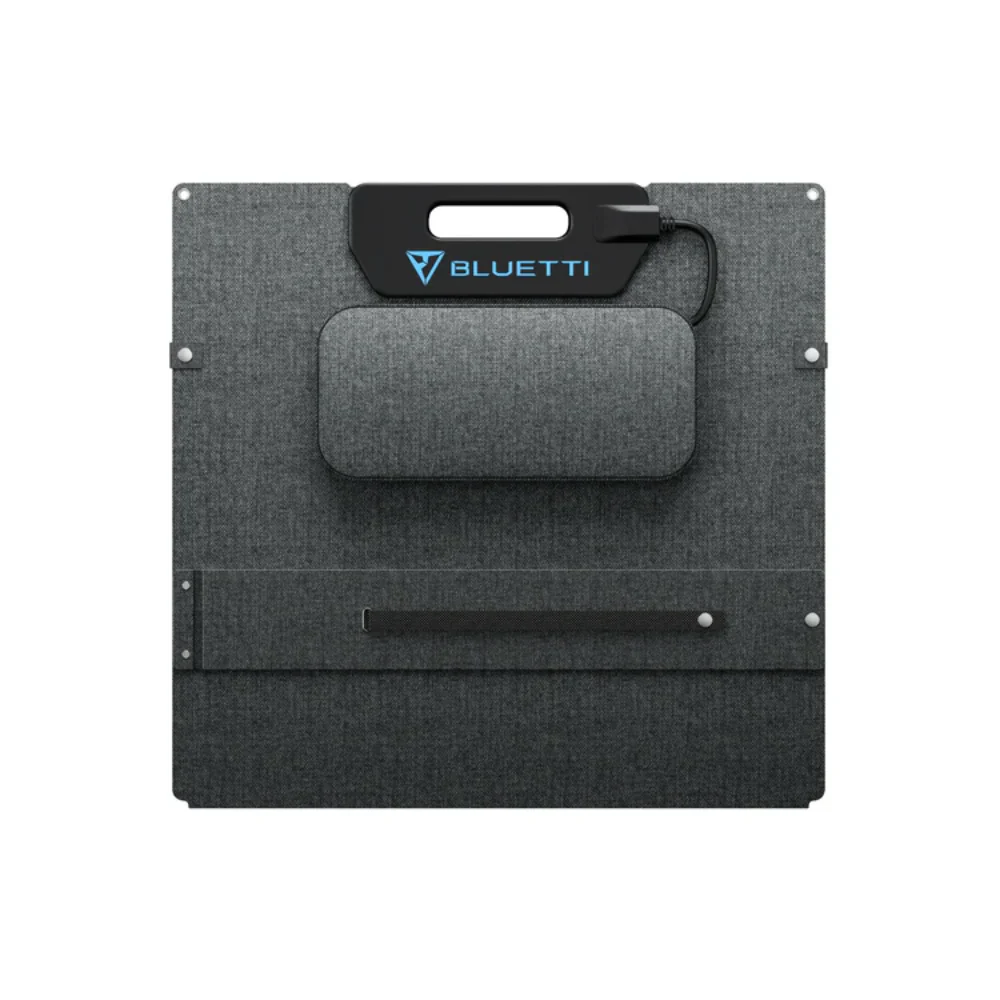

BLUETTI PV100

Overview

Superior Durability and Efficiency

Crafted with innovative ETFE coating, the PV100D offers unparalleled durability and UV resistance, extending its lifespan and ensuring optimal performance in all environments.

The monocrystalline solar cells allow up to 23.4% conversion efficiency, surpassing the industry average of 20% and maximizing solar energy utilization.

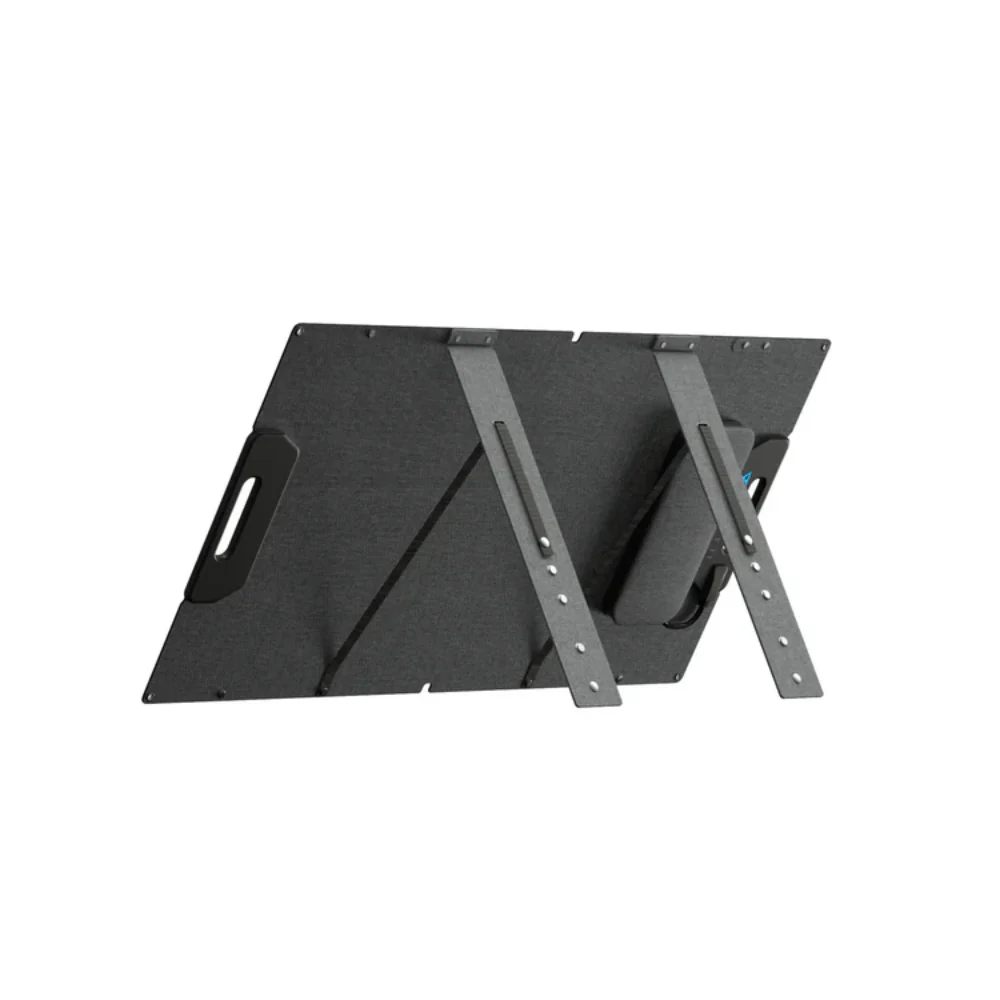

Easy Setup With Kickstand

Unfold the PV100D, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.

(The recharging time refers to 80% of power level being charged*)



Key Features

● 100W High Power Output – Efficient solar charging for your BLUETTI power stations.

● High Conversion Efficiency – Monocrystalline cells with up to 23.4% efficiency.

● Portable & Foldable Design – Easy to carry with 4-fold construction.

● Durable & Long-lasting – ETFE coating for better scratch and weather resistance.

● Wide Compatibility – Standard MC4 connector works with multiple BLUETTI models.



Specification

● Brand: BLUETTI

● Model: PV100

● Type: Foldable Solar Panel

● Power: 100W

● Lamination: ETFE (Ethylene tetrafluoroethylene)

● Cell Type: Monocrystalline Silicon

● Cell Efficiency: Up to 23.4%

● Voltage at Max Power (Vmp): 18.8V

● Current at Max Power (Imp): 5.3A

● Open Circuit Voltage (OCV): 23.7V

● Short Circuit Current (Isc): 5.8A

● Connector: Standard MC4 Connector

● Weight: 10,8lbs (4.9kg)

● Dimensions (Unfolded): 1135 × 600 × 4mm (44.6 × 23.4 × 0.8in)

● Dimensions (Folded): 595 × 565 × 35mm (23.4 × 22.3 × 1.4in)
