DESVIEW D21-HB MONITOR



Overview

Bright Multiview Monitoring

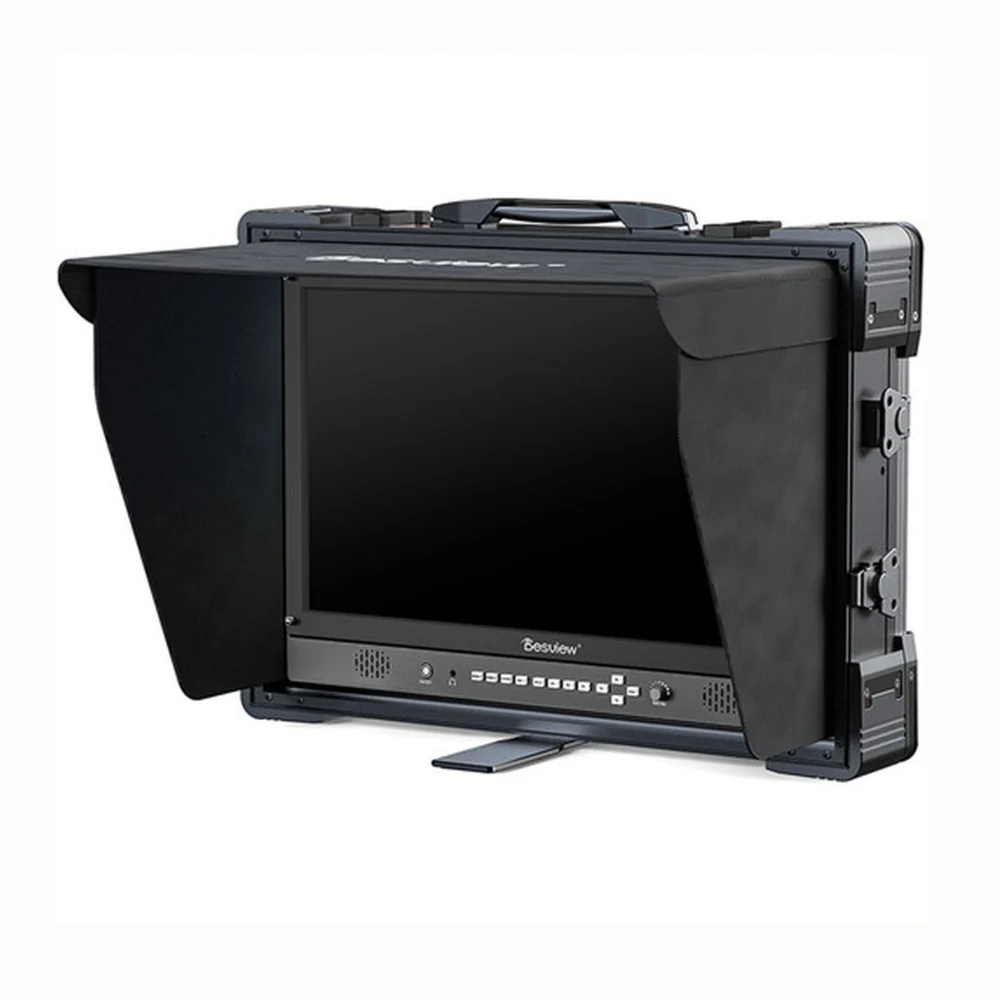

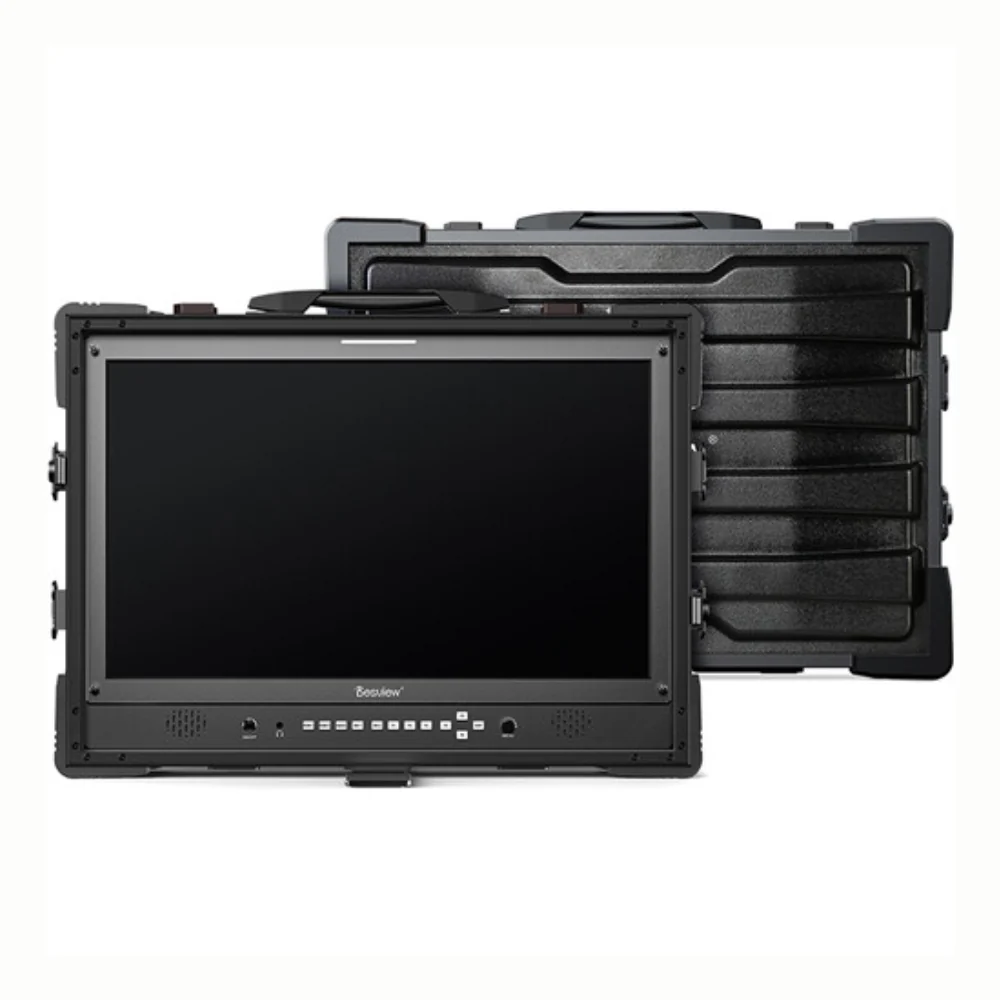

Bring bright, multiview monitoring to your set or location using the D21-HB 21.5" High-Bright Multiview Production Monitor with Case from Desview. Ideal for ENG, live broadcast, and mobile production, the D21-HB monitor provides 1000 cd/m² brightness, making it ideal for daylight viewing. It offers both horizontal and vertical multiview modes and PiP viewing. The D21-HB has both 3G-SDI and HDMI inputs and outputs, supports up to UHD 4K60 video input, and includes a protective aluminum case with corner bumpers.

High-Brightness Display

Offers 1000 cd/m² brightness for daylight viewing.

Features a 1920 x 1080 LCD with a contrast ratio of 1000:1.

Provides a wide 178° viewing angle both horizontally and vertically.

Up to UHD 4K60 Input

Supports multiple video formats up to UHD 4K60 via HDMI and 3G-SDI.

Three HDMI inputs and one HDMI output, two SDI inputs, and two SDI outputs.



Key Features

• 1920 x 1080 Display, up to 4K60 Input
• 1350 cd/m² Brightness, 1000:1 Contrast
• Horizontal/Vertical Multiview Modes, PiP
• 3 x HDMI In, 1 x Out | 2 x 3G-SDI In/Out
• DCI-P3 Color, 178° H/V Viewing Angle
• Built-In & Custom 3D LUT Importing
• Protective Aluminum Case, Corner Bumpers
• HDMI & SDI Waveform Monitoring
• Focus Peaking, False Color & Image Tools
• AC, 4-Pin XLR, V-Mount Battery Power
• 60 Frames per second

Specification

● Screen Display

● Display screen size: 21.5 Inch

● Display screen division rate: 1920*1080

● Point distance: 0.08265(H)mm x 0.24795(V)mm

● Show the ratio: 16: 9

● Brightness: 1000Nits

● Contrast: 1000: 1

● Backlight source: LED

● Dark colour: 8+2bit

● Number of colours: 1670ten thousand

● Perspectives: 178° H/178°V; 89°/89° (L/R)89°/89° (U/D)

● Pixel density: 102 PPI

● Refresh rate: 60Hz

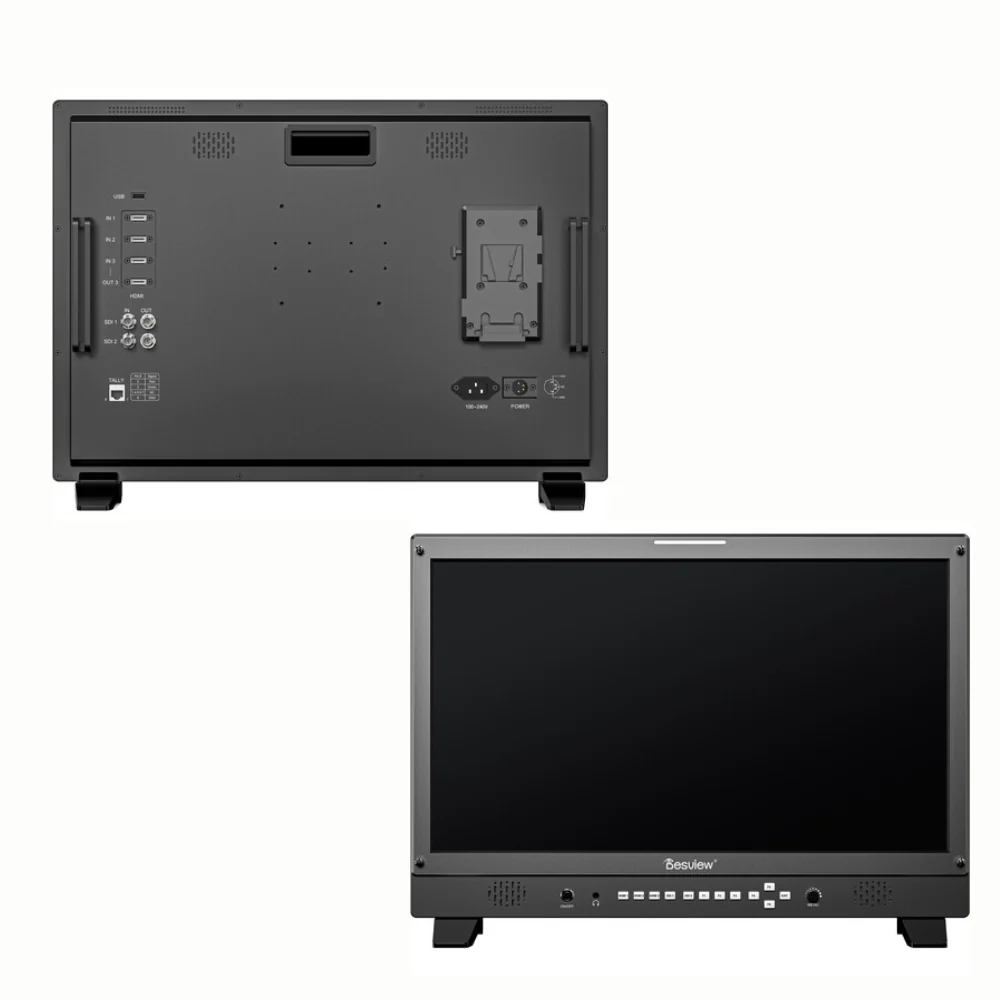

Port

● USB: Software upgrade

● HDMI IN1: Support 4K@60Hz and below input

● HDMI IN2: Support 4K@60Hz and below input

● HDMI IN3: Support 4K@60Hz and below input

● HDMI OUT3: Ring out the signal input by HDMI IN3

● SDI IN1: 3G-SDI supports 1080@60Hz and below signal input

● SDI IN2: 3G-SDI supports 1080@60Hz and below signal input

● SDI OUT1: Ring SDIN1 input signal

● SDI OUT2: Ring SDIN2 input signal

● Tally: Control the display of the monitor signal light

● AC Power Supply: Character interface, AC220V-240V

● Air plug: DC12V

● V-port battery buckle plate: V-port battery power supply

● Trumpet: Built-in8Q3W dual speakers

Button

● Power Switch: ON/OFF, power switch

● button, red light for power on Earphone: 3.5mm, stereo headphone jack

● HDMI 1, 2, 3: HDMI signal switching

● SDI 1, 2: SDI signal switching

● Customised key Fl: Be silent

● Customised key F2: Picture-in-picture

● Customised key F3:2 pictures

● Customised key F4:3 picture

● Customised key F5: 4 pictures

● Customised key F6:Turn the screen

● EXIT: Exit the key and display the input signal source

● MENU: Menu wave wheel (when there is no menu display, it fluctuates to the right to adjust the volume

Function

● Input Settings

● Multi-Window: Off, PIP Mode, PBP 2Win, PBP 3Win, PBP 4Win

● Main Win input: SDI1, SDI2, HDMI1, HDMI2, HDMI3

● Sub Wing input

● Sub Win3 input

● Sub Win4 input

● PIP Size: Small, Medium and Large

● PIP Position: Top Right, Top Left, Bottom Right, Bottom Left

● PIP Swap

● Exit

Assistant Function

● Single Color: Off, Red, Green, Blue, Gray

● Safe Area: Off, 80%, 85%, 90%, 93%, 95%

● Center Marker: Off,On

● Mark Ratio: Off, 4:3, 16:9, 16:10, 1.85:1, 2.35:1, 2.40:1

● Mark ratio transparency: Off, Low, High

● Marker Color: Red, Green, Blue, White, Gray

● Grid Lines: Off, 2×2, 3×3, 4×4, 5×5, 6×6, 7×7, 8×8

● Grid Line Color: Red, Green, Blue, White, Gray

● Exit

Wavestorm Setting

● Transparency: 0-3

● False Color: Off, Arri, Spectrum

● Peaking: Off, Weak, Average, Strong

● Zebra: 0-100

● Histogram: Off, Brightness, RGB

● Waveform: Off, Brightness, RGB

● Vectorscope: Off, On

● All wave: Off, On

● Exit

Color Setting

● WT: Off\Rec709\DCIPMT.2020\BMD Film 4K\Canon C-Log DJID-LogWanasonic Cine-D\ Panasonic V-Log

● HDR: Off\ HLG Rec709\HLGDCI-P3\HLGBT.2020WQ

● Color Temp: 5600K, 6500K, 9300K, User

● Brightness: 0-100

● Contrast: 0-100

● Hue:0-100

● Saturation: 0-100

● Sharpness: 0-100

● Exit

Hotkey Setting

● Fl: Custom

● F2: Custom

● F3: Custom

● F4: Custom

● F5: Custom

● F6: Custom

● Exit

Sound Settings

● Audio Metre: Off, 2, 8,16

● Be Silent: On, Off

● Volume: 0-100

● Audio Source: HDMI1, HDMI2, HDMI3, SDI1, SDI2

● Exit



System Setting

● Language: English, Simplified Chinese, Korean, German, Spanish Japanese, Frenchltalian, Russian

● OSD Position: Top Left, Bottom Left, Centre, Top Right, Bottom Right

● OSD Transparency: 0-100

● OSD Time Out: 0-100

● OSD Rotation: 0, 90,180, 270

● Backlight: 0-100

● USB Updata FW

● Reset

● Exit
