Key Features:
- 4D joystick PTZ control (pan / tilt / zoom / focus)
- Multi-protocol support: ONVIF, IP VISCA, VISCA, Pelco-D/P
- NDI protocol support (KBC20N)
- Controls up to 255 PTZ cameras with 255 presets
- PoE power + RJ45 / RS232 / RS422 / RS485 interfaces
- LCD status display + web-based configuration

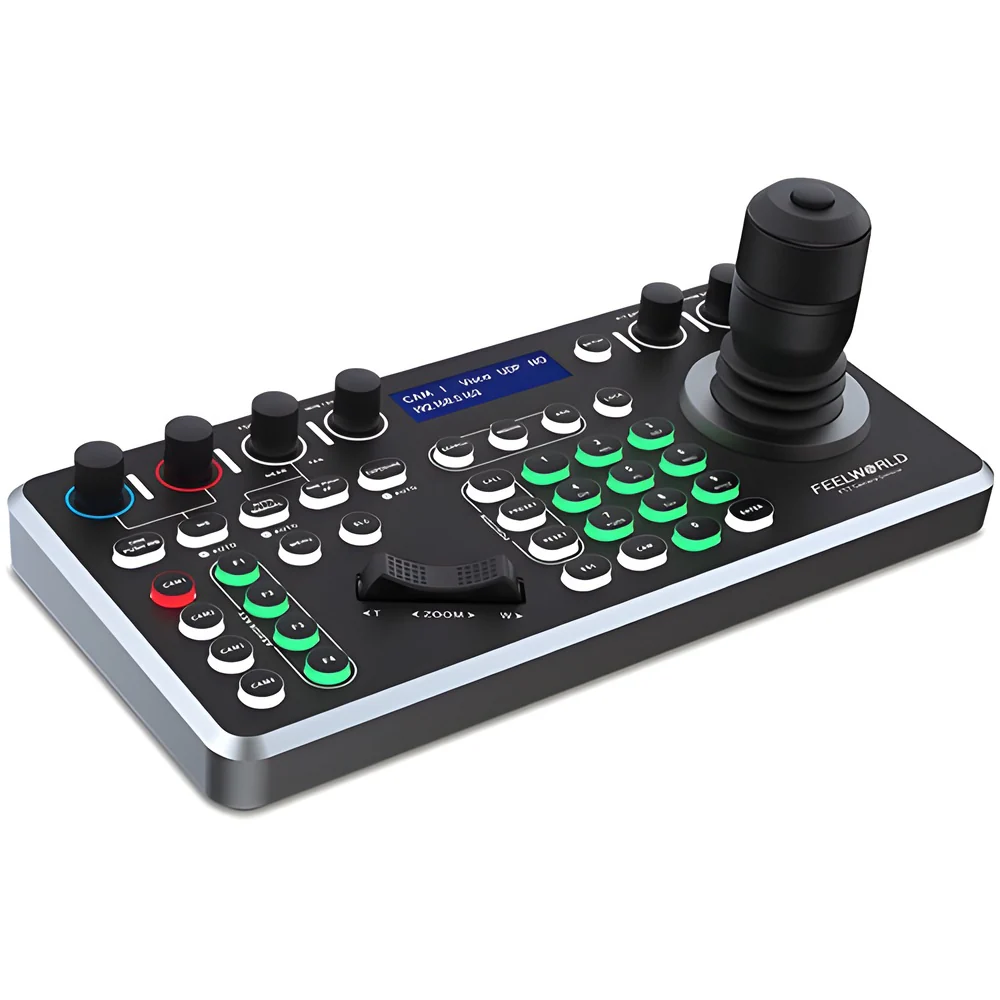

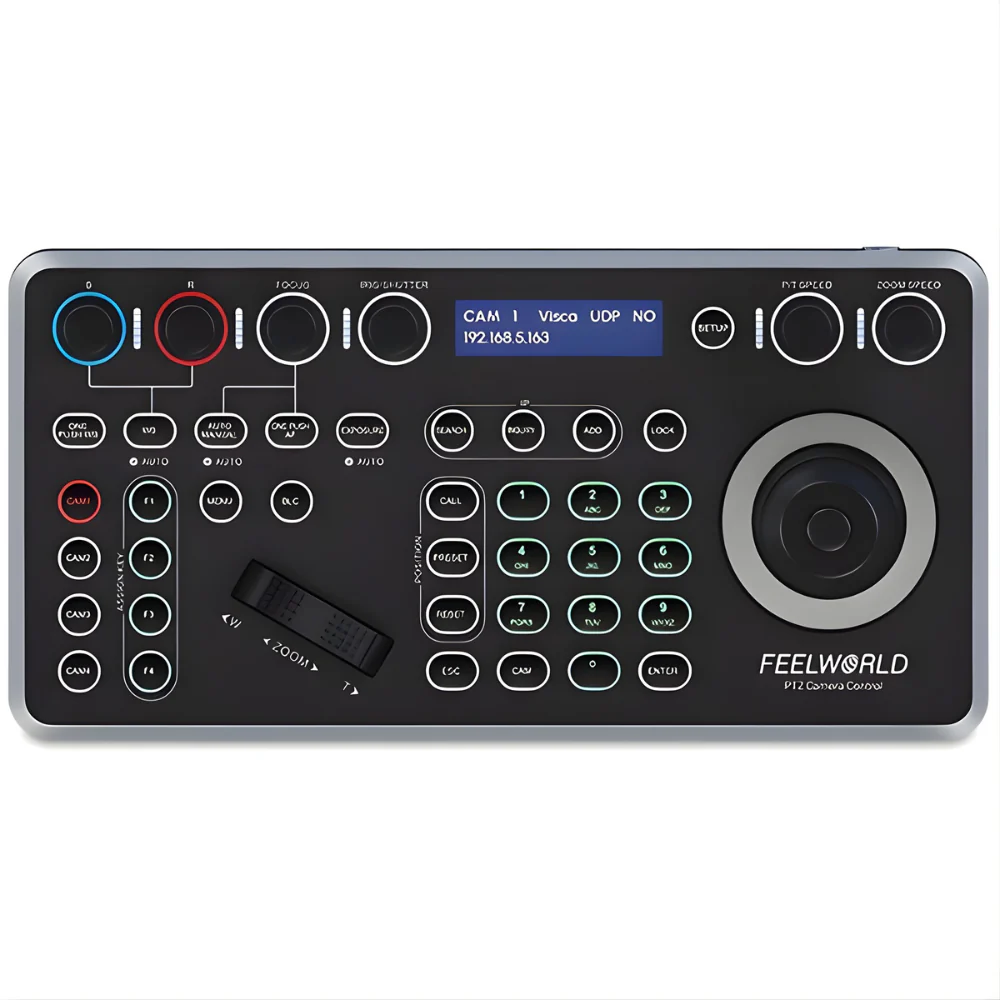

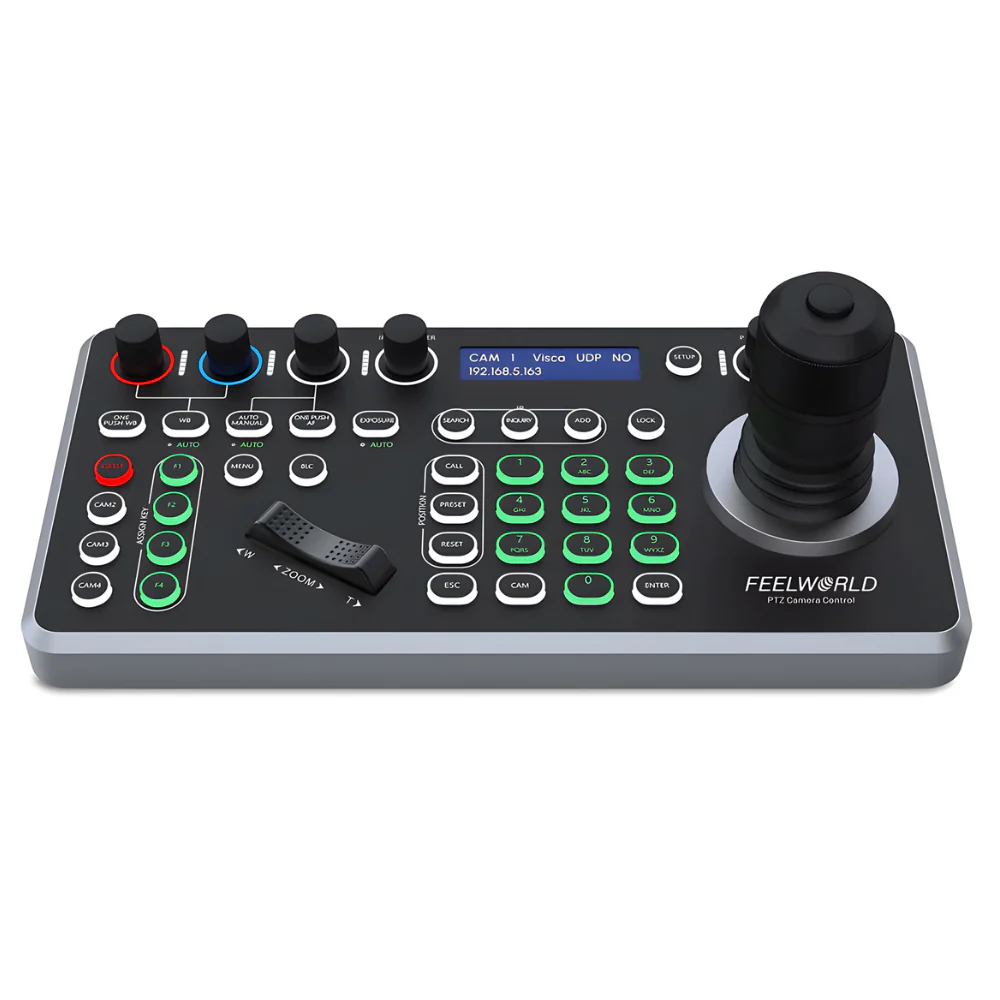

The FEELWORLD KBC20 and FEELWORLD KBC20N are professional PTZ camera controllers designed for live streaming, broadcasting, video conferencing, and multi-camera production environments, offering precise control through a responsive 4D joystick for smooth pan, tilt, zoom, focus, and iris adjustments. Both models support widely used control protocols such as ONVIF, IP VISCA, VISCA, and Pelco-D/P, allowing seamless compatibility with a wide range of PTZ cameras and enabling control of up to 255 cameras with up to 255 preset positions for efficient workflow management. They feature intuitive control panels, LCD status displays, PoE (Power over Ethernet) support, and multiple connectivity options including IP and serial interfaces (RS232/RS422/RS485). The key difference is that the KBC20N includes built-in NDI support, making it ideal for IP-based production systems that require low-latency network video integration, while the KBC20 remains a reliable and flexible solution for standard PTZ control setups.
Specifications
Brand: FEELWORLD
Model: KBC20 | KBC20N
Control Protocols: ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P, NDI (KBC20N)
Interfaces: 1× RJ45 LAN, RS232 / RS422 / RS485, 1× TALLY/Contact terminal
Joystick: 4-dimension control
Display: LCD
Power Input: DC 12V
Power Consumption: ≤0.6 W
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 50°C
What's in the box?
without NDI
1× KBC20 PTZ Joystick Controller
2× Power Adapter
1× RS45-DIN8 Cable
1× Manual
with NDI
1× KBC20 NDI PTZ Joystick Controller
2× Power Adapter
1× RS45-DIN8 Cable
1× Manual
