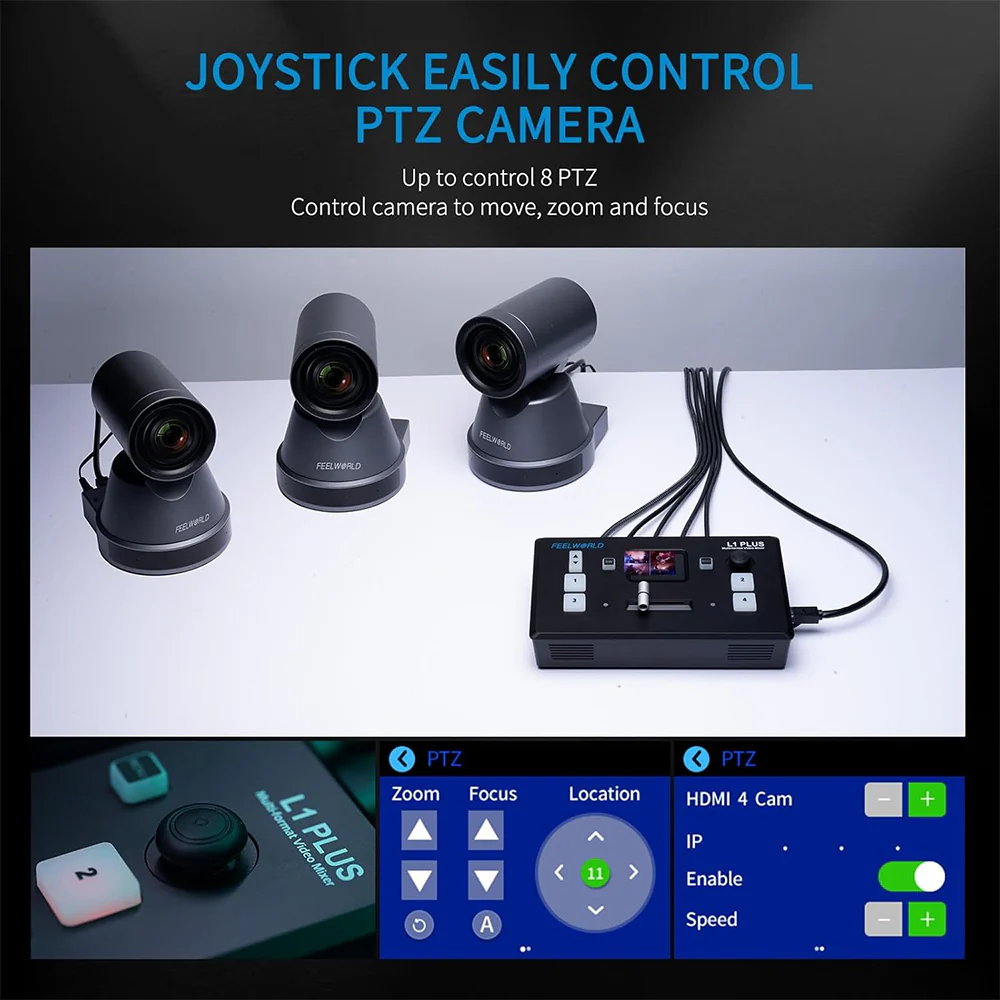

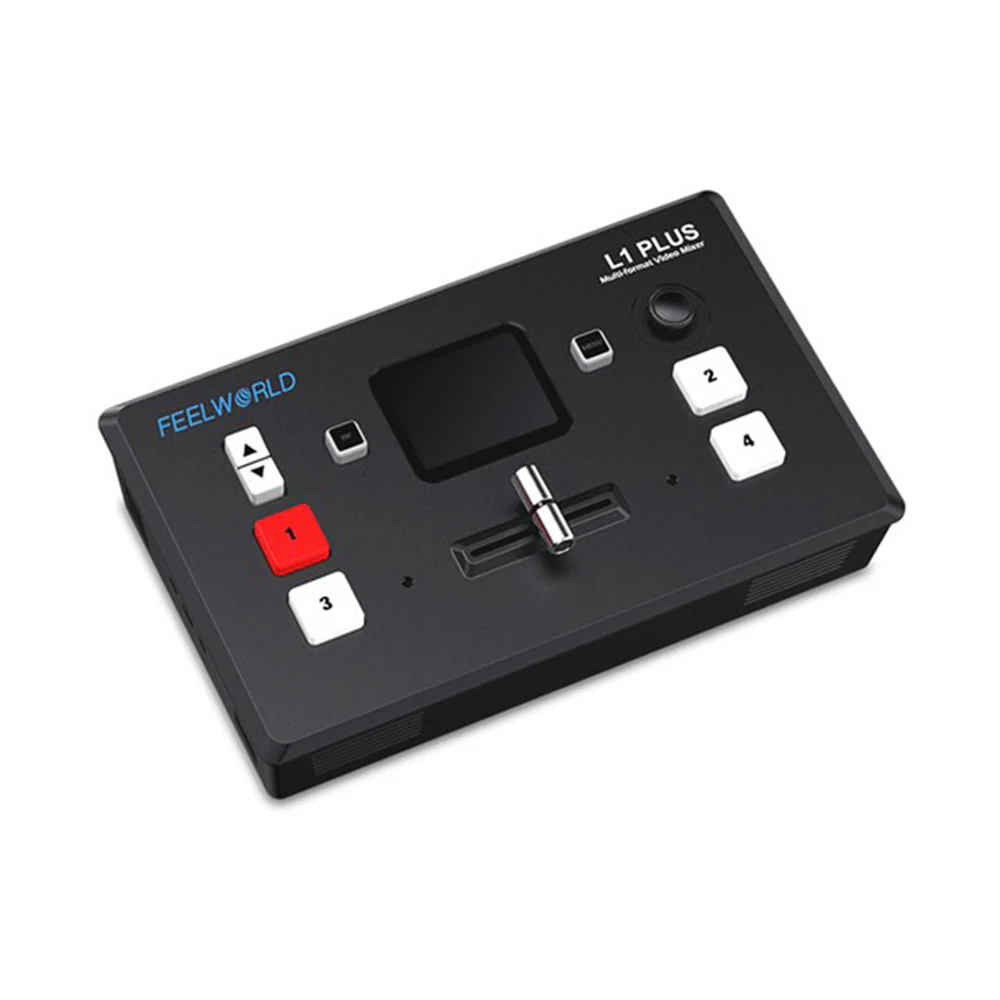

FEELWORLD L1 PLUS Multi-Camera Video Mixer Switcher with 4 HDMI Inputs, 4K 60Hz Support, 2" Touch Screen, PTZ Camera Joystick Control, USB 3.0 Interface, Audio Port, and RJ45 LAN Connection for Live Streaming, Broadcast, and Conferencing
FEELWORLDΒ L1Β PLUS
Β

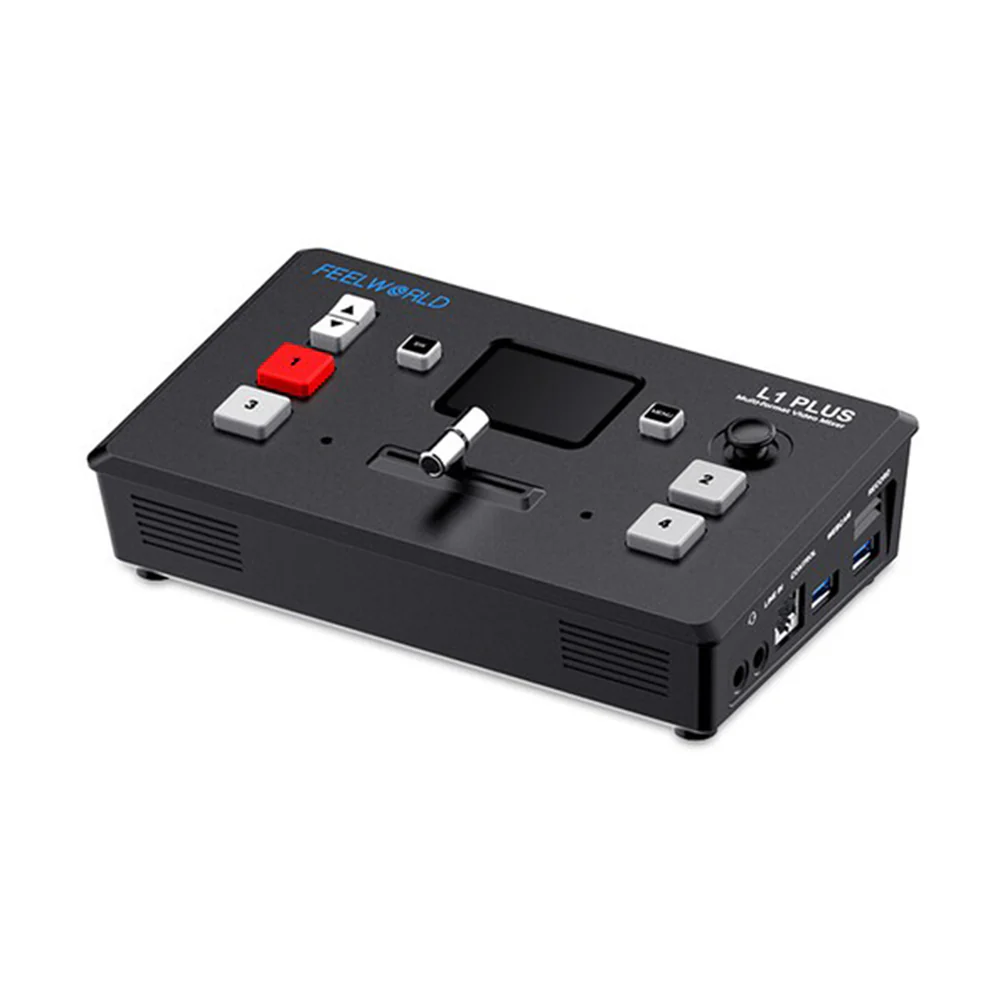

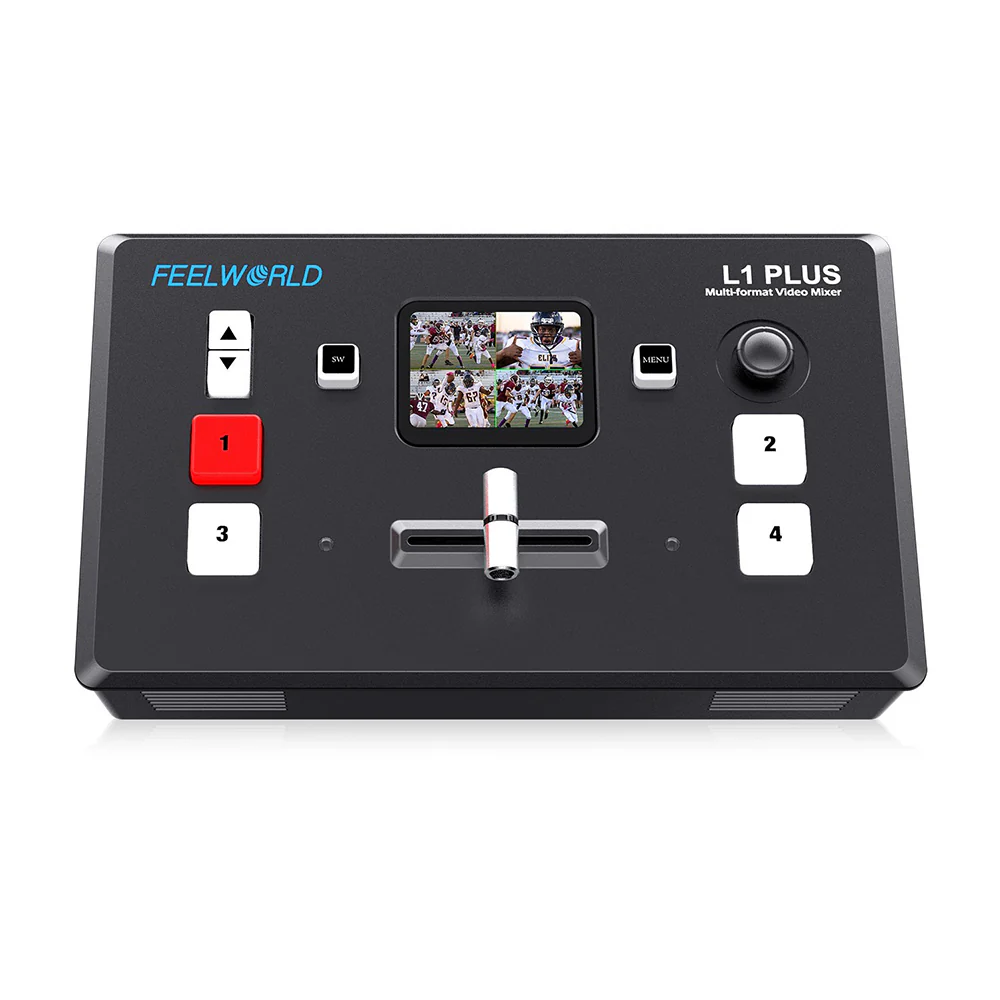

The FeelWorld L1 PLUS V2 Multi-Camera Video Mixer/Switcher is a multi-format live streaming mini switcher designed as an affordable solution for direct or remote single-user operation. It supports up to four DCI/UHD 4K HDMI sources, including PTZ cameras, gaming systems, laptops, and desktops to add PowerPoint slides, video clips, and web pages. The L1 PLUS V2 can be used for all types of online productions, training projects, and live events.
Β
Β
Specifications:
EffectΒ Types:Β ChromaΒ Key,Β LumaΒ Key
AudioΒ Mixing:Β 2-ChannelΒ Mixing

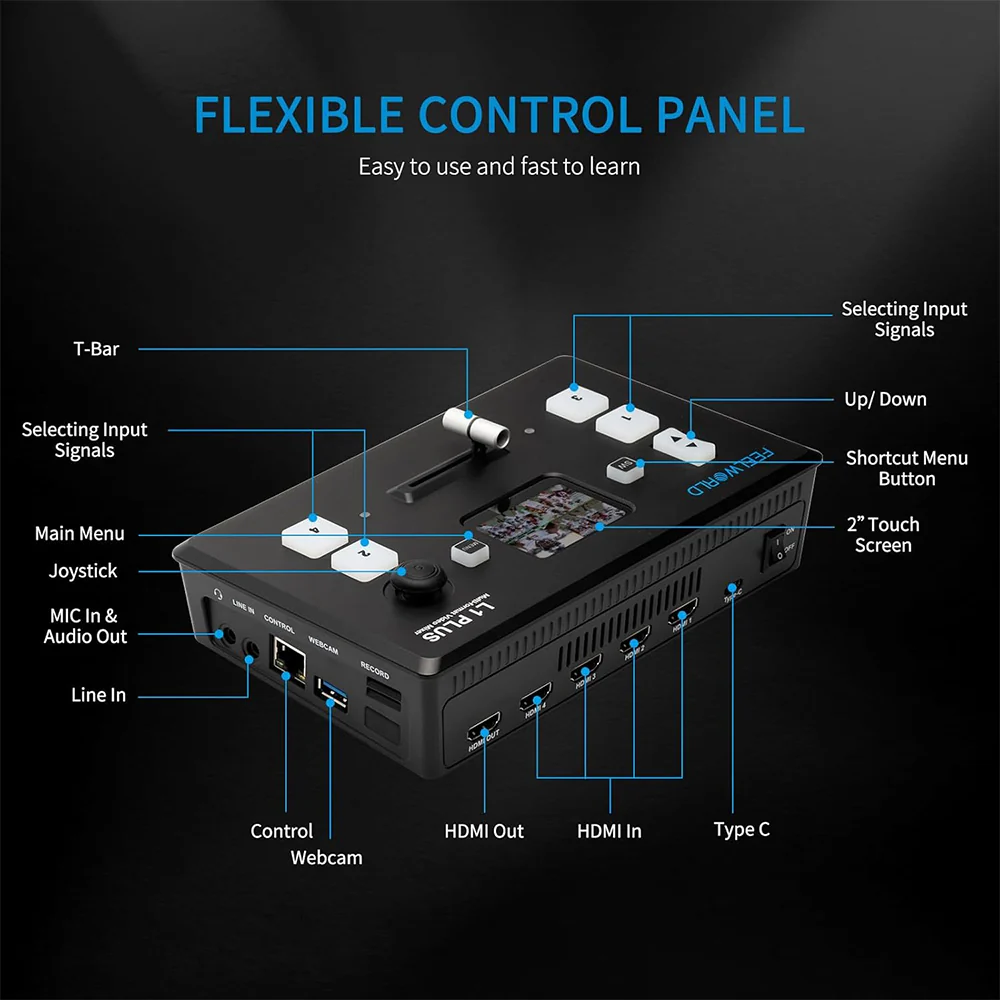

SwitchingΒ Type:Β Pushbutton,Β Software,Β T-Bar
Latency:Β 4Β Frames
ProcessingΒ Resolution:Β 1080pΒ atΒ 60
NumberΒ ofΒ VideoΒ InputΒ Sources:Β 4

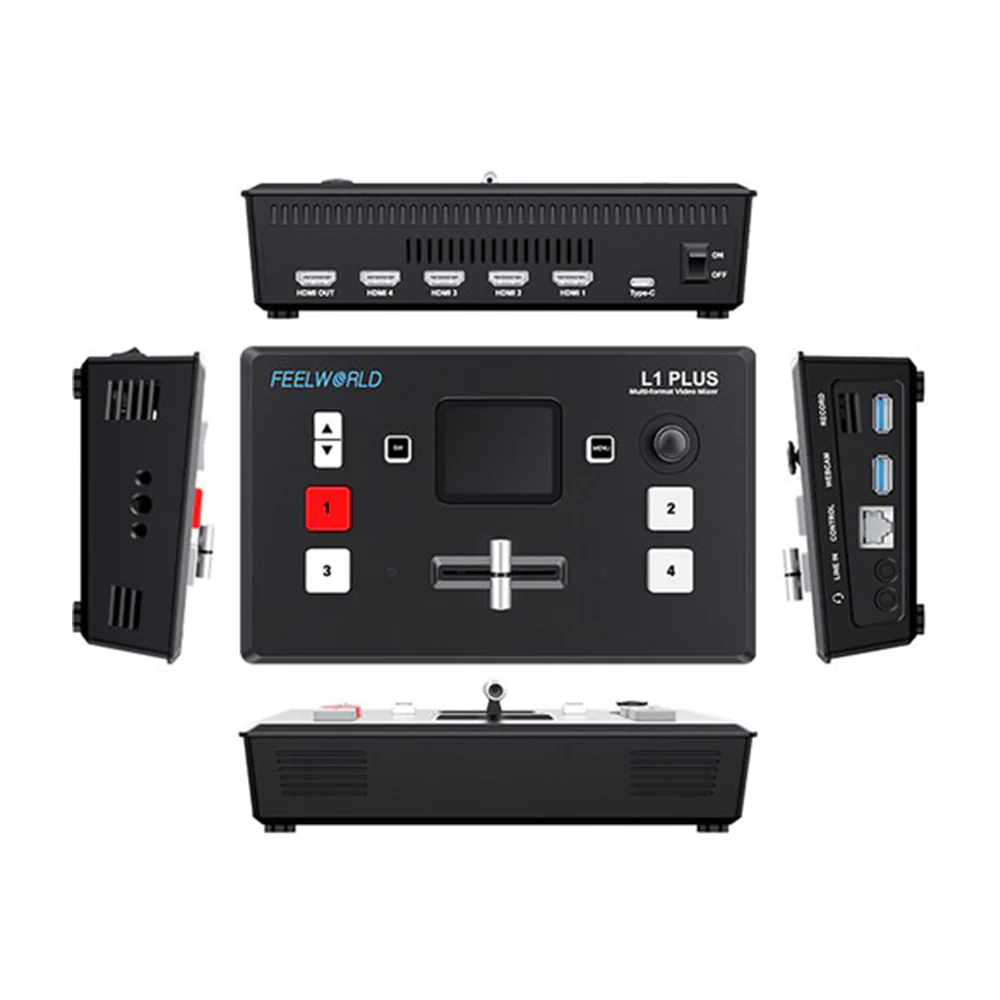

VideoΒ Inputs:Β 4xΒ HDMIΒ Female
InputΒ VideoΒ Format:Β HDMI
AudioΒ Inputs:
β’ 1x 1/8" / 3.5 mm TRS Stereo Analog Female
β’ 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Female
VideoΒ OutputΒ Channels:Β 3
VideoΒ Outputs:
β’ 1x HDMI (2.0) Female (Monitor)
β’ 1x USB-A (USB Video) Female (Program)
OutputΒ VideoΒ Format:Β HDMIΒ /Β USB-A
AudioΒ Outputs:Β 1xΒ 1/8"Β /Β 3.5Β mmΒ TRSΒ StereoΒ AnalogΒ Female
MultiviewΒ Output:Β 4-WayΒ Multiview
MonitorΒ Output:Β 1xΒ HDMI
OtherΒ I/O:
β’ 1x USB-A Firmware Input
β’ 1x RJ45 Control, LAN Input/Output
DisplayΒ Size:Β 2"
PowerΒ I/O:Β 1xΒ USB-CΒ (12Β VDCΒ atΒ 1.5Β A)Β Input
PowerΒ Consumption:Β Device:Β 20Β W
Β
Features:
-
4Β xΒ HDMIΒ DCI/UHDΒ 4KΒ InputsΒ /Β PGMΒ Output
-

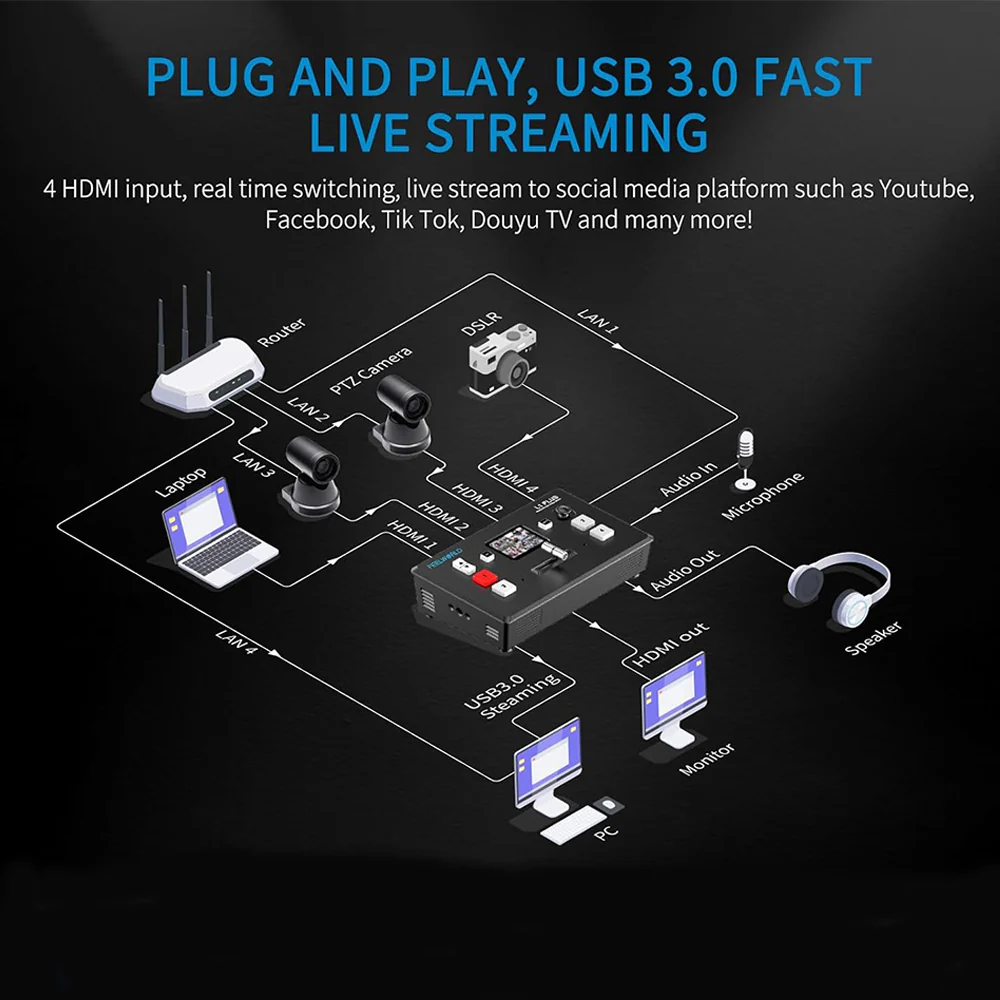

USBΒ 3.0Β LiveΒ StreamingΒ Output
-

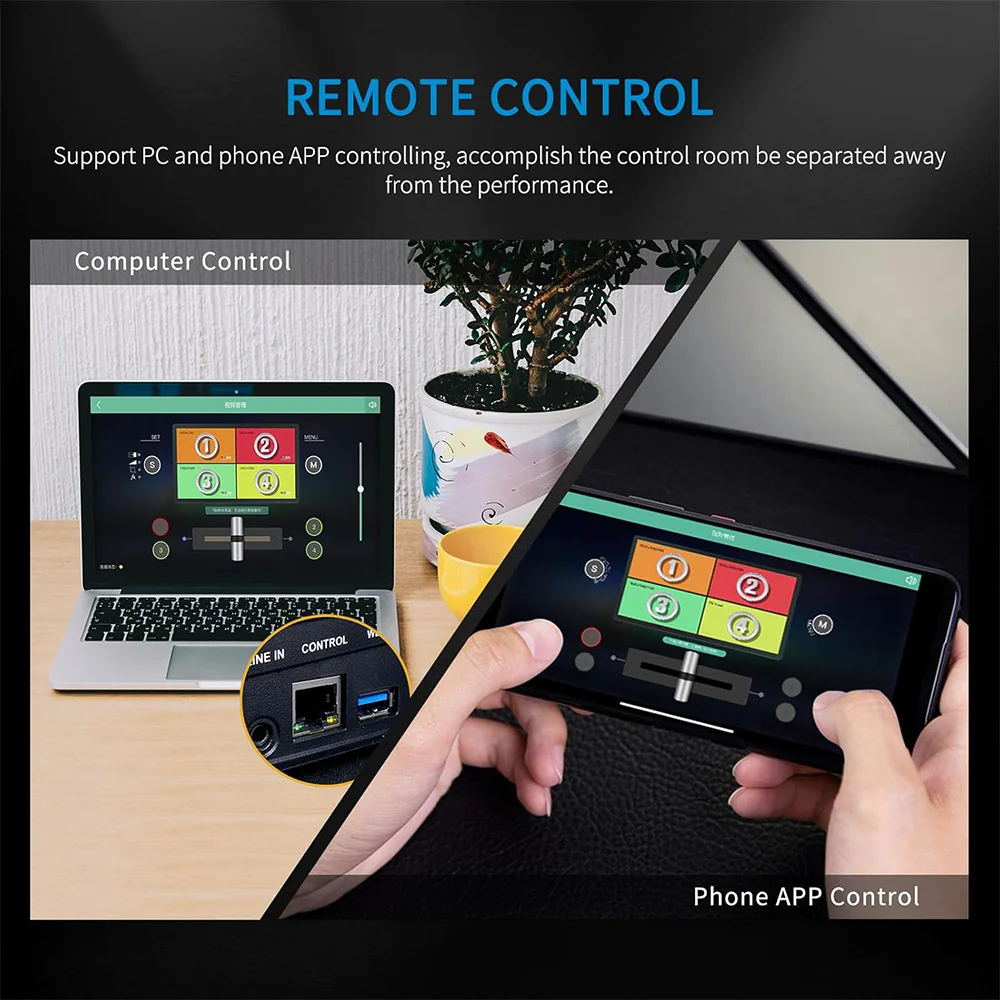

LANΒ PortΒ &Β SoftwareΒ forΒ RemoteΒ Control
-
iOS/AndroidΒ RemoteΒ ControlΒ App
-
3.5mmΒ AudioΒ InputΒ &Β Output
-
2"Β TFTΒ LCDΒ 4-ChannelΒ andΒ MenuΒ Display
-

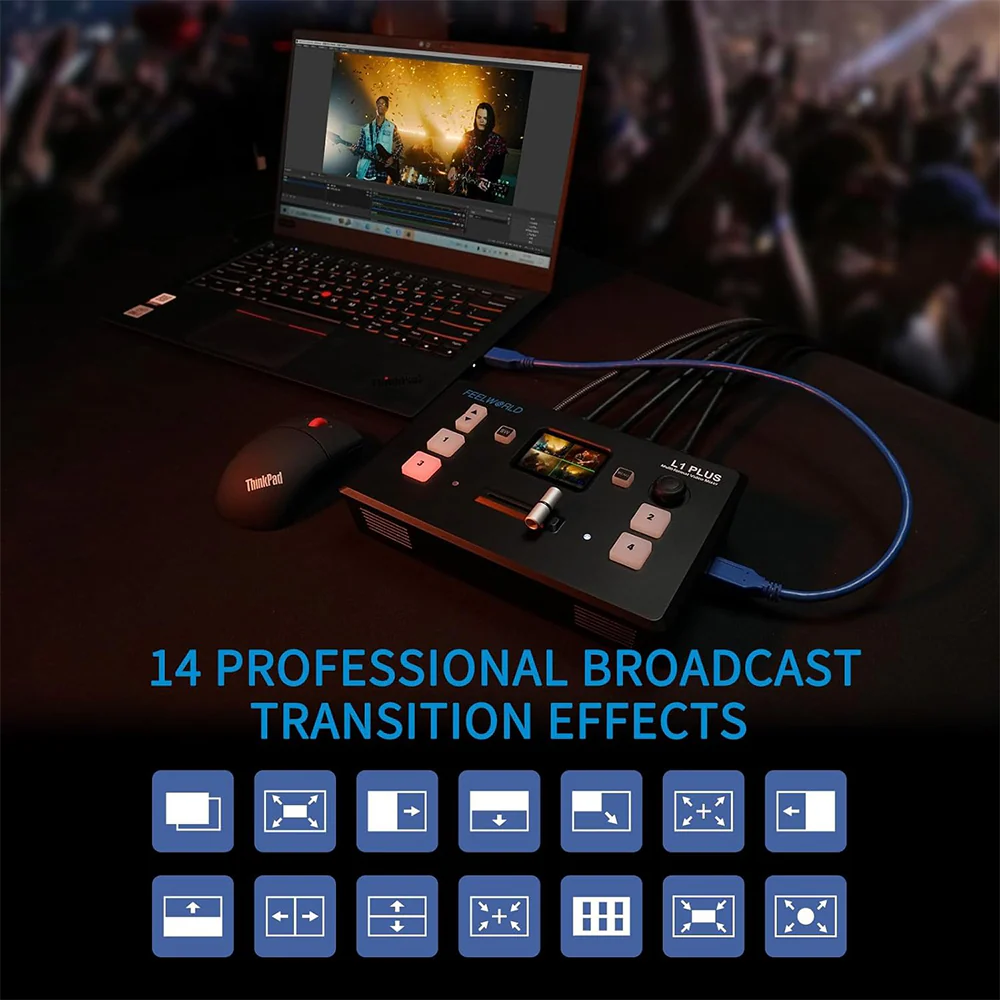

14Β xΒ TransitionsΒ withΒ AdjustableΒ Timing
-
8Β xΒ Picture-in-PictureΒ Modes
Β
What'sΒ inΒ theΒ box:
-
FeelWorldΒ L1Β PLUSΒ V2Β Multi-CameraΒ VideoΒ Mixer/SwitcherΒ withΒ TouchscreenΒ PTZΒ Control
-
PowerΒ Adapter
-
USB-CΒ Cable
-
USB-AΒ 3.0Β Cable
-
AudioΒ Cable
Β
