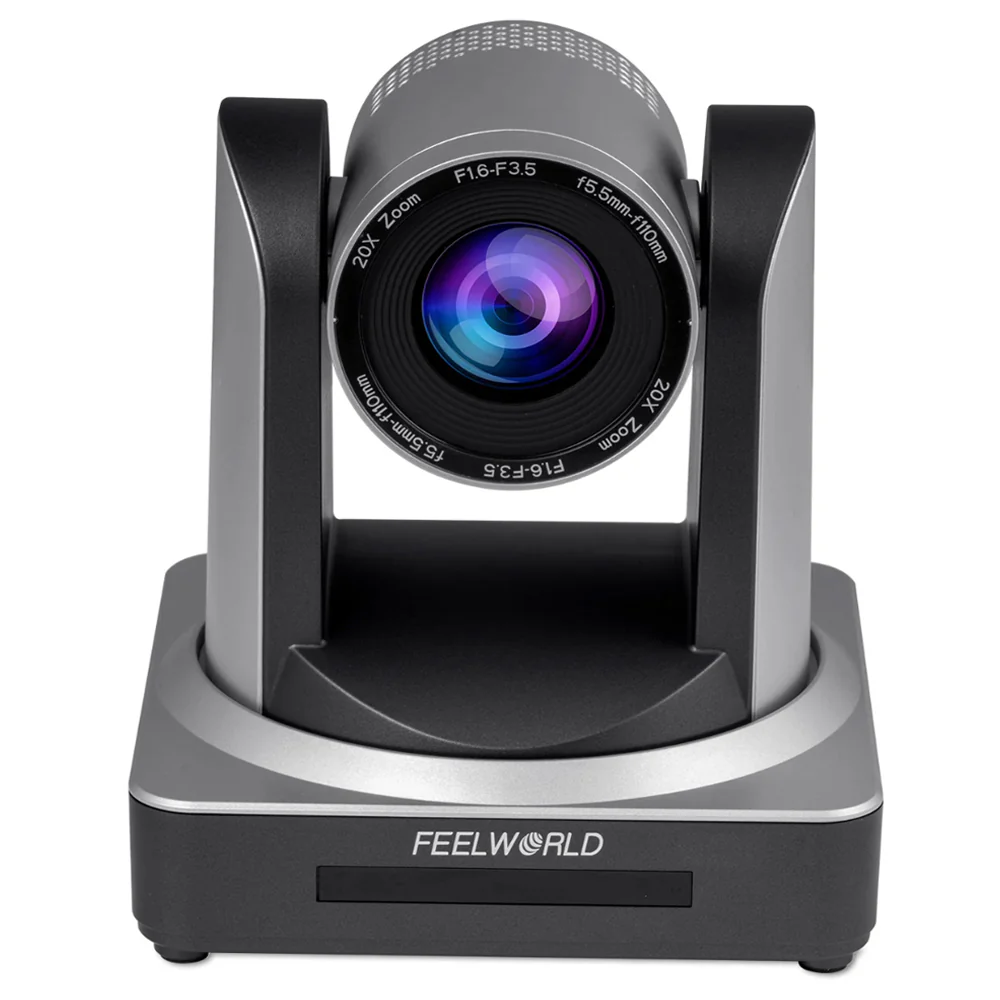

FEELWORLD POE20X PTZ Camera 3G-SDI HDMI IP 20X Optical Zoom Auto Focus Pan Tilt Camera for Live Streaming, Broadcast & Conferencing with PoE Support

Features:

• 1/2.9"" 2.07MP CMOS Sensor

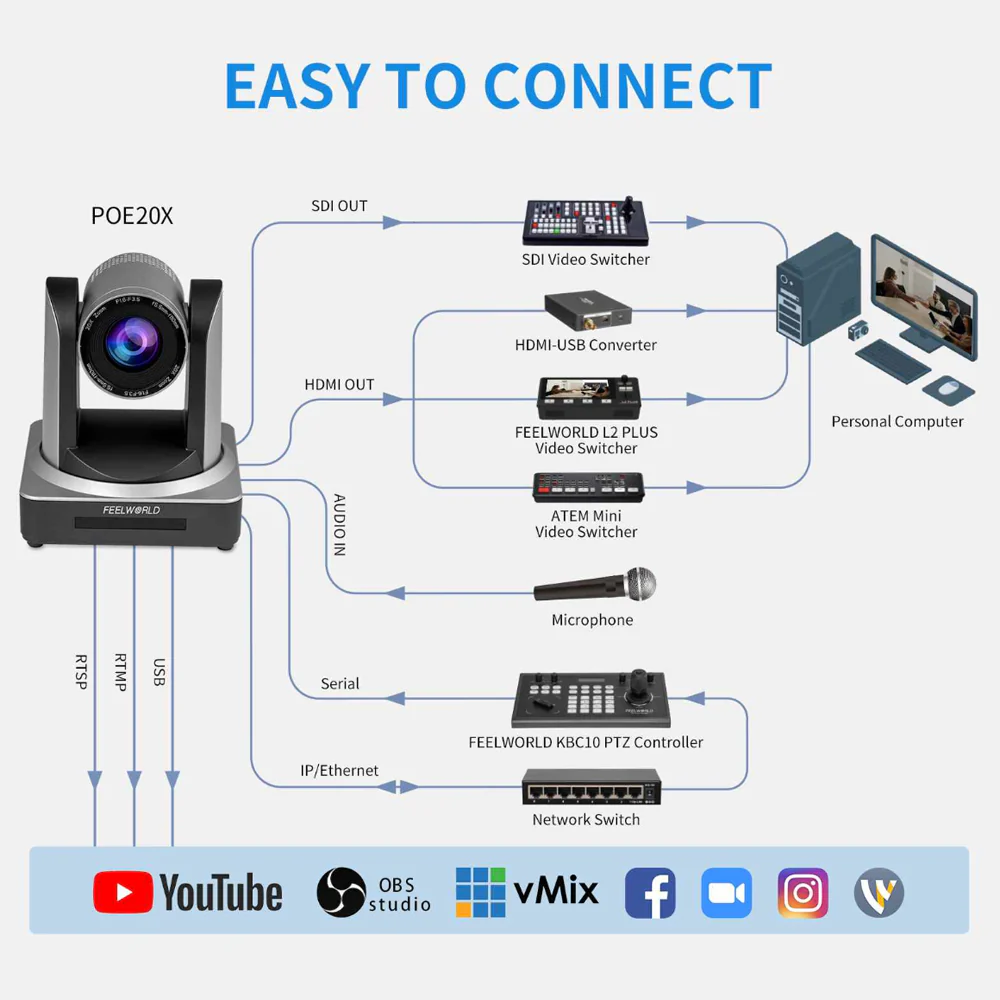

• Simultaneous 3G-SDI, HDMI & LAN Out
• Supports up to 1080p60 Video
• 20x Optical Zoom, 3.3 to 54.7° FOV
• ±170° Pan, -30 to 90° Tilt Range
• PoE Support
• Embedded Audio & 3.5mm Stereo Analog In
• MJPEG/H.264/H.265/NDI/NDI|HX Streaming

Full Specifications:

• Model: POE20X
• Sensor: 1/2.9 inch high quality CMOS sensor
• Effective Pixels: 2.07 megapixel, 16：9
• Output Resolutions: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
• View Angle: 3.3°～ 54.7°
• Focus Length: f＝5.5～110mm
• AV: F1.6 ～ F3.5
• Optical Zoom: 20X
• Minimum Illumination: 0.5 lux （F1.8, AGC ON）
• DNR: 2D & 3D
• White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
• Focus: Auto / Manual/ One Push Focus
• Exposure: Auto / Manual
• BLC: On/Off
• WDR: OFF/Dynamic level adjustment
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
• SNR: >55dB
• Video Interface: HDMI, 3G-SDI, LAN(support PoE)
• Image Code Stream: Double stream outputs simultaneously
• Video Compression Format: H.264, H.265
• Audio Interface: Double track 3.5mm linear input
• Audio Compression Format: AAC、MP3、G.711A
• Control Interface: RS232 (IN/OUT), RS485
• Control Protocol: VISCA/Pelco-D/Pelco-P
• HD IP Interface: 100M IP port（10/100BASE-TX)
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VSICA
• Power Interface: HEC3800 outlet (DC12V)
• Pan Rotation: -170°～+170°
• Tilt Rotation: -30°～+90°
• Pan Control Speed: 0.1 ～60°/sec
• Tilt Control Speed: 0.1～30°/sec
• Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
• Preset Number: 255 presets (10 presets via remote control)
• HDMI/SDI Video Out: 1080P60/50/30/25/59.94/29.97；1080i60/50/59.94；720P60/50/59.94
• USB 2.0 Video Output: 320x240|352x288|640x360|640x480|704x576|704x480|720x576|800x448|800x600|960x540|1024x576|1024x768|1280x720|1920x1080P30/25/20/15/10/5
• Input Voltage: 12V/1.5A
• Power Consumption: Maximum: 12W
• Stored Temperature: -40℃～+70℃
• Storage Humidity: 20%～90%
• Working Temperature: -10℃～+50℃
• Working Humidity: 20%～80%
• Dimension (W*H*D): 150mm×150mm×167.5mm
• Unit Weight: 1.4kg
