Key Features
- 6" 1920 x 1080 IPS Display
- HDMI and SDI Input and Output
- 1500 cd/m² Brightness, 1000:1 Contrast
- Custom 3D LUT Input via USB-C
- Histogram, Vectorscope, and Waveform
- Audio Meter, Four Group User Buttons
- 7-24 VDC Power Input; 8.4 VDC Output

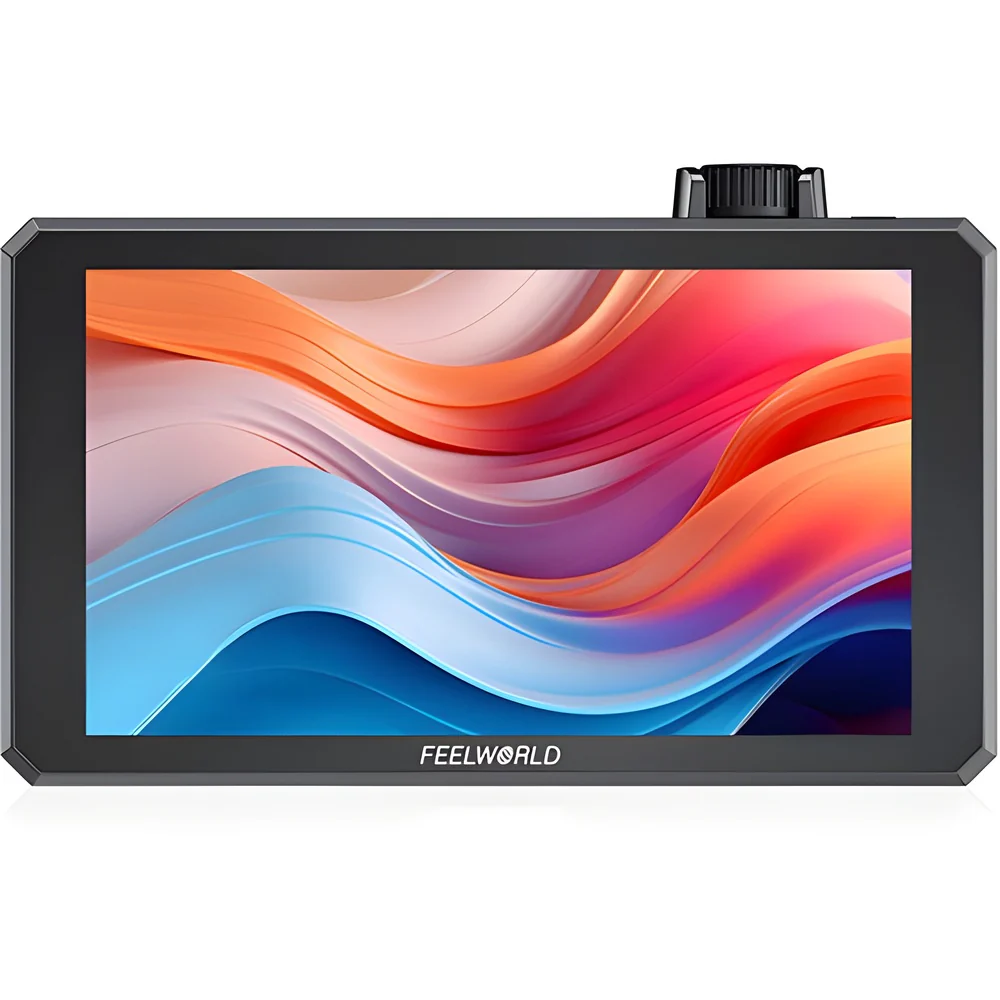

6-inch high-bright field monitor with 1500 nits brightness, Full HD touchscreen, and rugged aluminum body. Supports 3G-SDI & 4K HDMI input/output, LUT color preview, and professional monitoring tools—ideal for DSLR/mirrorless video shooting indoors or outdoor
Specifications
Brand: FEELWORLD
Model: SC6
Screen size: 6"" IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069(W) x 0.069(L) mm (mm)
Color Depth: 8bit
Aspect Ratio: 16:9
Light: 1500cd/m²
Contrast Ratio: 1000:1
Response time: Ton+Toff=35ms
Backlight: LED
Viewing Angle: 80 ° / 80 ° (L / R) 80 ° / 80 ° (U / D)
Input & Output: 3G-SDI | HDMI 2.0
USB-C: For LUT upload & firmware updates
Audio: 3.5mm Stereo Headphones
Power Input: DC 12 V barrel jack
Power Output: DC 8.4 V (can power a camera in‑field)
Battery Slot: NP‑F type
Operating Voltage Range: DC 7 V–24 V
Power Consumption: ≤ 18 W
Housing: Aluminum body
What's in the box?
- 1x 6 inch Monitor
- 1x HDMI A-A
- 1x HDMI A-C
- 1x USB-A to USB-C Adapter
- 1x Mini Hot shoe mount
- 1x Hex Wrench
- 1x Sunshade Hood
- 1x Cable Tie
- 1x Product Manual
