Key Features

• 7"" Full HD IPS display (1920×1200)

• 2000 nits ultra-bright (daylight viewable)

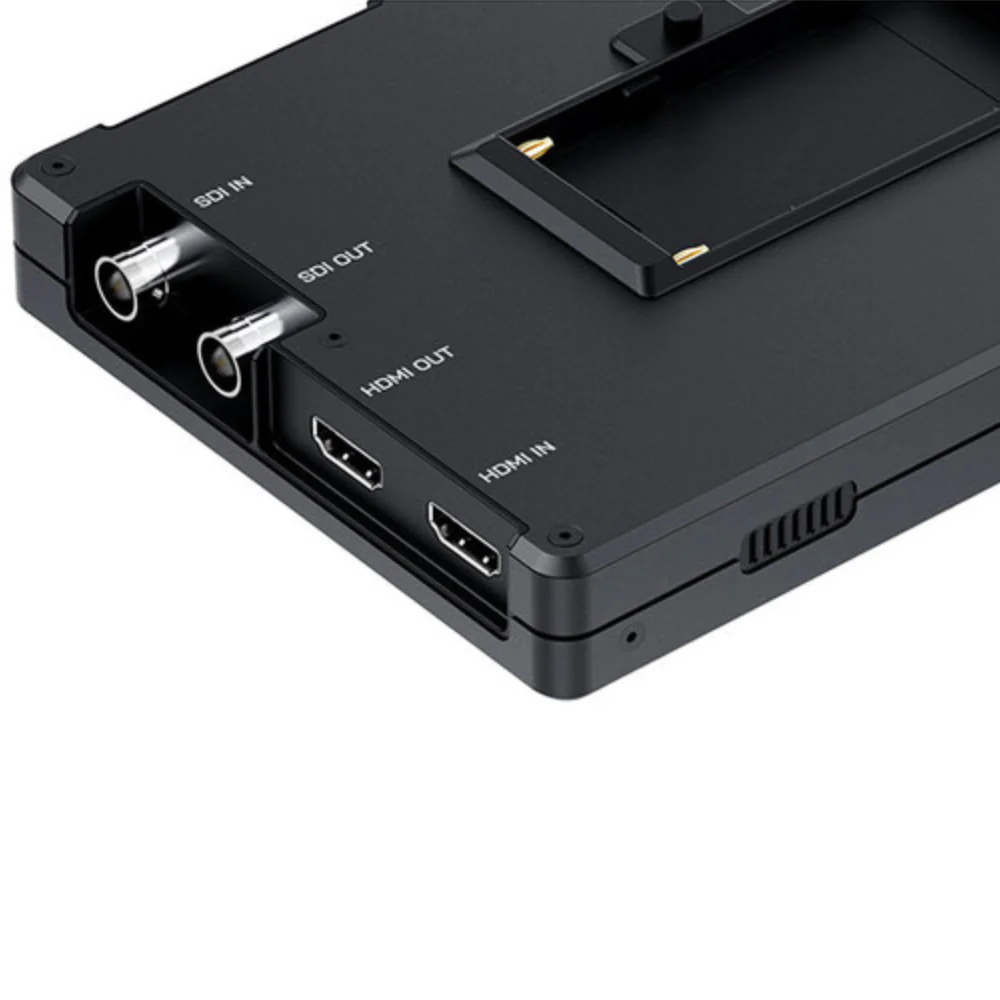

• 3G-SDI + 4K HDMI input/output

• Durable aluminum housing (better heat dissipation)

• 3D LUT support (custom LUT import)

• HDR monitoring (HLG) support

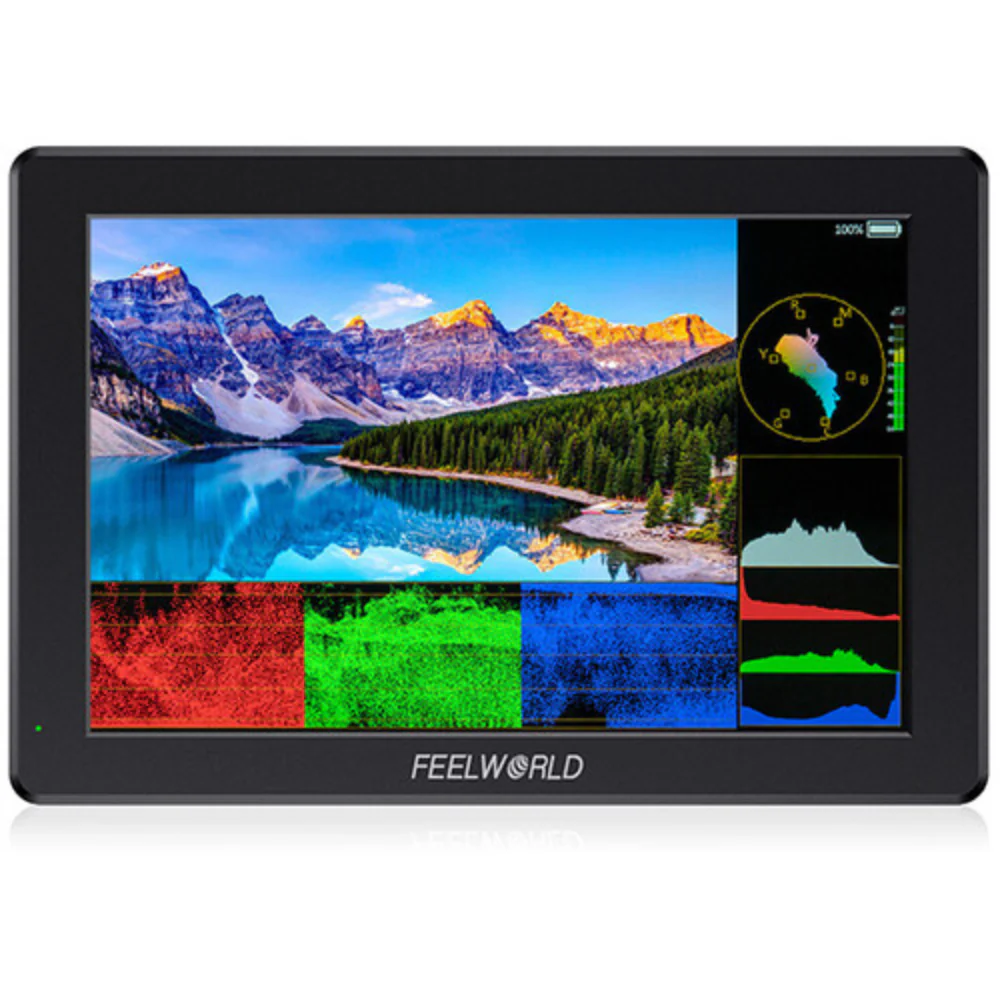

• Built-in pro tools: waveform, vectorscope, histogram, focus assist

• 3.5mm earphone output for real-time monitoring


Specifications

Brand: FEELWORLD
Model: TS7 PRO
Screen Size: 7"" IPS
Resolution: 1920x1200 px
Aspect Ratio: 16:10
Brightness: 2000 cd/m²
Contrast Ratio: 1200:1
Color Depth: 8-bit
Viewing Angle: 80°/80° (L/R, U/D)
Input/Output: 3G-SDI, HDMI
Audio: 3.5mm headphone jack
Input Voltage: DC7 ~ 24V
Battery: NP-F series support
Power Consumption: ≤18W
Mounting: 1/4""-20 (bottom)
Operating Temp: -20°C to 55°C

What's in the box?

• 1x Monitor

• 1x HDMI Cable

• 1x Micro HDMI Cable

• 1x USB to Mini USB Cable

• 1x Mini Hot Shoe Mount & Hex Wrench

• 1x Sun Shade & Frame

• 1x Cable Tie

• 1x Manual
