Martin Audio 2-Way Passive Full-Range Ceiling Loudspeaker with UL2043 Fire Tests and Visible Smoke Release (4", 0.8", 8") | C4.8T, C.6.8T, C8.1T



Description:

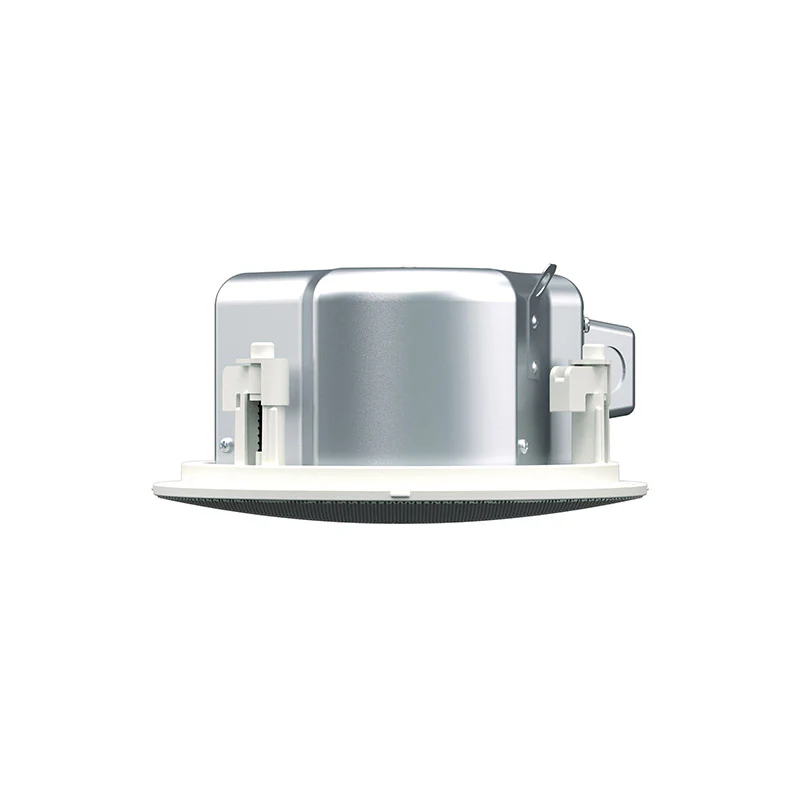

Martin Audio C4.8T, C6.8T and C8.1T ceiling loudspeakers are all 2-way designs using
soft dome tweeters for the widest dispersion and excellent off-axis performance. All
models have perforated steel grilles, UL94 V-0 baffle materials, steel back cans and
feature rising clamp connectors that accept up to 2.5sqm conductors.

Features:

C4.8T

• Two-way high performance flush mounting ceiling speaker
• 4" (100mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
• Very wide dispersion – 180° up to 10kHz
• High & low impedance operation – transformer included
• Fireproofed rising clamp plug and socket for easy pre-wiring
• 100dB continuous max SPL @ 1 metre
• Steel backcan
• Tile rails and C bracket included
• UL2043 & UL1480

Applications

• Fixed installations in ceiling and walls
• Low ceiling environments

C6.8T

• Two-way high performance flush mounting ceiling speaker
• 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
• Very wide dispersion – 150° conical up to 7kHz
• High & low impedance operation – transformer included
• 106dB continuous max SPL @ 1 metre
• 75W power handling – 16 ohm (40W transformer)
• Polyswitch and thermal fuse protection
• Steel backcan
• UL2043 & UL1480

Applications

• Fixed installations in ceiling and walls
• Low ceiling environments

C8.1T

• Two-way high performance flush mounting ceiling speaker
• 8" (200mm) UL94V-0 carbon fibre loaded polypropylene cone bass
• Wide dispersion – 90° conical up to 7kHz
• High & low impedance operation – transformer included
• 110dB max SPL @ 1 metre (16 ohm)
• 125 watt power handling (60W through transformer)
• Polyswitch and thermal fuse protected
• Steel backcan
• UL2043 & UL1480

Applications

• Fixed installations in ceiling and walls
• Bars and restaurants
