Features

• • 5" (125mm) ICT™ transducer
• • Weather resistant enclosure and transducer
• • Versatile mounting arrangement

Applications

• • Retail outlets
• • Hotels, bars and restaurants
• • Health clubs
• • Theme parks

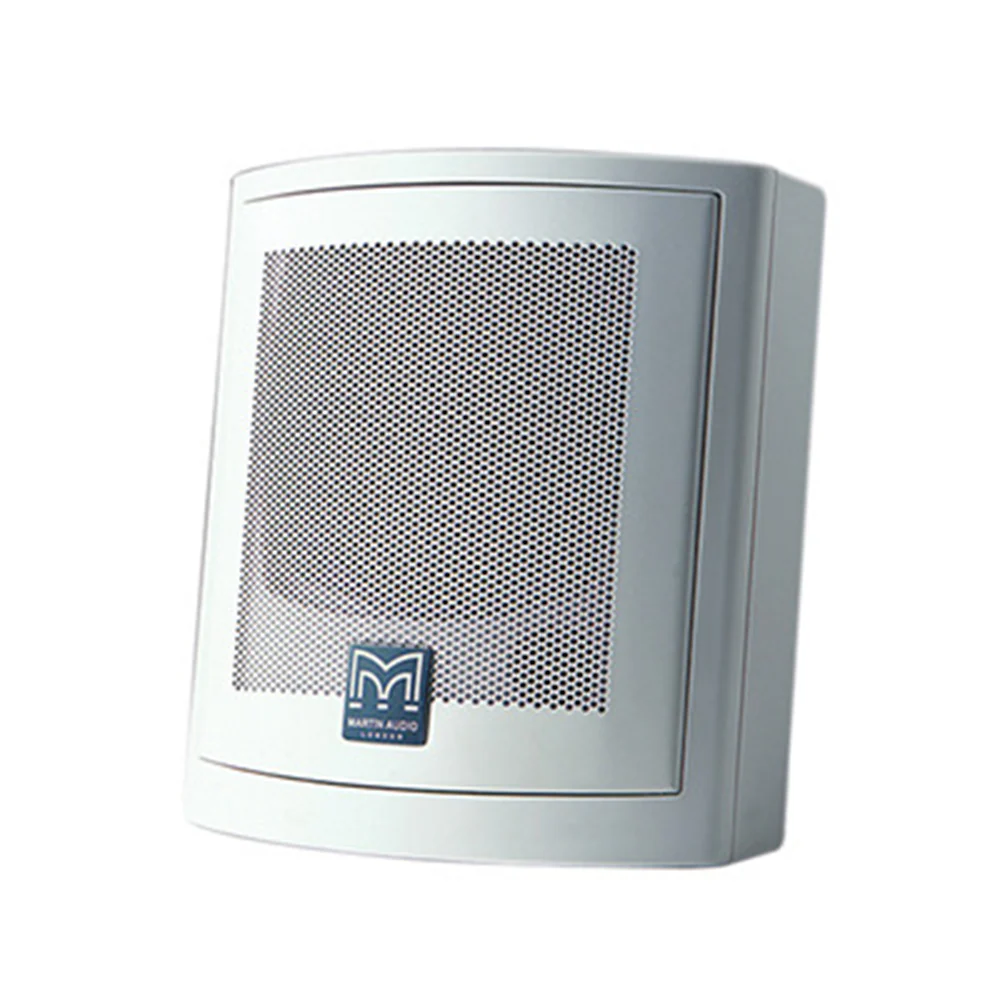

The elegant surface-mount C115 loudspeaker is ideal for reproducing both speech and background music in a distributed sound system. Its unobtrusive, lightweight polypropylene injection-moulded enclosure withstands most weather conditions and protects the weather-resistant drive unit in exposed locations.



Features include wide bandwidth and high output capability from a two-way, 5" ICT™ drive unit. Patented ICT™ (Inductively Coupled Transducer) high frequency technology avoids the tweeter voice coil burn-out so often found in background music systems.



A versatile, integral bracket permits close coupling to the wall and 40˚ horizontal / 35˚ vertical off-axis adjustment. Non-intrusive corner mounting and array options provide the flexibility for optimum siting in any particular architectural environment.



The C115 is available in low impedance electrical or line transformer configuration - the latter being easily switched between tappings by use of a screwdriver.

Technical specifications

• • TYPE: Ultra-compact, two-way ICT™
• • FREQUENCY: 80Hz-20kHz
• • RESPONSE: (1) 120Hz-20kHz ± 3dB
• • DRIVERS: 5" (125mm) full-range ICT™
• • RATED POWER: (2) 50W AES, 200W peak
• • RECOMMENDED: MA2.8Q
• • AMPLIFIER:
• • SENSITIVITY: (3) 88dB
• • MAXIMUM SPL: (4) 105dB continuous, 111dB peak
• • NOMINAL IMPEDANCE: 8 ohms
• • DISPERSION: (-6dB) 90º conical
• • CROSSOVER: -
• • ENCLOSURE: Mineral loaded polypropylene
• • FINISH: Light grey or graphite
• • PROTECTIVE GRILLE: Perforated steel

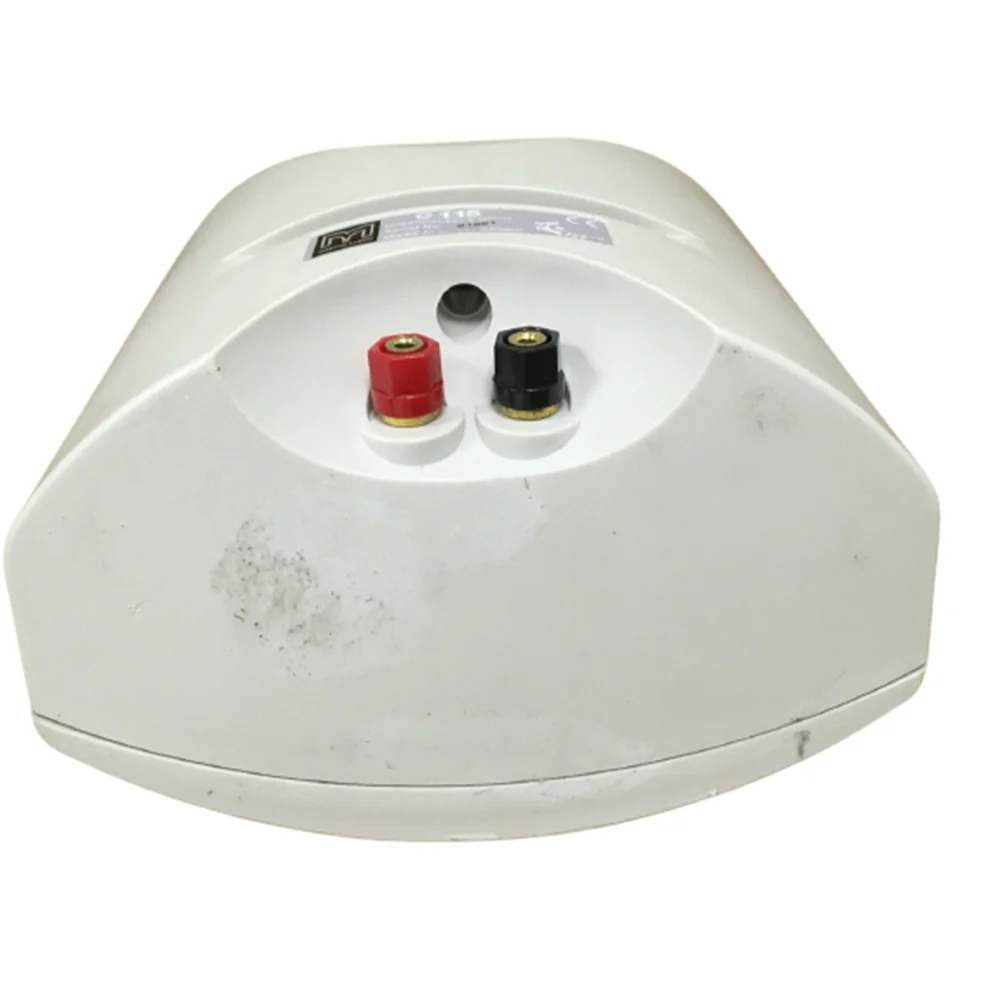

• • CONNECTORS: Binding posts
• • OPTIONS: 30W line transformer, Shielded magnet
• • DIMENSIONS: (W) 194mm x (H) 217mm x (D) 135mm
• • WEIGHT: 1.7kg (3.7lbs)
