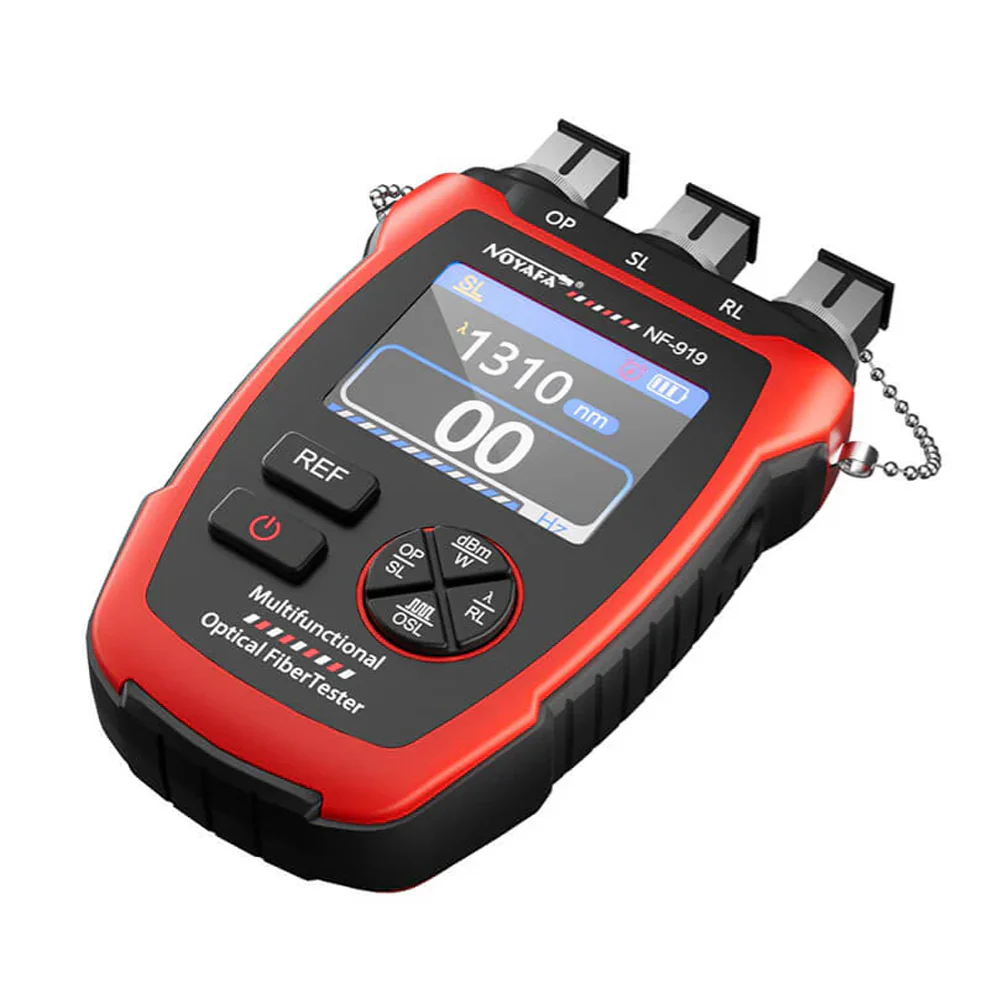

NF-919
Power Meter & Visual Fault Locator
- 3-in-1 Tester for Fiber Optics: Find three features in one compact device, optical meter, source light, and, visual fault locator. Check continuity, test loss, and find physical damages.
- Pocket-Sized Design: Made to be handheld, it's smaller than a mobile phone, carry this optical tester anywhere you go. Put it in your pocket or toolbag at ease.
- 3 Fiber Optic Interfaces: From the most common fiber optic connector SC to FC and ST, connect any of these fiber cables to NF-911 and run a test.
- Protection Caps: To reduce the pollution of dust, we provide protection caps to 3 fiber optic jacks.
- Accurate Testing Result: Make every test result precise with an error of less than 0.3 dB.
Specifications:
- Brand: NOYAFA
- Model: NF-919
- Display: Color LCD
- Light Source Function:
- Wavelength: 1310/1550nm
- Frequency: 00Hz, 270Hz, 1000Hz, 2000Hz
- OPM Test Function:
- Unit: dBm/(m, u)nW
- Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
- REF function
- Red Light Function:
- Frequency: 00Hz & 01Hz (Steadyon/Flashing)
- Wavelength: 650nm
- Auto-Off: No Operation for 30 mins (can be turned on/off)
- Working Temperature: -20°C~50°C
- Power Supply: 3.7V
