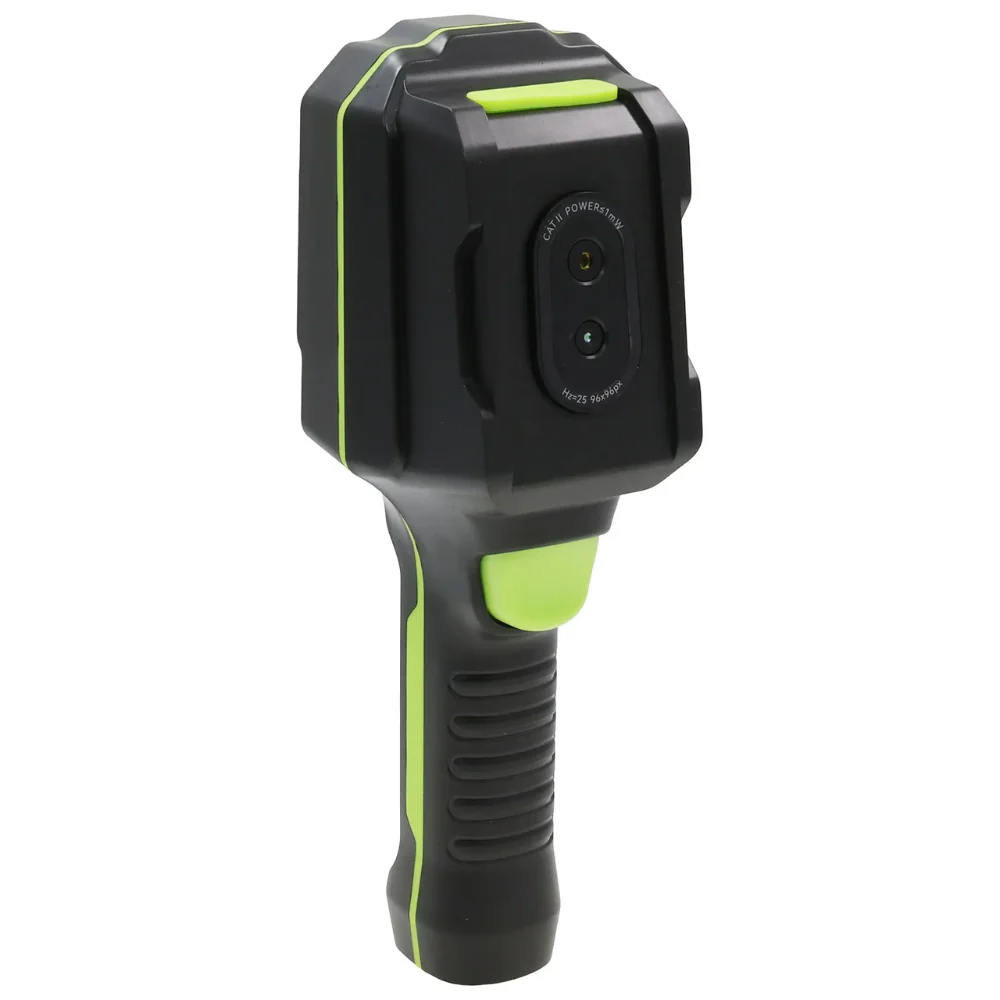

Noyafa NF-B522 Thermal Imaging Camera



Key Features

• Professional thermal camera with laser measurement

• 2.8"" HD LCD screen for clear thermal imaging

• 96×96 resolution for accurate inspections

• 8–14 μm wavelength, 12 μm sensor pixel

• Temperature range -20°C to +550°C

• Laser pointer for precise measurement

• Multi-language menu support

• RoHS, FCC, CE certified; ISO 9001 manufacturer

• Affordable, cost-effective thermal solution

• Ideal for building, HVAC, car, electrical, leak, and pest inspections

Noyafa NF-B522 is a professional thermal camera with integrated laser temperature measurement , designed for quick diagnostics of buildings, heating systems, cars and electrical installations. The 2.8" HD color screen and 96×96 thermal resolution allow you to clearly see temperature differences and immediately identify problem areas.

Specifications

Brand: Noyafa
Model: NF-B522
Display: 2.8"" TFT LCD
Sensor: VOX
IR Resolution: 96 × 96 pixels
Spectrum: 8–14 µm
Viewing Angle: 50° H × 50° V
Temperature Range: -20°C–150°C and 100°C–550°C
Emissivity: Adjustable 0.01–1.0
Recording Format: JPG
Battery: 3.7V, 1000mAh
Internal Memory: 128 MB (50 MB available)
Temperature Units: °C / °F / K
Dimensions: 220 × 72 × 70 mm
Laser Pointer: Integrated for temperature measurement

What's in the box?

• 1x Thermal Imager
• 1x Type-C USB
