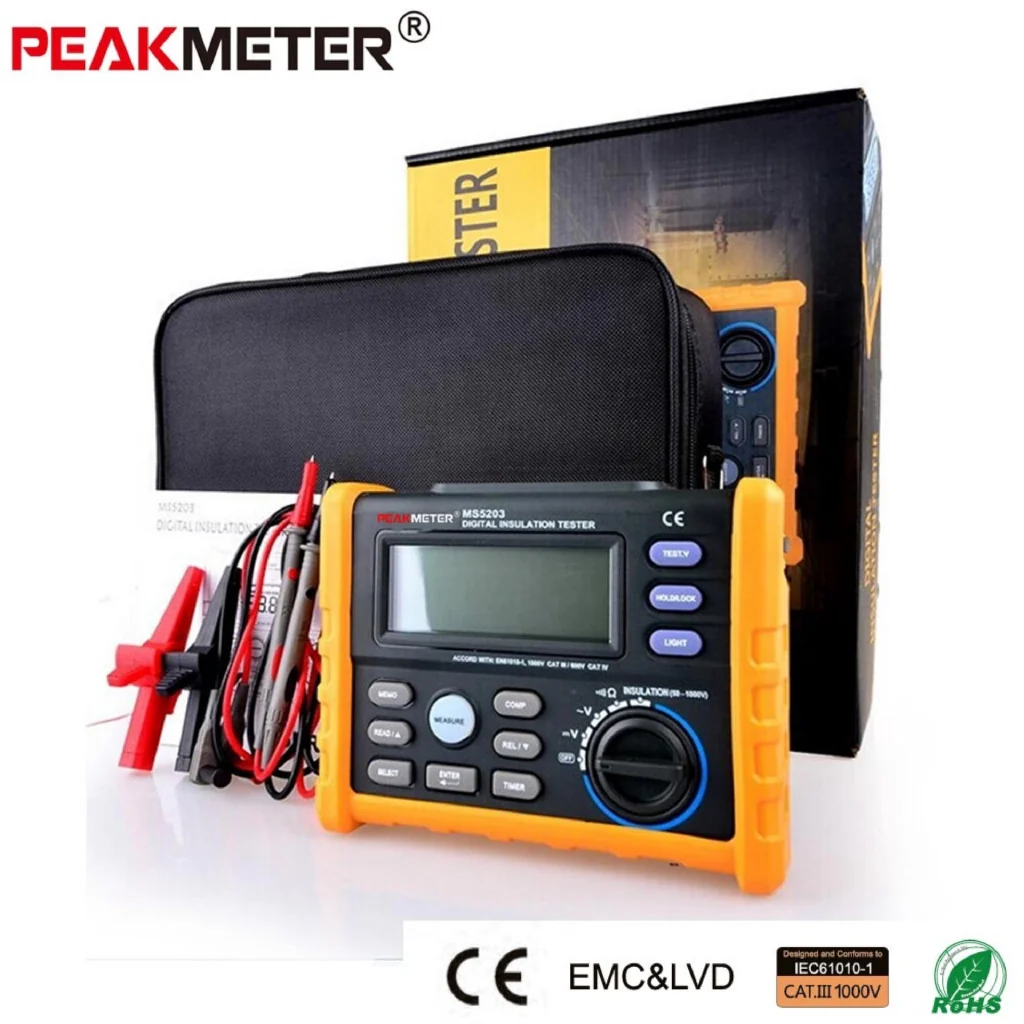

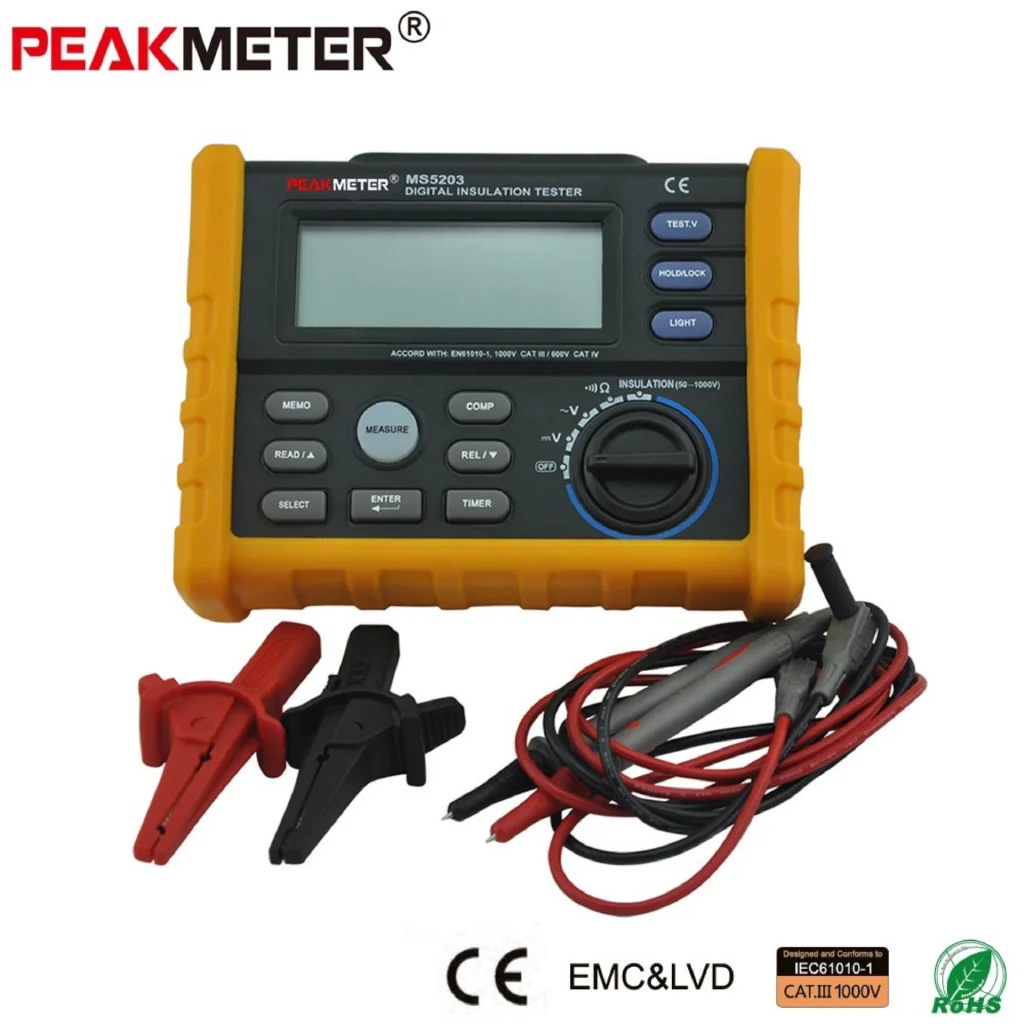

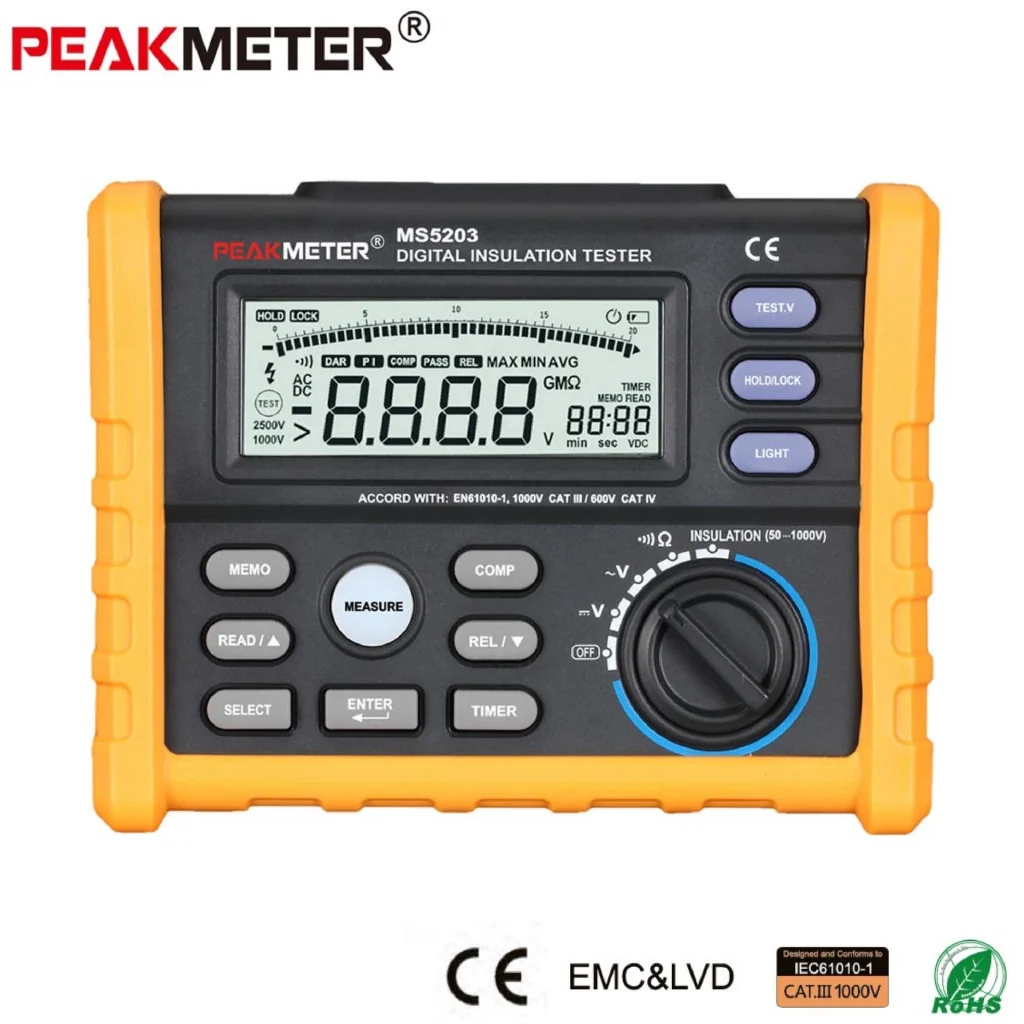

[CLEARANCE] PeakMeter MS5203 Alog and Digital 1000V Insulation Resistance Tester megger meter 0.01~10G Ohm with Multimeter
Features:
- Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc.)
- Use 50V-1000V voltage to test target insulation
- It can measure up to 10GΩ resistance
- Short current up to 1.8mA
- Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
- AC/DC voltage measurement and continuity test
- Display back light and auto power-off
|
Specification |
Source Output Voltage |
Measuring Range |
|
Insulation tests |
50V (0 %~+20%) |
0.01MΩ~50MΩ ±(3%+5) |
|
100V (0%~+20%) |
0.01MΩ~100MΩ ±(3%+5) |
|
|
250V (0%~+20%) |
0.01MΩ~250ΩM ±(3%+5) |
|
|
500V (0%~20%) |
0.01MΩ~500MΩ ±(3%+5) 1.00GΩ~5.00GΩ±(5%+0.1GΩ) |
|
|
1000V (0%~+20%) |
5.00GΩ~10.00GΩ±(10%+0.2GΩ) |
|
|
Short circuit current |
1.8mA |
|
|
Multimeter functions |
DC Voltage Test |
0.1~1000V±0.5% |
|
AC Voltage Test |
0.1~50V±1% |
|
|
Continuity Test |
0.01Ω~200Ω±0.5% |
|
|

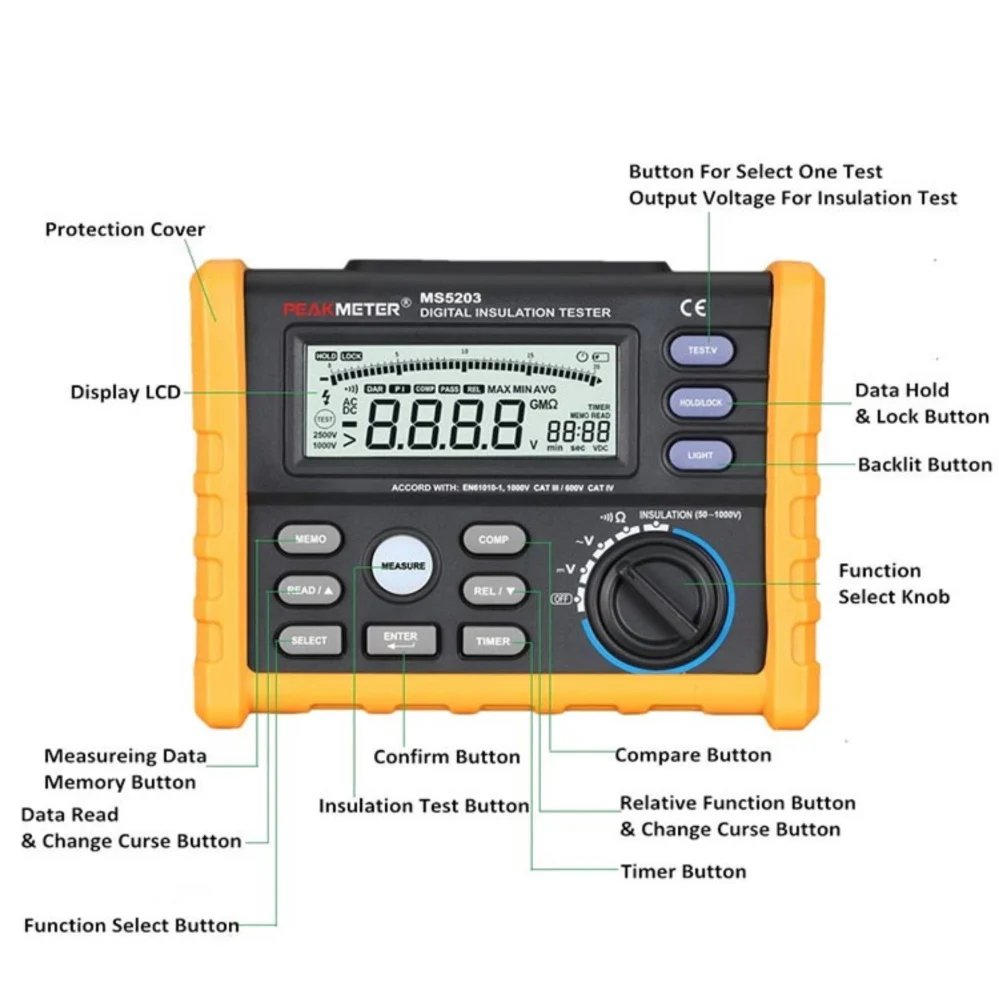

Features |
· Auto Calculate PI and DAR · Store /Load Function · Compare function · Auto discharge for capacitive load · Timer Function for insulation test · Lock function for insulation test · Low Battery Indication · DCV and ACV Test · Continuity test · Auto power Off · Digital and analog display |
|
|
General |
Power Supply |
6x1.5V AA batteries |
|
Product Size |
180mm x 140mm x65mm |
|
|
Product Weight |
Approx. 950g |
|
|
Safety Rating |
CE CAT.III 1000V CAT IV 600V RoHS |
|
