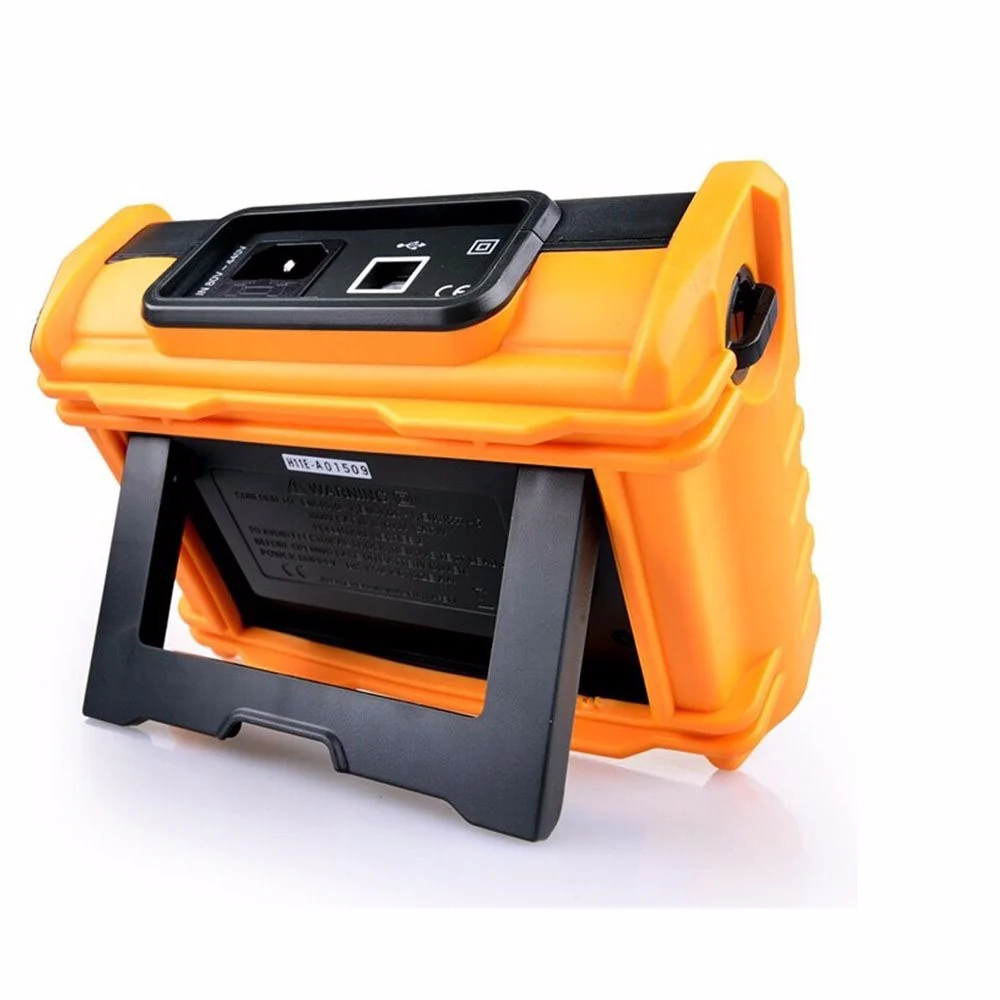

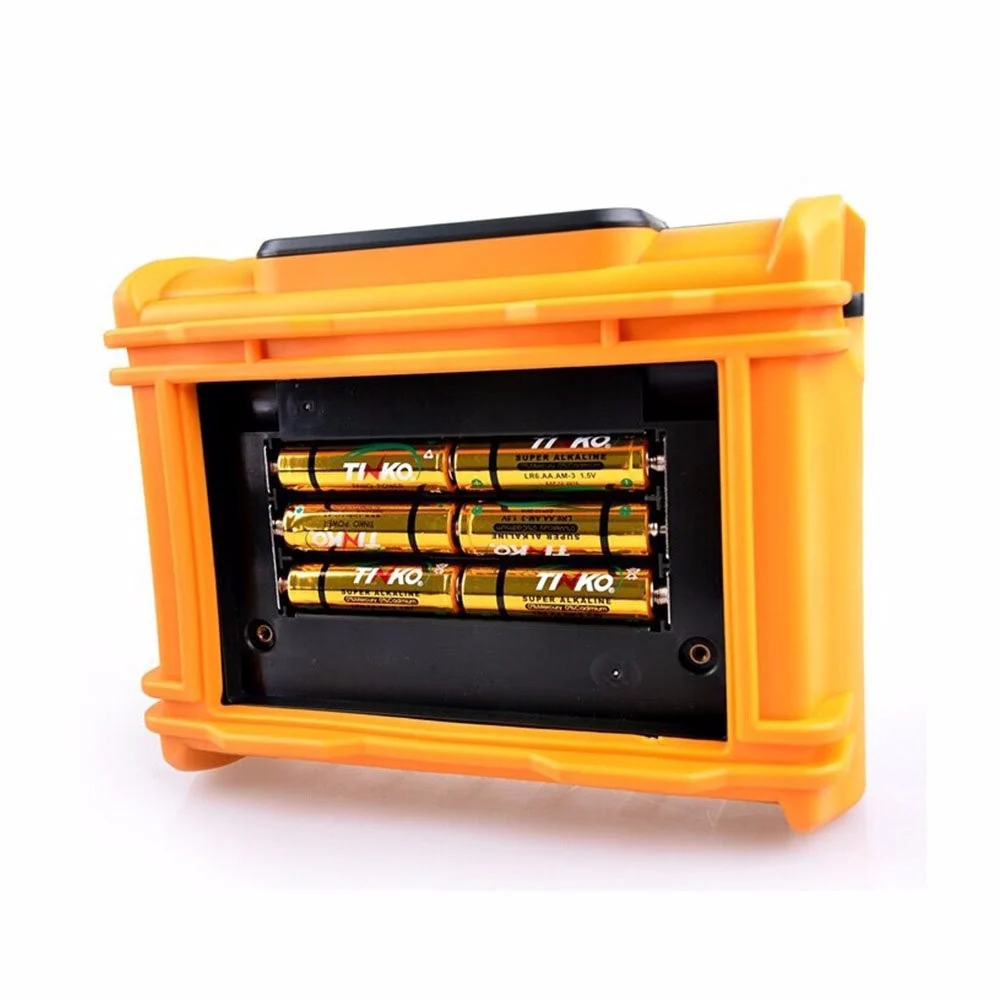

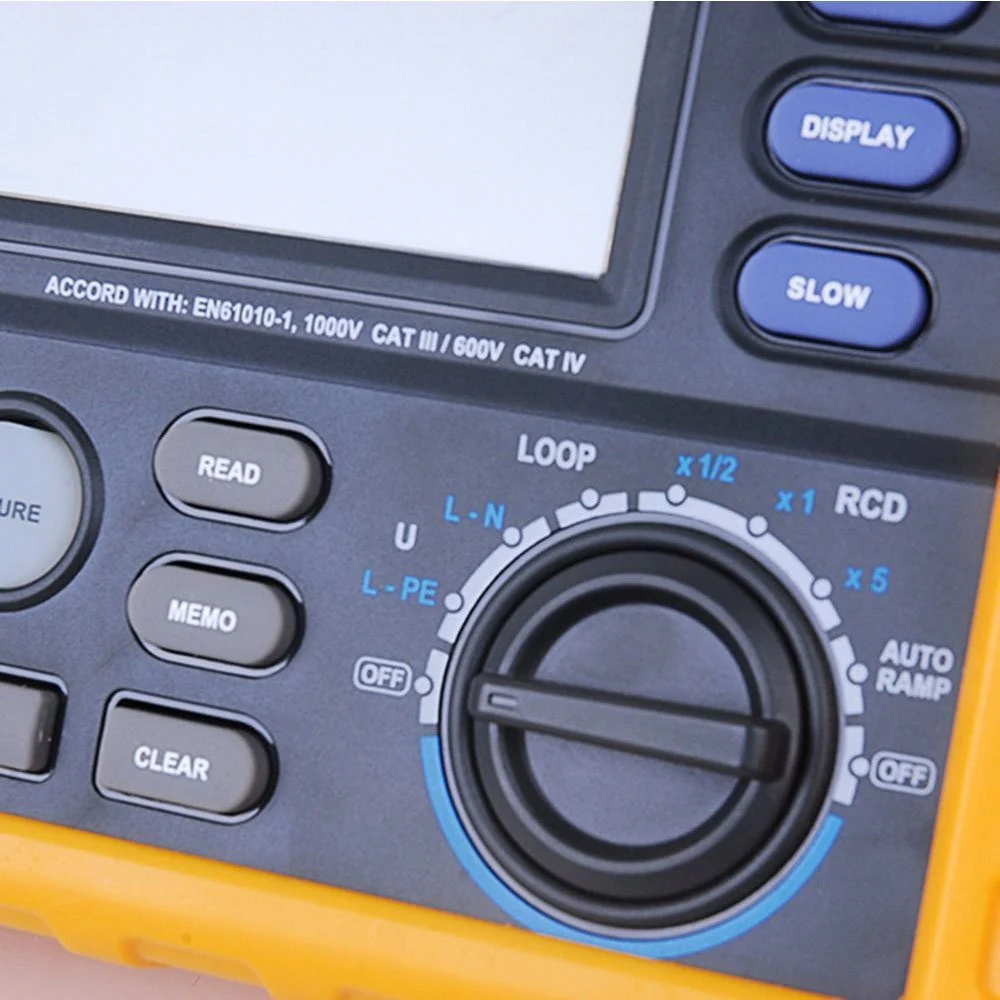

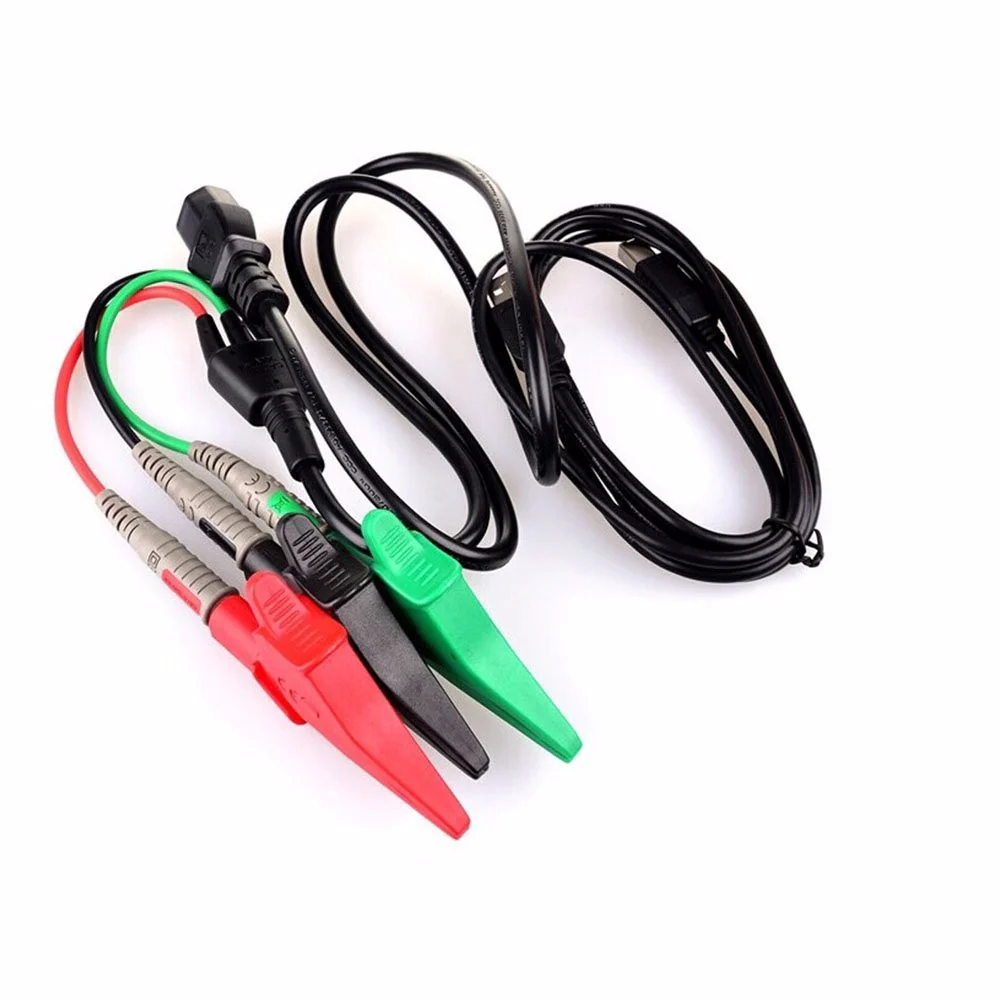

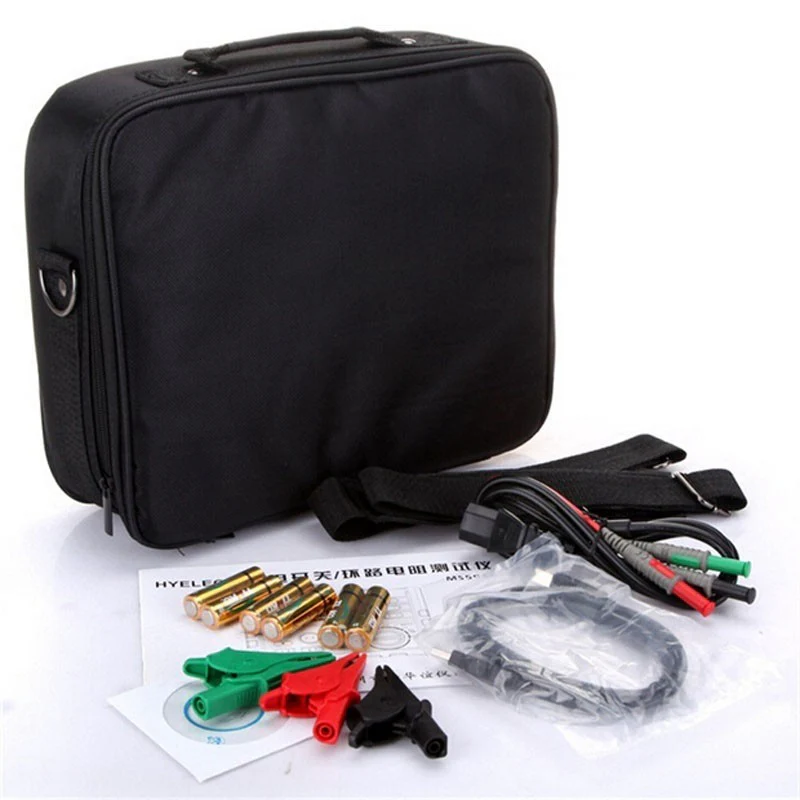

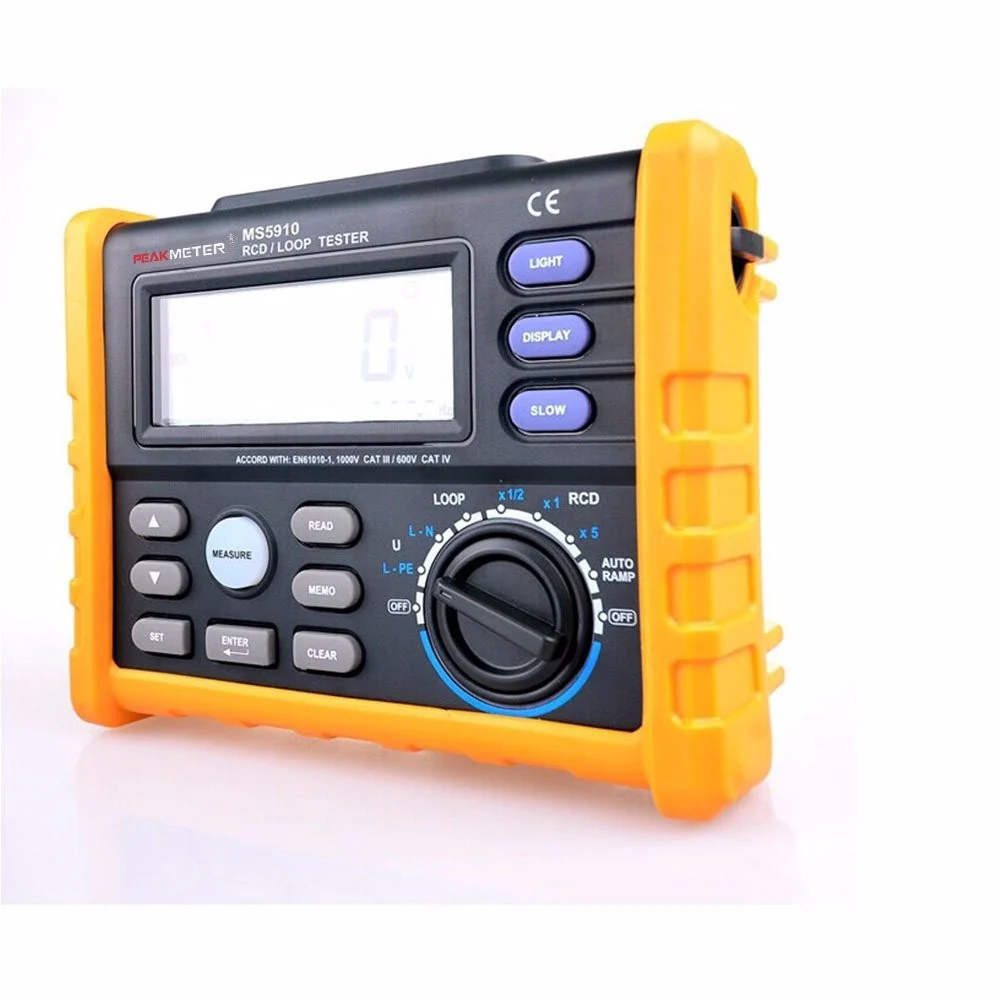

[CLEARANCE] PeakMeter MS5910 Digital resistance meter RCD loop resistance tester MultimeterTrip-out Current/Time Test RL Meter with USB Interface

[CLEARANCE] PeakMeter MS5910 Digital resistance meter RCD loop resistance tester MultimeterTrip-out Current/Time Test RL Meter with USB Interface

Specification:

  • Tripping time: x1 IΔN300(slow 500ms) ±3ms 0.1ms x5 IΔN40ms(slow 150ms) ±3ms 0.1ms
  • Tripping Current: (0.2-1.1)IΔN ±0.1IΔN 0.5IΔN
  • Contact Voltage: 0~99.9V ±(10%+0.2V) 0.01/ 0.1V
  • Alternating Voltage: (UI-N,UL-L,UL-E) 0~440V ±(3%+3V) 1V
  • Frequency: DC,45~65Hz ±1Hz 1Hz
  • Loop Resistance(RL): 0.1~2000Ω ±(10%+0.2d) 0.1Ω
  • RL Current Test: 0.51 IΔN ±(10%+10d) 0.5IΔN
  • Multiplying Power of Measuring Current: x0.5,x1,x5
  • Current Level(IΔN)|: 10mA,30mA,100mA,300mA,500mA
  • Trigger Phase Angle: 0°or 180°
  • Auto Power Off √
  • Display Back Light √
  • Low Battery indication √

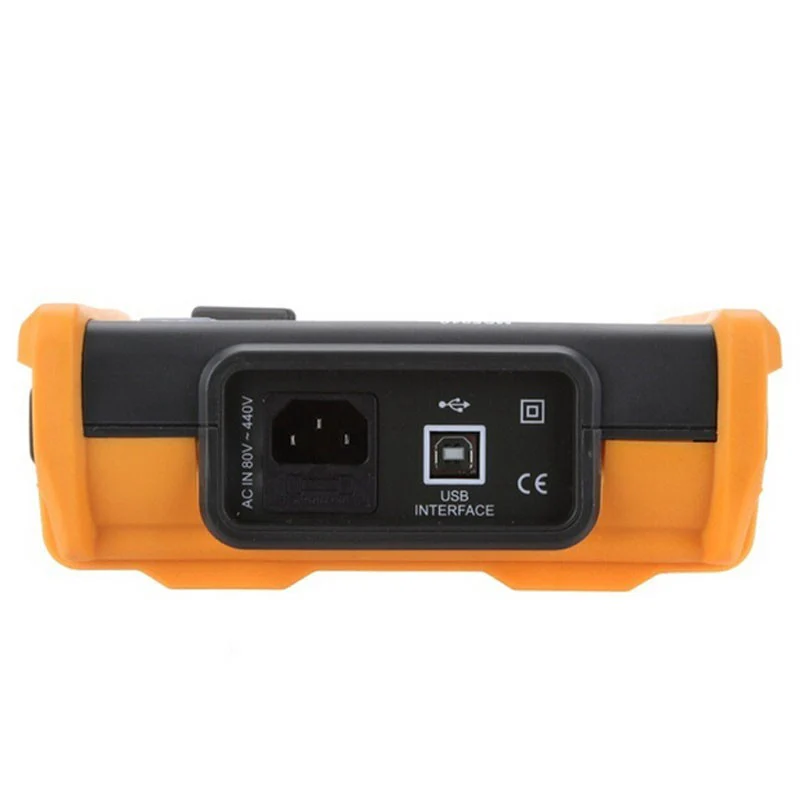

  • USB2.0 Interface √
  • Data logging And recall 100groups

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

$24.23

Original: $69.24

-65%
[CLEARANCE] PeakMeter MS5910 Digital resistance meter RCD loop resistance tester MultimeterTrip-out Current/Time Test RL Meter with USB Interface—

$69.24

$24.23

Product Information

Shipping & Returns

Description

Specification:

  • Tripping time: x1 IΔN300(slow 500ms) ±3ms 0.1ms x5 IΔN40ms(slow 150ms) ±3ms 0.1ms
  • Tripping Current: (0.2-1.1)IΔN ±0.1IΔN 0.5IΔN
  • Contact Voltage: 0~99.9V ±(10%+0.2V) 0.01/ 0.1V
  • Alternating Voltage: (UI-N,UL-L,UL-E) 0~440V ±(3%+3V) 1V
  • Frequency: DC,45~65Hz ±1Hz 1Hz
  • Loop Resistance(RL): 0.1~2000Ω ±(10%+0.2d) 0.1Ω
  • RL Current Test: 0.51 IΔN ±(10%+10d) 0.5IΔN
  • Multiplying Power of Measuring Current: x0.5,x1,x5
  • Current Level(IΔN)|: 10mA,30mA,100mA,300mA,500mA
  • Trigger Phase Angle: 0°or 180°
  • Auto Power Off √
  • Display Back Light √
  • Low Battery indication √
  • USB2.0 Interface √
  • Data logging And recall 100groups

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
