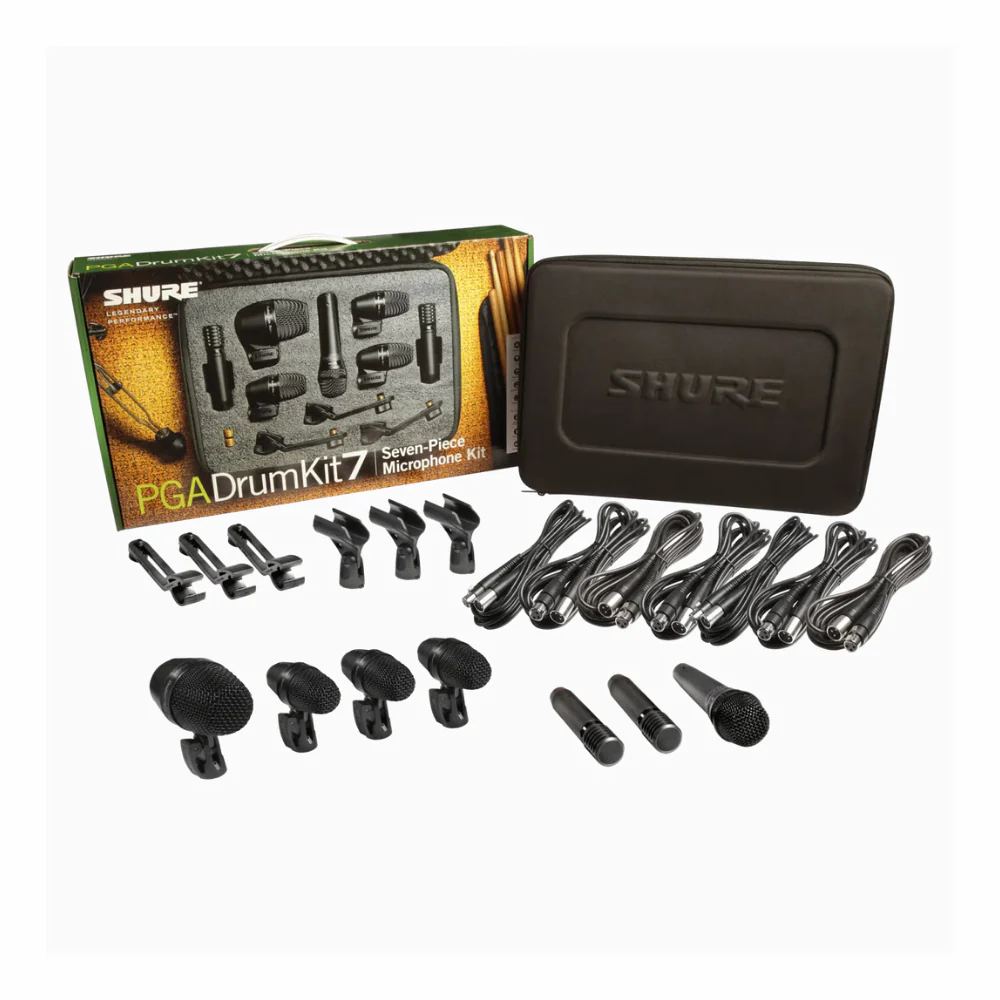

The PGADRUMKIT7 Drum Microphone Kit is a complete package of professional quality microphones, designed to provide excellent sound for full drum kit performance and recording.Ā
Ā
Included in the PGADRUMKIT7 are:Ā

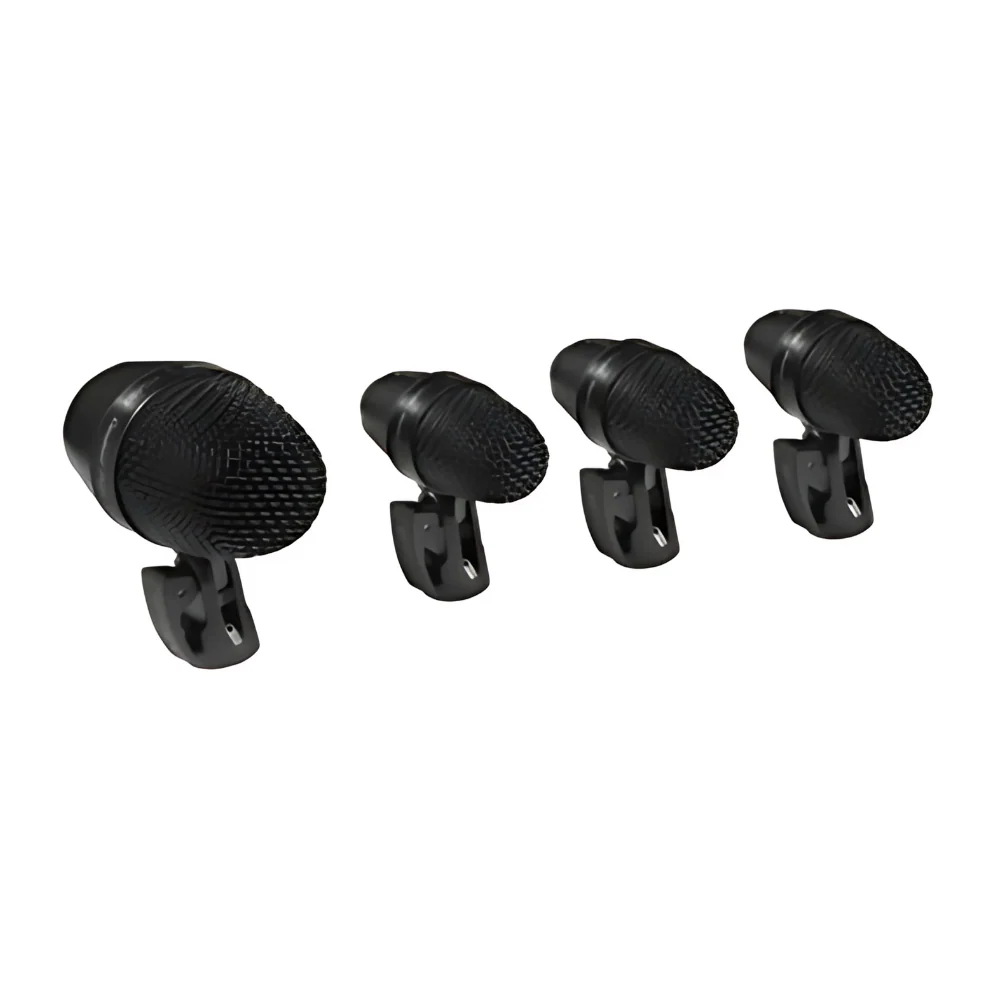

- 1x PGA52 Kick Drum Microphone
- 3x PGA56 Drum Microphones

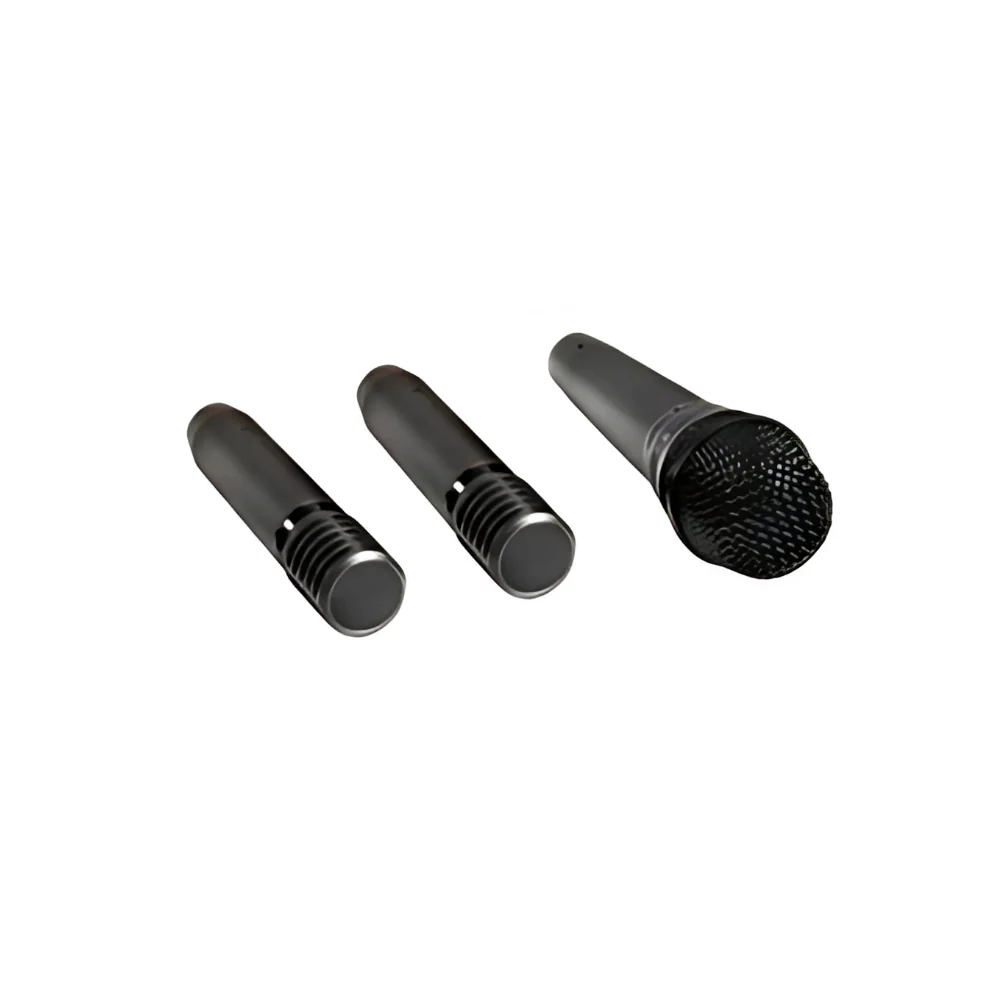

- 1x PGA57 Cardioid Ā Instrument Microphone
- 2x PGA81 Condenser Instrument Microphones

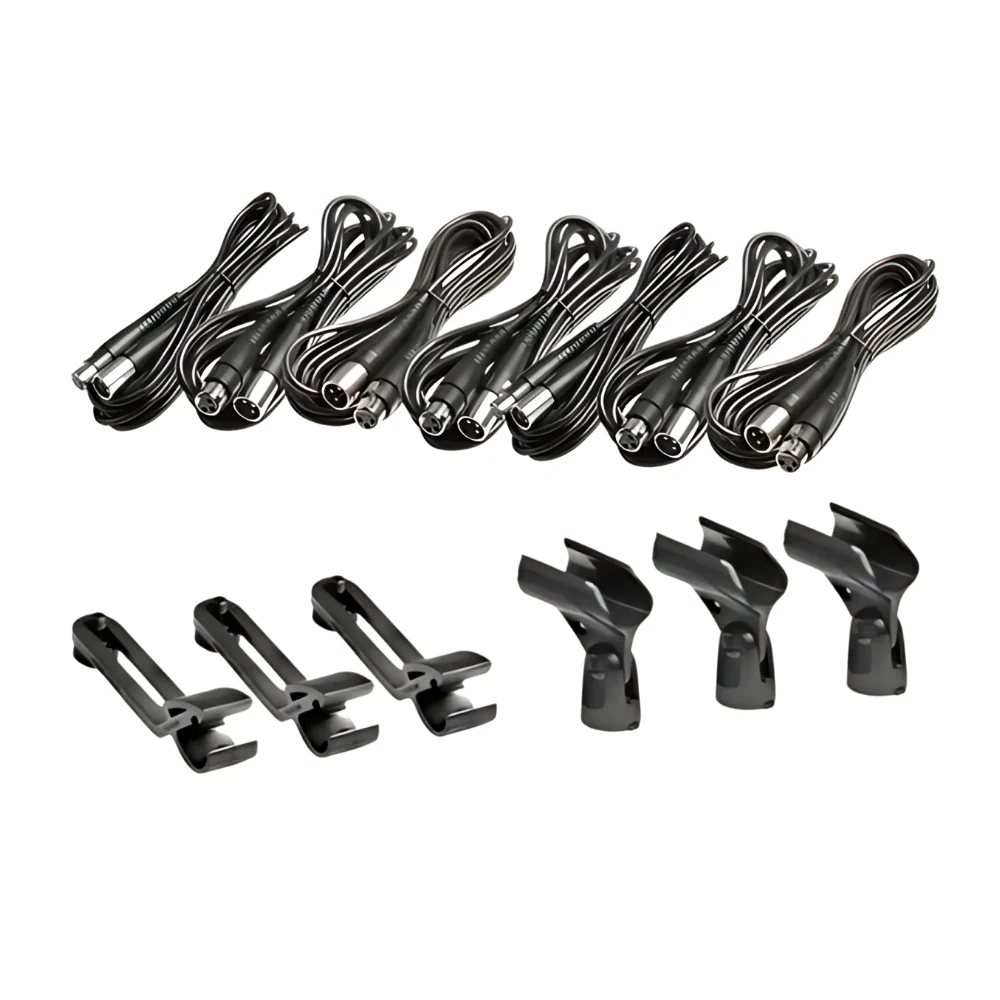

- 3x Drum Rim Mounts
- 7x XLR-XLR cables

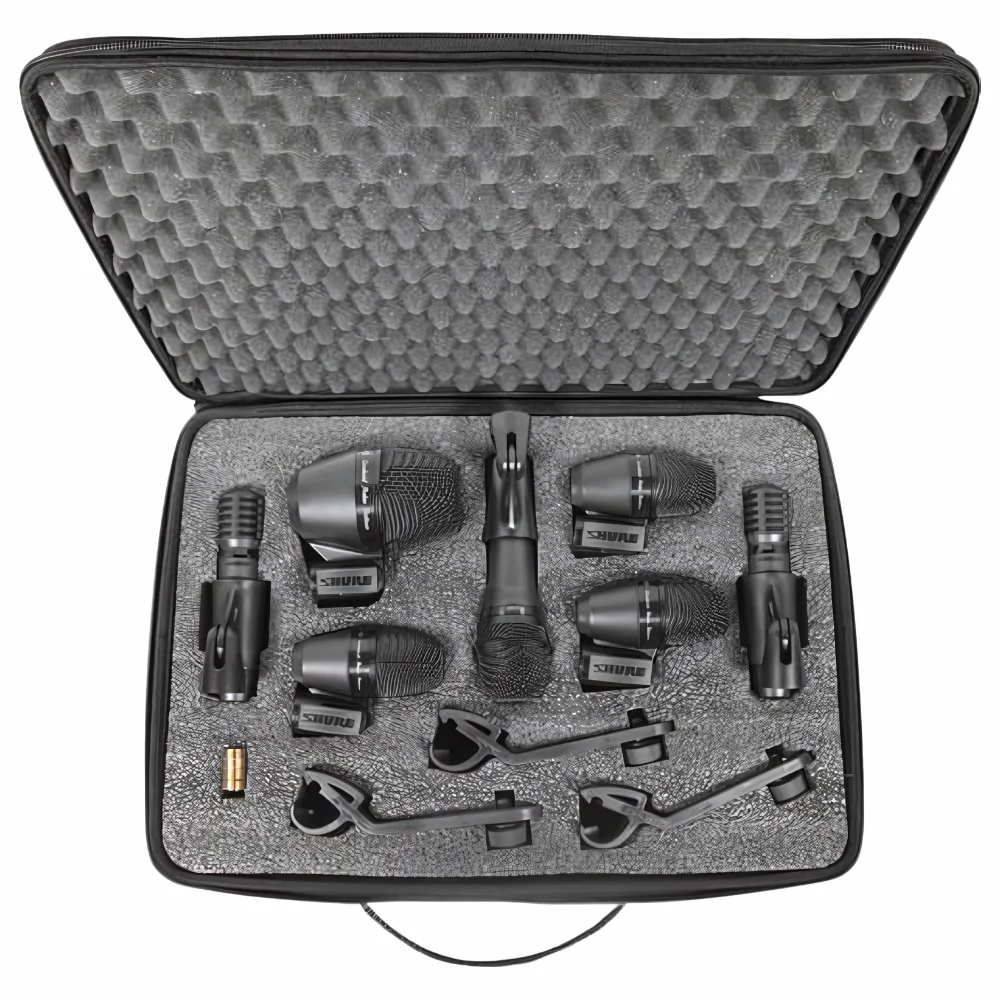

- 1x Carrying Case
Ā
Features:
- 7x Drum Performance and Recording Mics
- PGA52 Cardioid Dynamic Kick Drum Mic
- 3x PGA56 Cardioid Dynamic Snare/Tom Mic
- 2x PGA81 Condenser Microphones
- PGA57 Cardioid Dynamic Instrument Mic
- 3x A25D Break-Resistant Microphone Clip
- 3x AP56DM Drum Rim Mounts
- 7x 15' XLR Cables
- Zippered Carrying Case
Ā
Specifications:
- Type: Dynamic (moving coil)
- Frequency Response:
- PGA52: 50 Hz to 15 kHz
- PGA56: 50 Hz to 15 kHz
- PGA57: 70 Hz to 15 kHz
- PGA81: 40 Hz to 18 kHz
Ā
- Polar Pattern: Cardioid
- Output Impedance: Ā
- PGA52: 150 ohms
- PGA56: 200 ohms
- PGA57: 150 ohms
- PGA81: 600 ohms
- Cable: None
- Sensitivity:
- PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- PGA81: -48 dBV/Pa (3.8 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Output Connector: 3-pin XLR male
- Power Requirements:
- PGA52: N/A
- PGA56: N/A
- PGA57: N/A
- PGA81: 48 VDC phantom power (2.0 mA)
- Operating Temperature: -20 to 165Ā°F (-29 to 74Ā°C)
- Operating Humidity: 0 to 95%
- Weight:Ā
- PGA52: 16.01 oz (454 g)
- PGA56: 10.12 oz (287 g)
- PGA57: 9.9 oz (280 g)
- PGA81: 6.6 oz (186 g)
