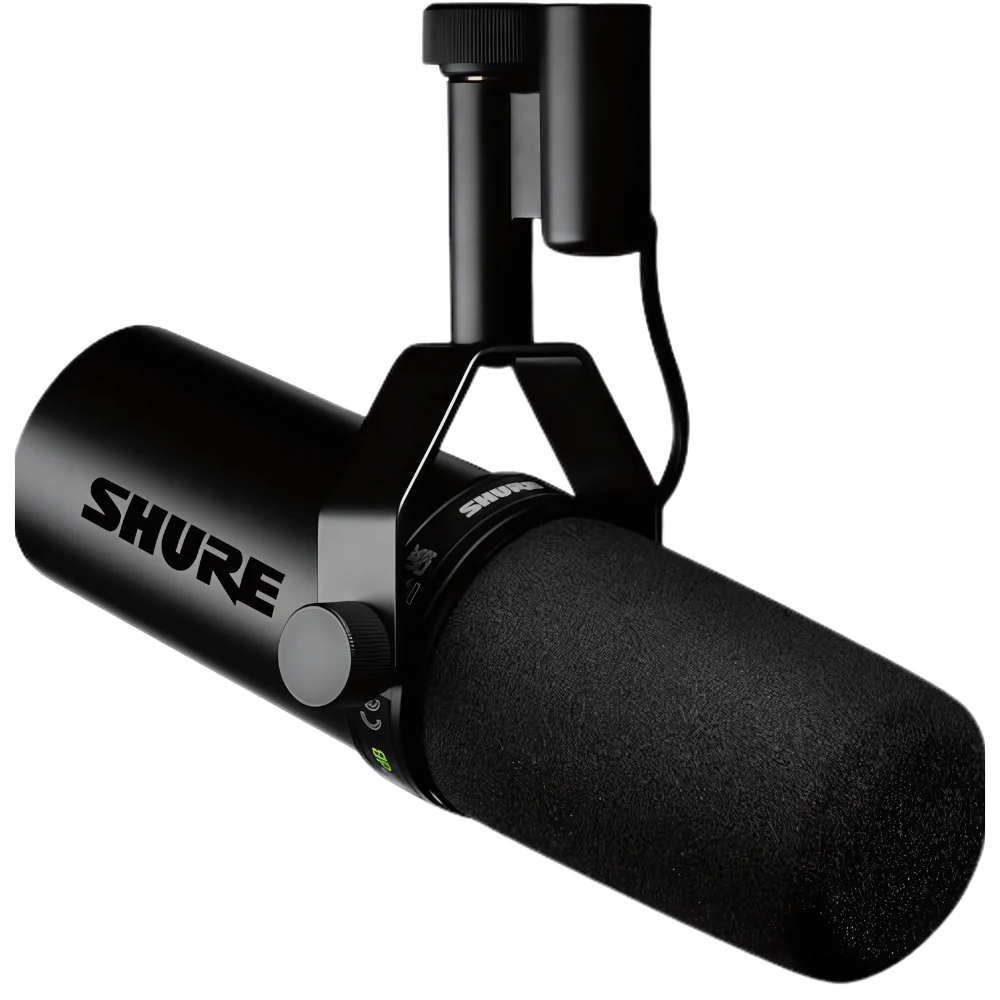

An audio icon reborn, the Shure SM7dB delivers the legendary sound of the SM7B with the convenience of a built-in preamp for powerful outputāno inline booster required. With its smooth, flat, and wide-range frequency response, the SM7dB captures vocals and instruments with natural clarity, while its specially engineered dynamic capsule adds richness in the lower frequencies for a polished, broadcast-ready sound. Perfect for podcasters, streamers, musicians, and professional audio applications, the SM7dB makes achieving studio-quality results easier than ever.
Ā
Specifications
Microphone
- Polar Pattern: Cardioid
- Element Type: Dynamic
- Sound Field: Mono
- Orientation: End Address
- Controls: Gain/Sensitivity, Mid Boost, Low Cut/HPF
- Pad: No
- Circuitry: Solid-State
Performance
-
Frequency Response: 50 Hz to 20 kHz
-
Equivalent Noise Level: 130 dBV/Pa (A-Weighted, Phantom Power, Typical)
- Sound Field: Mono
Connectivity
- Analog Output: 1x XLR 3-Pin Male
Power
-
Power Sources: Phantom Power
-
Operating Voltage: 48 V (Phantom Power)
Physical
-
Mounting Thread Size: 5/8"-27 Female (3/8"-16 Female with Included Adapter)
- Dimensions: H: 5.9 x W: 3.8 x L: 7.8"
- Weight: 1.7 lb / 764 g
Features
- Polar Pattern: Cardioid
- Preamp Gain: +18 dB or +28 dB
- Frequency Response: Flat, wide-range
- Preamp Bypass: Reverts to SM7B performance
- EQ Controls: Bass roll-off, presence boost
- Hum Rejection: Optimized shielding
- Shock Isolation: Internal air suspension
- Pop Filter: Built-in
- Mounting: Yoke with captive stand nut
- Build Quality: Rugged, reliable
