Overview
SmallRig Video Head CH10 3259B is a compact and portable video head designed for shooting video.Unlike other traditional video heads, it is only 70mm in height and features a 37mm-diameter baseplate, compact and easy to carry around. Fixed damping allows a smooth operation experience. It can be tilted +90°/-55° and swiveled 360° for multi-angle shooting. It comes with a removable anti-slip operation lever and can be used for either left handle or right handle, and with an Arca-type quick release plate for a quick switch between handheld shot and tripod shot. The head also includes a built-in screwdriver.
Designers: Tracy Joy
Note:
1. Avoid using it in sandy and dusty environment, otherwise there is a risk of damage
2. Load capacity: 3kg
3. 37mm head base
4. The head base has a 3/8"-16 threaded hole with a 1/4"-20 threaded adapter.
Compatibility:
-
Arca-Swiss Quick Release Plate
Specifications
-
Product Dimensions (excluding lever): 70 x 75 x 50mm
-
Package Dimensions: 240.0 x 80.0 x 76.0mm
-
Product Weight: 286.0 ± 5.0g
-
Package Weight: 375.0 ± 5.0g
-
Load Capacity: 3kg
-

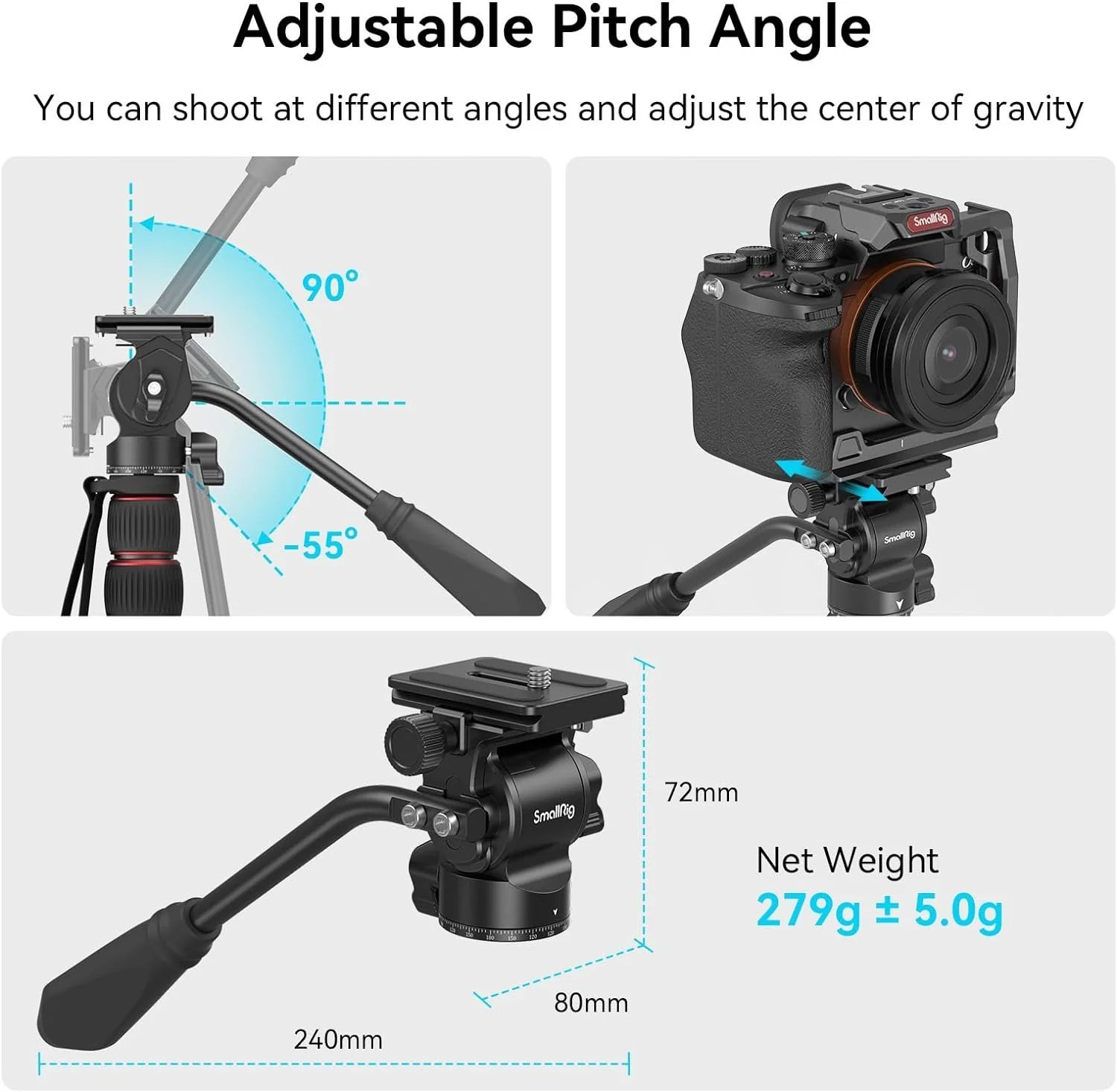

Tilt: +90°/-55°
-
Tilt Damping: Non-adjustable
-
Independent Tilt Lock: Yes
-
Panorama: 360°
-
Independent Panning Lock: Yes
-
Base Diameter: 37mm
-
Lever Length: 200mm
-

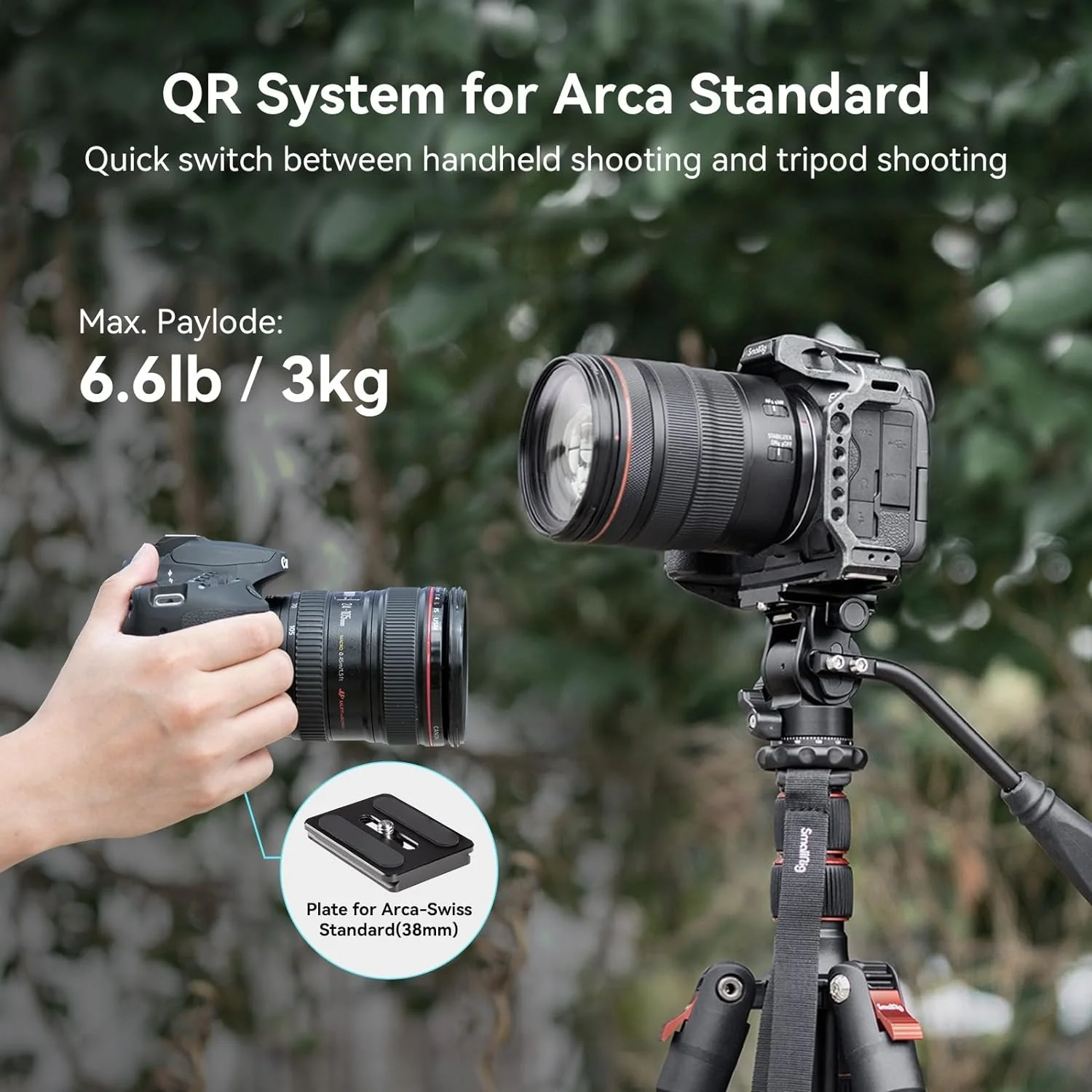

Quick Release Plate Type: Arca-Swiss
-
Top Attachment: 1/4"-20 Screw
-
Material(s): Aluminum Alloy, POM, Stainless Steel, Silicone
