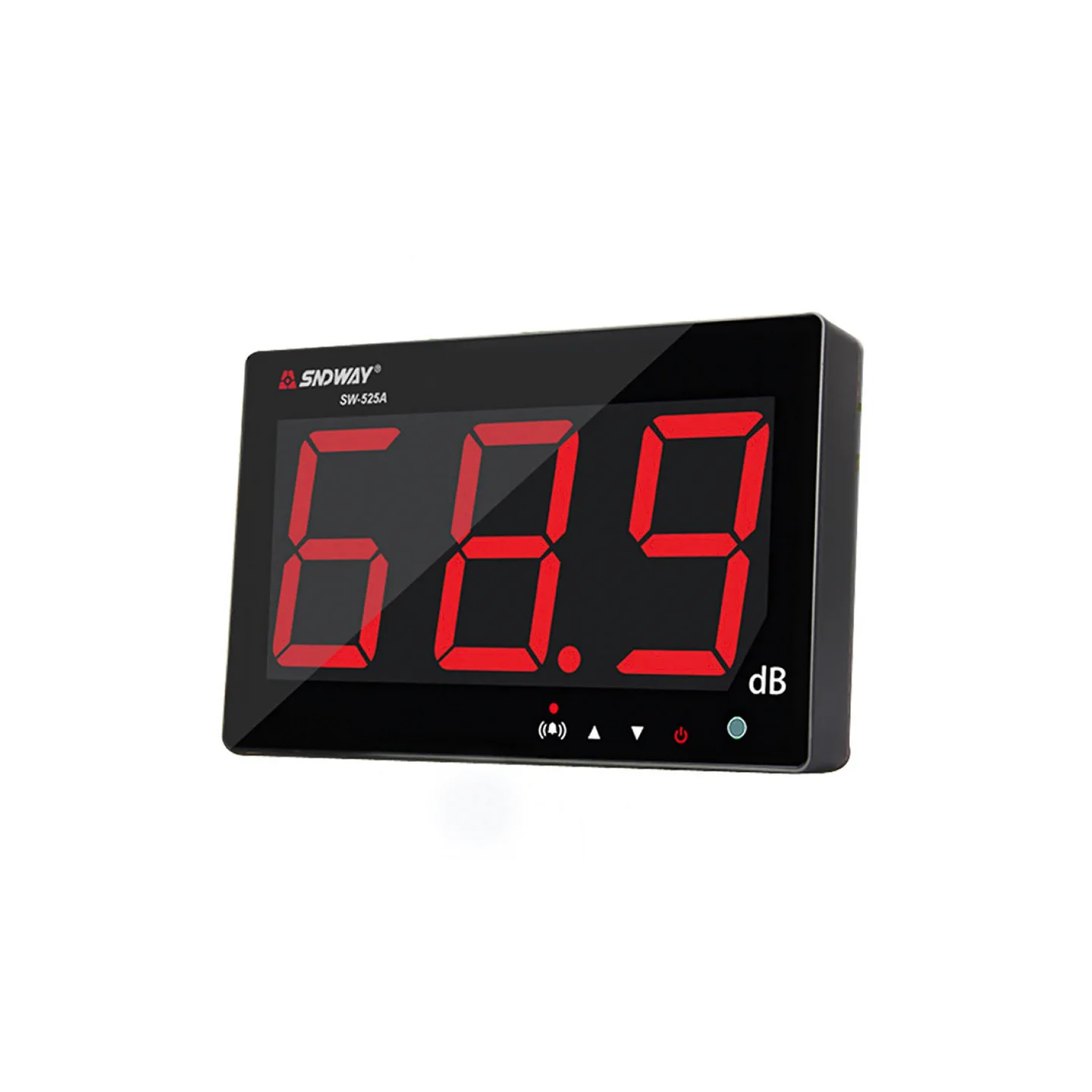

Sndway SW-525A Sound Level Meter 30~130db Noise Decibel Large Screen Wall Mount Display with 6mm Condenser Microphone, Flashing Indicator and Buzzer Alarm Function
Measurement range: 30 to 130 dB, the product operation is very convenient, it can be used alone by connecting the power supply (additional power supply needs 5V 1A) accuracy: Ā± 1.5 dB (pressure level reference sound level, 94 dB @ 1 kHz), frequency response range: 31.5 Hz ~ 8.5 kHz.
9.6 inch large LCD screen with backlight, powered by DC 5V 1A Micro USB, this meter can be used to measure noise in various occasions and fixtures, such as factories, offices, homes, traffic routes, audio, air coolers conditioning etc.
Alarm switch setting: short press the "horn" button to turn off the alarm, and the red light will turn off, then press the "horn" button to turn on the alarm, and the red light will turn on. In the normal measurement state, press the "horn" key to enter the alarm setting, adjust the alarm value through the up and down keys, short press the "horn" key to save the alarm value. alarm, or short press "power key" to cancel the setting.
Note: power on, short press the "Switch Machine" button to turn off, press the "Switch Machine" button, automatic boot function: the product will automatically turn on when connected to the power supply, press the "Switch Machine" button", it will turn off if the LCD screen appears. The numbers on the screen do not jump, and characters will appear. You need to restart the machine. If you have any questions, please contact us in time.
Specifications:
- Brand: Sndway
- Model: SW-525A
- Measurement range: 30 to 130dB
- Accuracy: 1.5 dB (reference sound pressure level, 94 dB at 1 kHz)
- Frequency Range: 31.5Hz to 8.5KHz Frequency
- Weighting: A
- Response Time: Fast
- Microphone: 6mm Condenser Microphone
- Display: 3 pieces - 3 inch digital display
- Resolution: 0.1 dB (<100 dB), 1 dB (> 100 dB)
- Alarm Reminder: Yes, Sound + Display
- Alarm Output: Yes
- Storage Function: NO
- Communication: NO
- Power Supply: DC 5V 1A Micro USB Outlet
- Operating Condition: 0 to 40C, 10 to 80% RH
- Storage: -10A 60C, 10-70% RH
Ā
