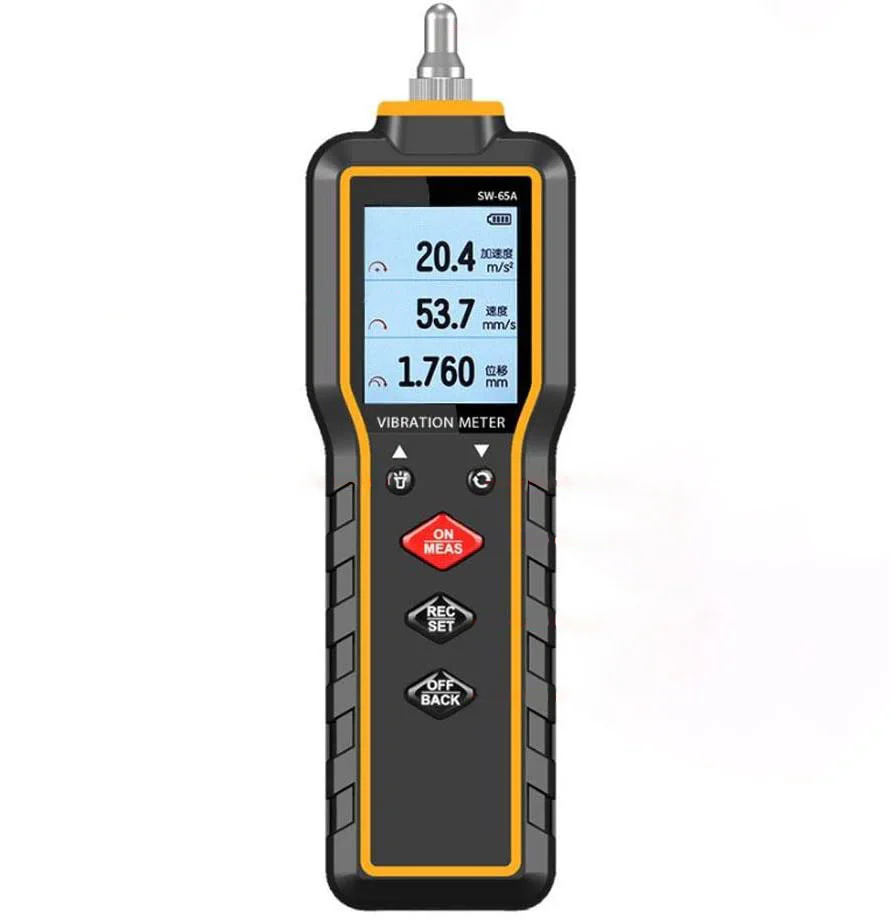

[CLEARANCE] Sndway SW-65A Portable Digital Vibration Meter Tester Measuring Device with LCD Display, Flashlight, Data Storage Key, Shut Down/Back Button

[CLEARANCE] Sndway SW-65A Portable Digital Vibration Meter Tester Measuring Device with LCD Display, Flashlight, Data Storage Key, Shut Down/Back Button

Overview:

Vibration testing is a crucial method of device health monitoring and malfunction diagnosis. And improve production safety, product quality and production efficiency. Acceleration measurement: 0.3-200m/s2 (peak value); Speed ā€‹ā€‹measurement range: 0.1-200mm/s (valid value in real time); Displacement measurement: 0-2mm (maximum peak value). The application obtains a piezoelectric accelerated sensor that converts the vibration signal into electrical signal, the device works by processing and analyzing the input signal, and displays the vibration acceleration, speed, displacement value on the screen. It is widely used in machine manufacturing, electric power, and vehicle manufacturing fields.

Specifications:
  • Brand: Sndway
  • Model: SW-65A
  • Product Type: Vibrometers
  • Color: Black
  • Material: Plastic
  • Measurement: 0.3-200m/s2 (peak value)
  • Low frequency acceleration measurement frequency range: 10Hz~1KHz
  • High frequency acceleration measurement frequency range: 1KHz~10KHz
  • Speed measurement frequency range: 10Hz~1KHz
  • Displacement measurement frequency range: 10Hz-500Hz
  • Data refresh time: 500m/s
  • Memory: 200pcs
  • Battery life: Continuous use of more than 4 hours
  • Working humidity: 20%RH-80%RH
  • Operating temperature: 0'C-50'C
  • Storage temperature: -20'C-60'C
  • Storage humidity: 20%RH-80%RH





Ā

$99.27
[CLEARANCE] Sndway SW-65A Portable Digital Vibration Meter Tester Measuring Device with LCD Display, Flashlight, Data Storage Key, Shut Down/Back Buttonā€”
$99.27

Product Information

Shipping & Returns

Description

Overview:

Vibration testing is a crucial method of device health monitoring and malfunction diagnosis. And improve production safety, product quality and production efficiency. Acceleration measurement: 0.3-200m/s2 (peak value); Speed ā€‹ā€‹measurement range: 0.1-200mm/s (valid value in real time); Displacement measurement: 0-2mm (maximum peak value). The application obtains a piezoelectric accelerated sensor that converts the vibration signal into electrical signal, the device works by processing and analyzing the input signal, and displays the vibration acceleration, speed, displacement value on the screen. It is widely used in machine manufacturing, electric power, and vehicle manufacturing fields.

Specifications:
  • Brand: Sndway
  • Model: SW-65A
  • Product Type: Vibrometers
  • Color: Black
  • Material: Plastic
  • Measurement: 0.3-200m/s2 (peak value)
  • Low frequency acceleration measurement frequency range: 10Hz~1KHz
  • High frequency acceleration measurement frequency range: 1KHz~10KHz
  • Speed measurement frequency range: 10Hz~1KHz
  • Displacement measurement frequency range: 10Hz-500Hz
  • Data refresh time: 500m/s
  • Memory: 200pcs
  • Battery life: Continuous use of more than 4 hours
  • Working humidity: 20%RH-80%RH
  • Operating temperature: 0'C-50'C
  • Storage temperature: -20'C-60'C
  • Storage humidity: 20%RH-80%RH
