Tenveo KB200PRO PTZ Camera Controller with 4D Joystick, Multi Interfaced, PoE Support, Network / Alog Controls, 5" LCD Display, 7 Camera Shortcuts, 1080p Max Resolution Support for Conferences, Livestreams, Meetings

Tenveo KB200PRO PTZ Camera Controller

with 4D Joystick, Multi Interfaced, PoE Support, Network / Analog Controls



Live streaming Joystick Stick Controller

KB200PRO PTZ camera controller is made for broadcast, professional video conferencing and live streaming. lt can control up to 255 PTZ cameras via LAN port or serial interfaces.



Single Cable Simplicity-PoE support

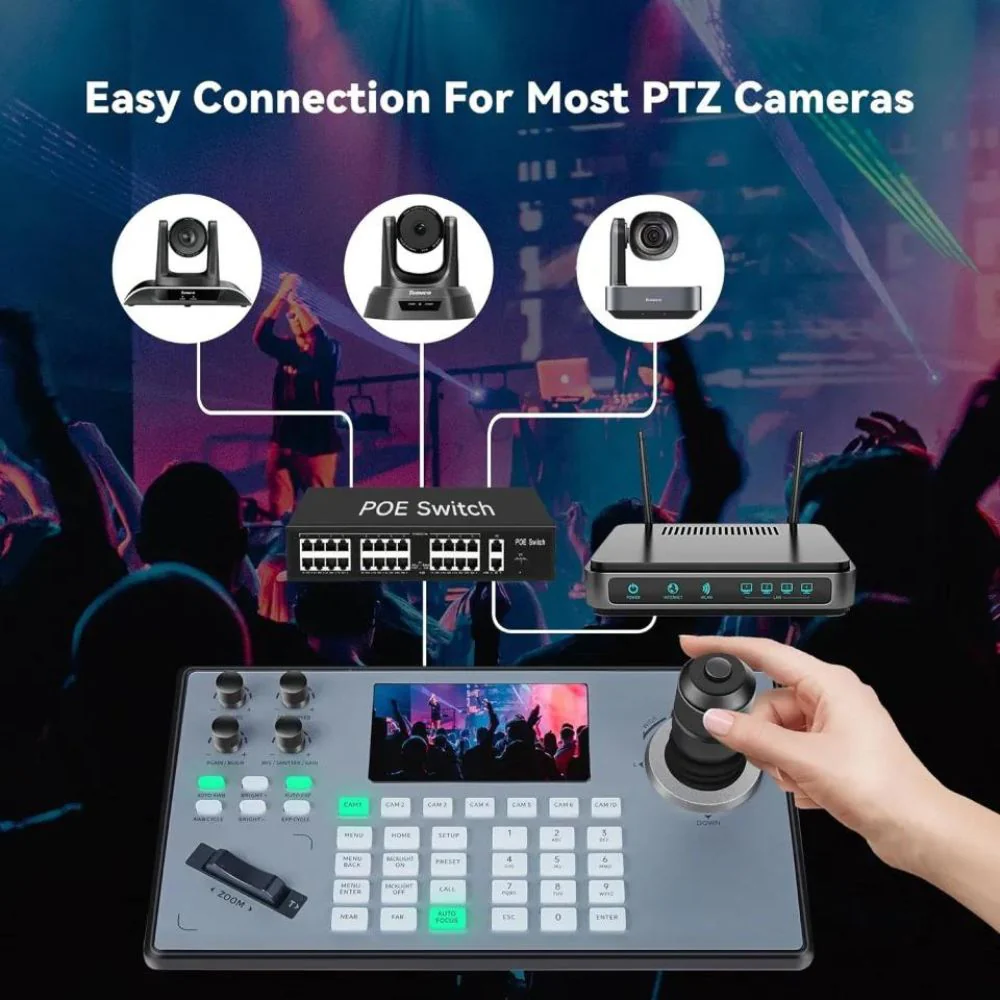

KB200 supports Power Over Ethernet (PoE) and NDI. Take control of cameras all across your network with a single Ethernet cable. Use PoE network switch to simplify your Joystick setup.

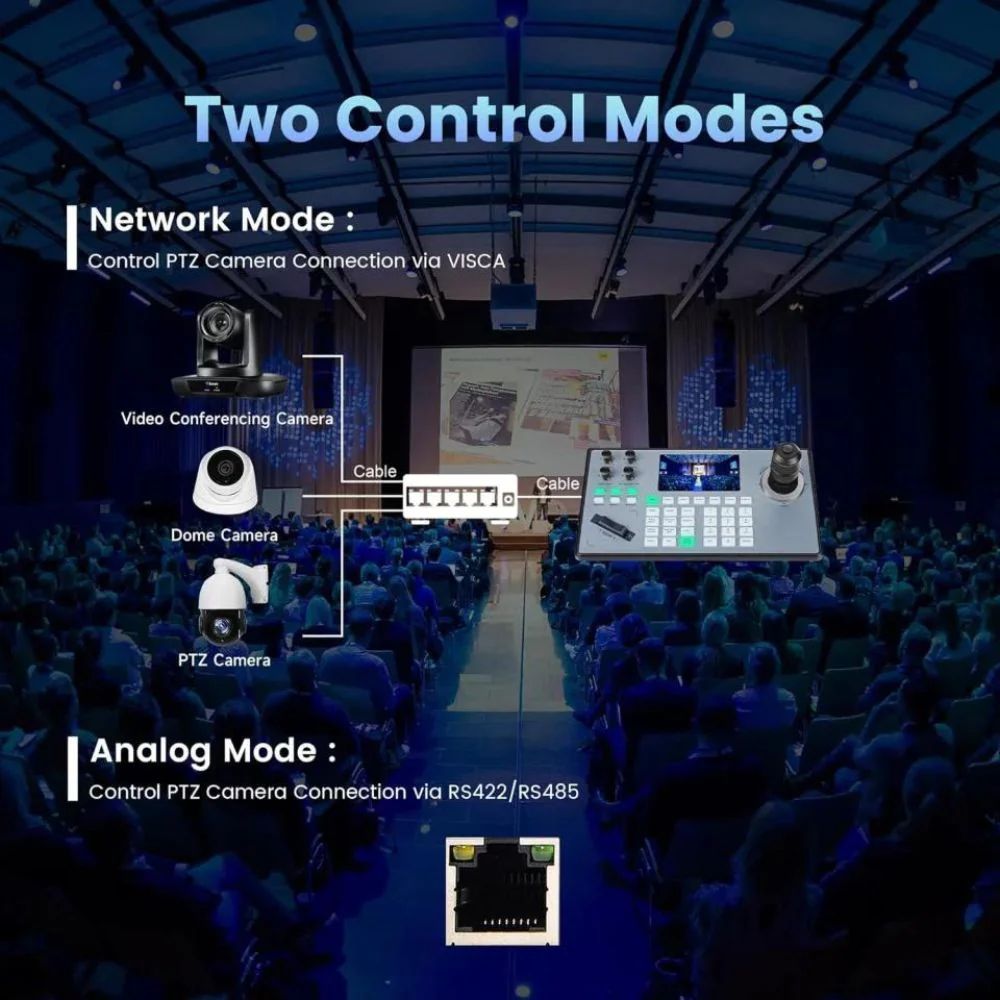

Multiple Control and Network Protocols

The joystick controller supports multiple control protocols: VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF.

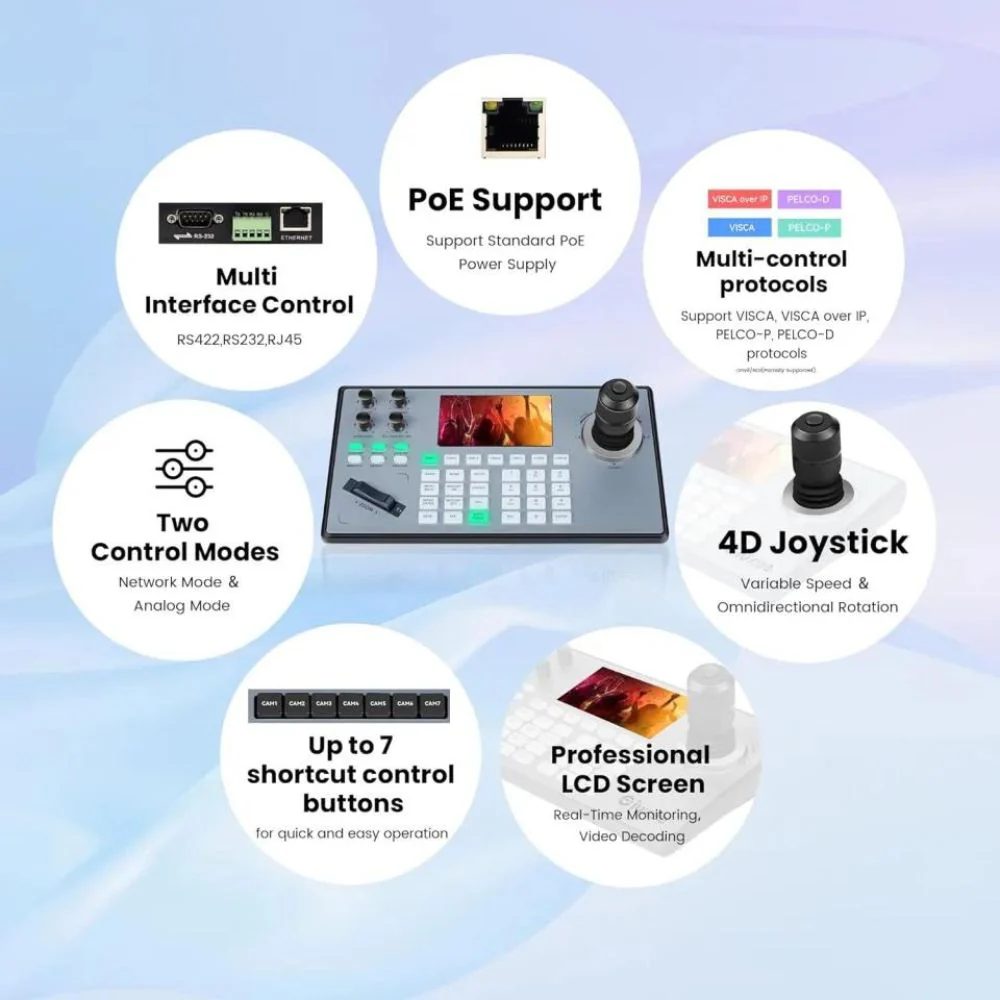

Features:

• Work with any PTZ cameras that use VISCA, PELCO-D or PELCO-P protocols
• Using joystick to control the Pan Tilt and Zoom (PTZ) function
• The joystick controller supports multiple control protocols: VISCA, Pelco via serial RS232 and RS422/RS485, ONVIF, NDI and Visca over iP . Visca is fully compatible.
• Single Cable Simplicity-PoE support
• PTZ Controller with LCD Display, Made for professional video conferencing. Use Tenveo 10X/20X/30x zoom Cameras and PTZ Controller together for a Huge space





Specifications:

• Brand: TENVEO
• Model: TEVO-KB200PRO
• Chip: His3536DV100
• System: Linux
• Max equipment: 999
• Decoding: H.265, H.264
• Resolution: MAX 1080P for 1 channel:1920*1080@30fps
• Protocol: VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF



Camera Control:

• Exposure Selection: YES
• White Balance: YES
• Backlight Control: YES
• Display status of WB, Iris, Gain, Shutter, Focus: YES
• Focus Model Selection: YES
• Auto Focus/Manual Focus: YES



User Interfaces:

• Display: LED
• Speed Control: YES
• Zoom Rocker: Yes
• Joystick Zoom Ring: Yes
• Programmable function buttons: 6

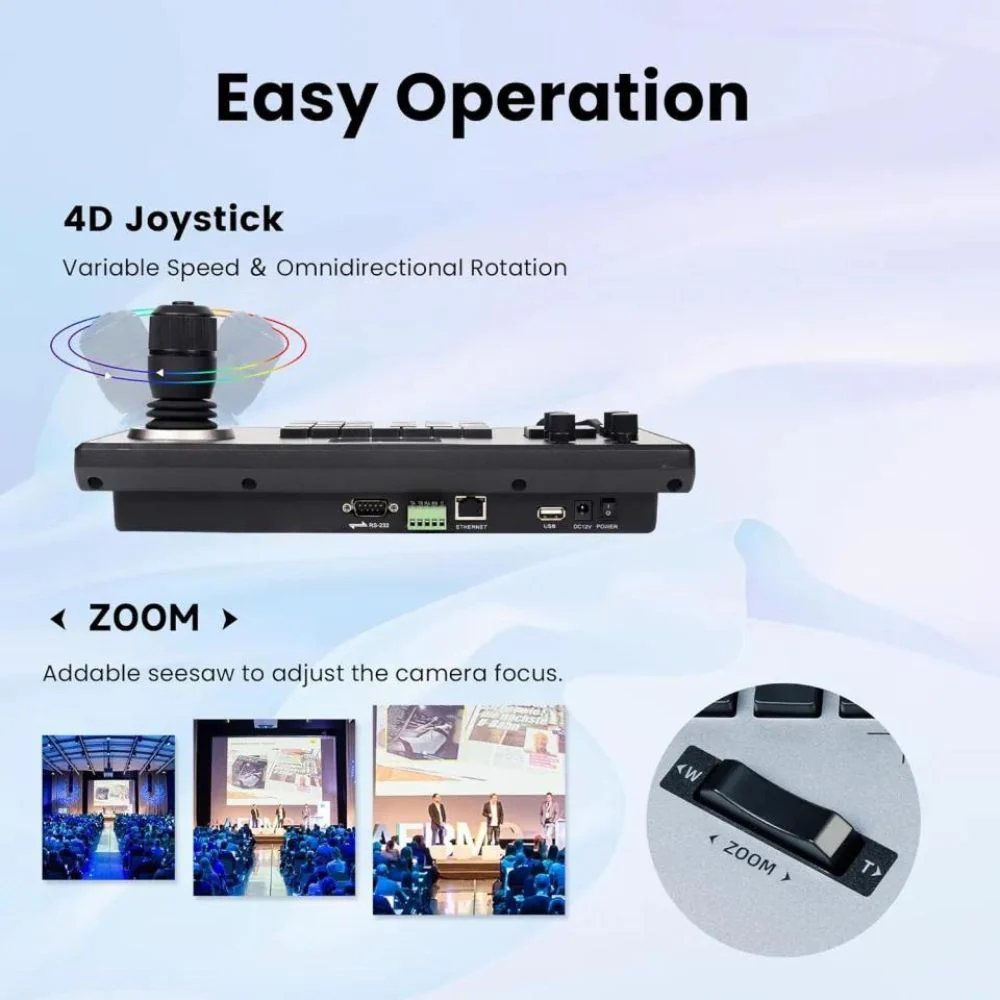

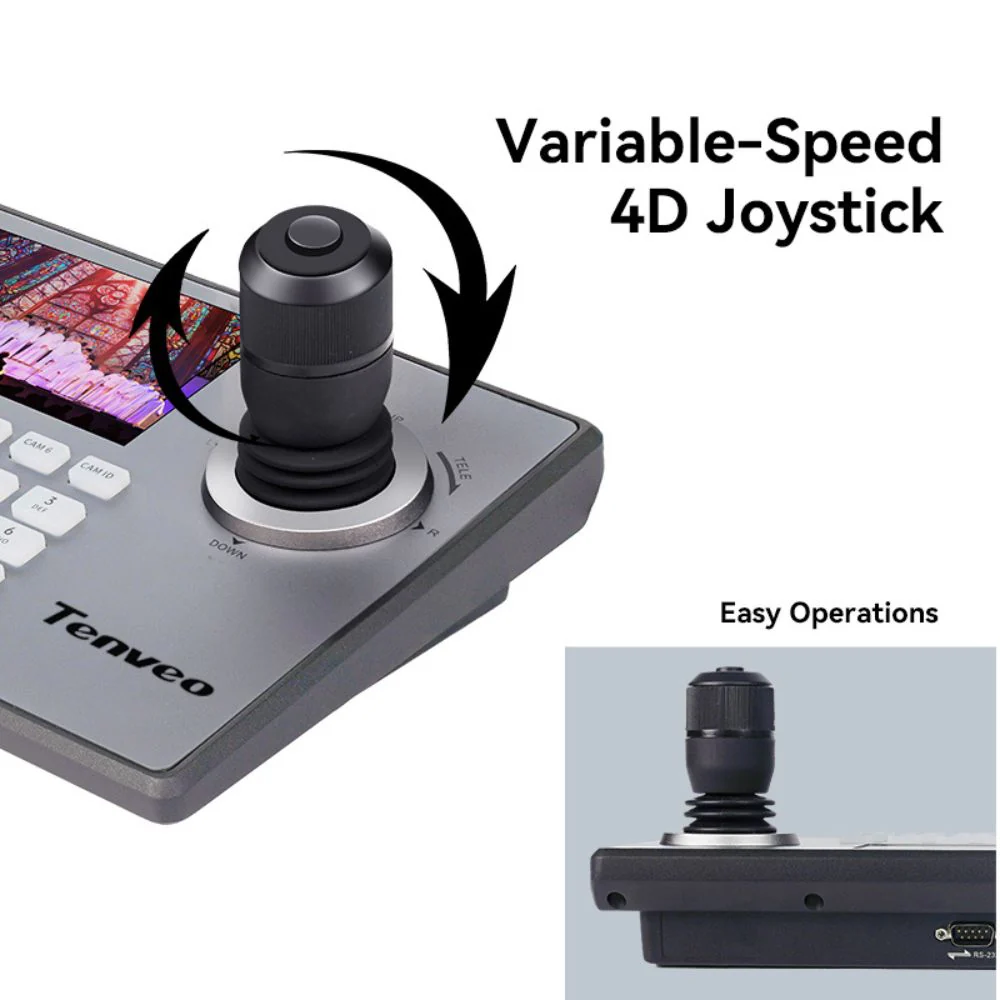

• Joystick: 4D

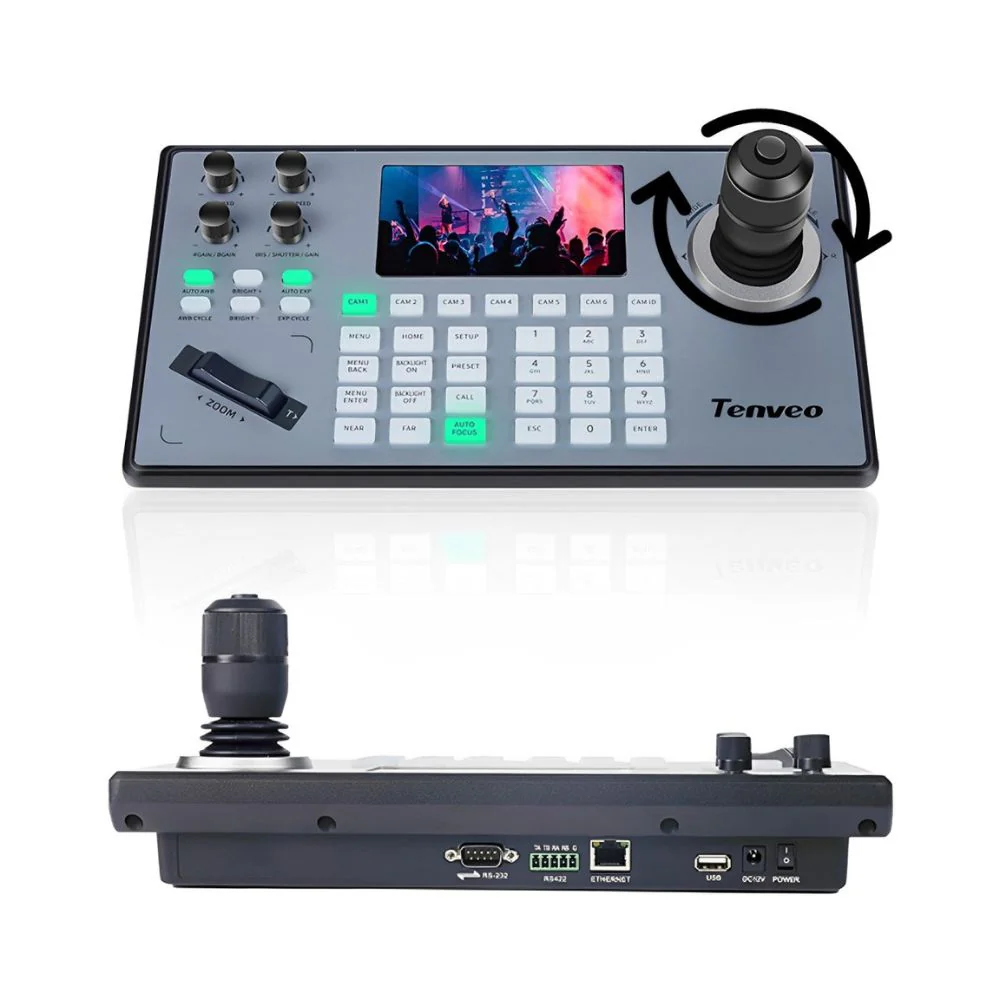

• Output: RS422(Reserved), RS232(Development port), RJ45
• Accessories: knob, Slicone button
• Beep: On/off

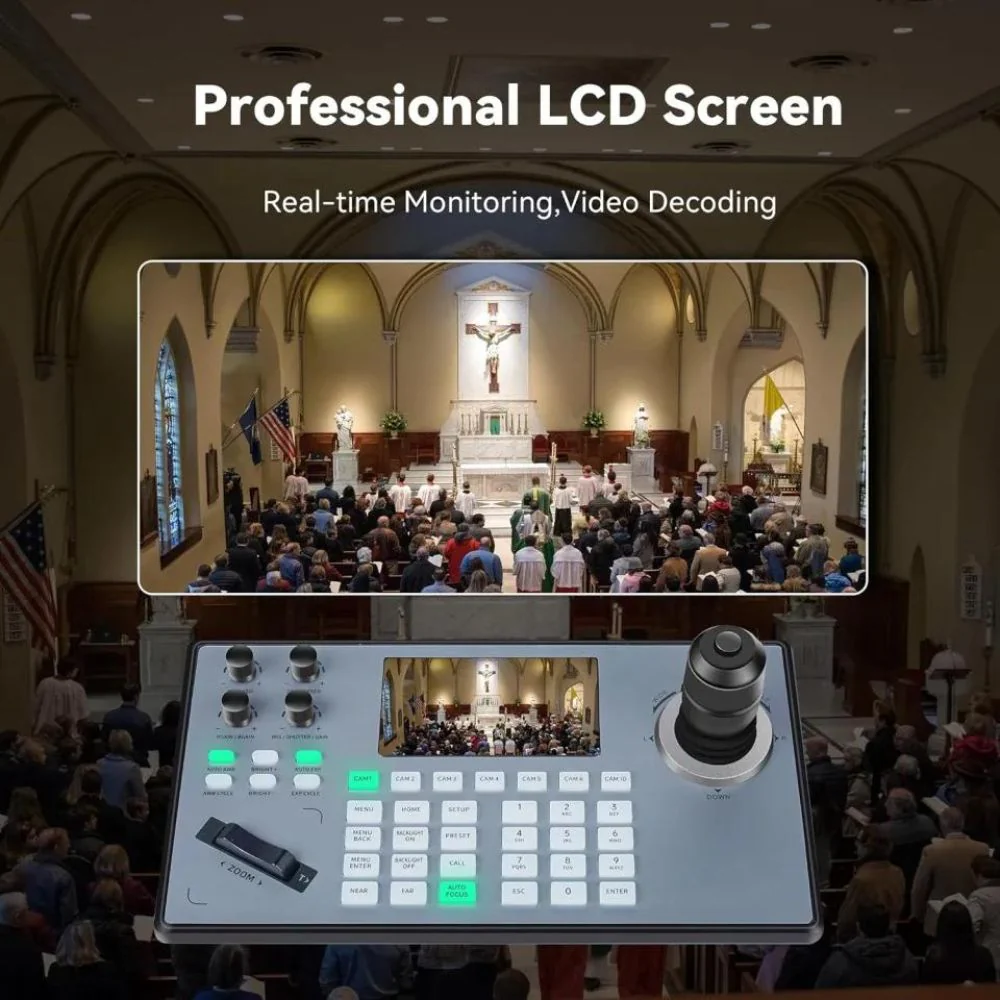

• Display TFT LCD: 720*1280
• Max Camera Control: Max 255 with multiple protocols including NDI/IP
