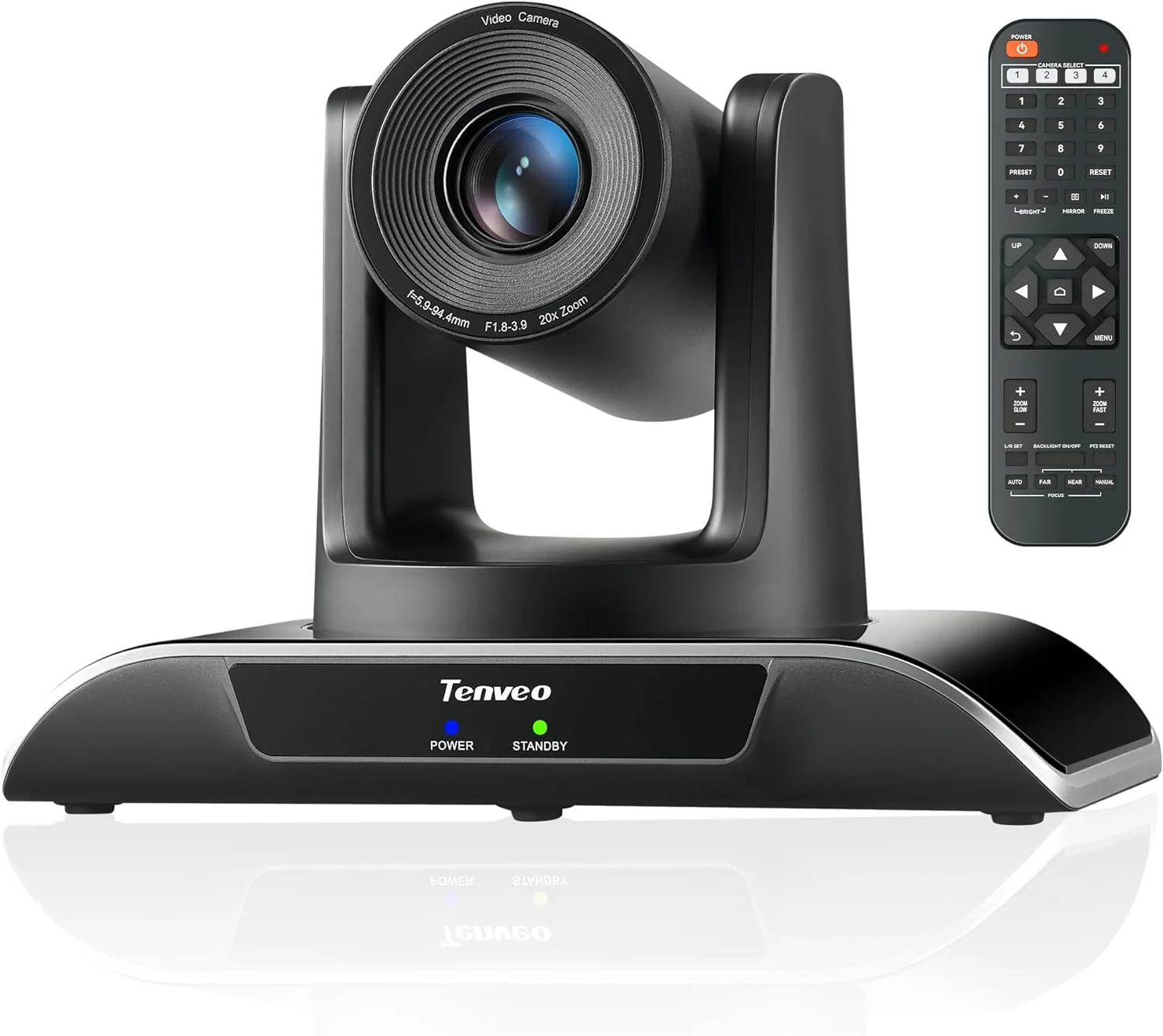

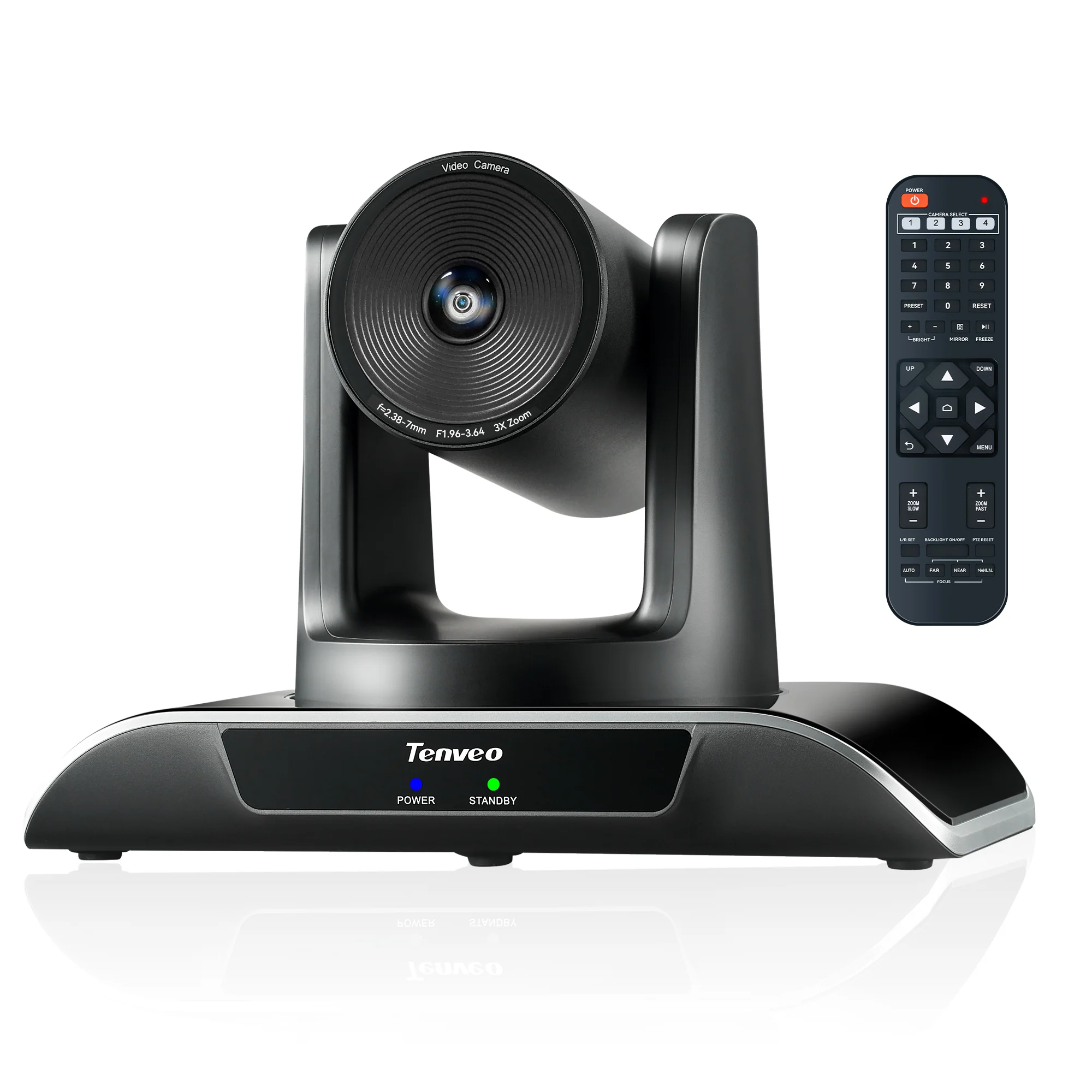

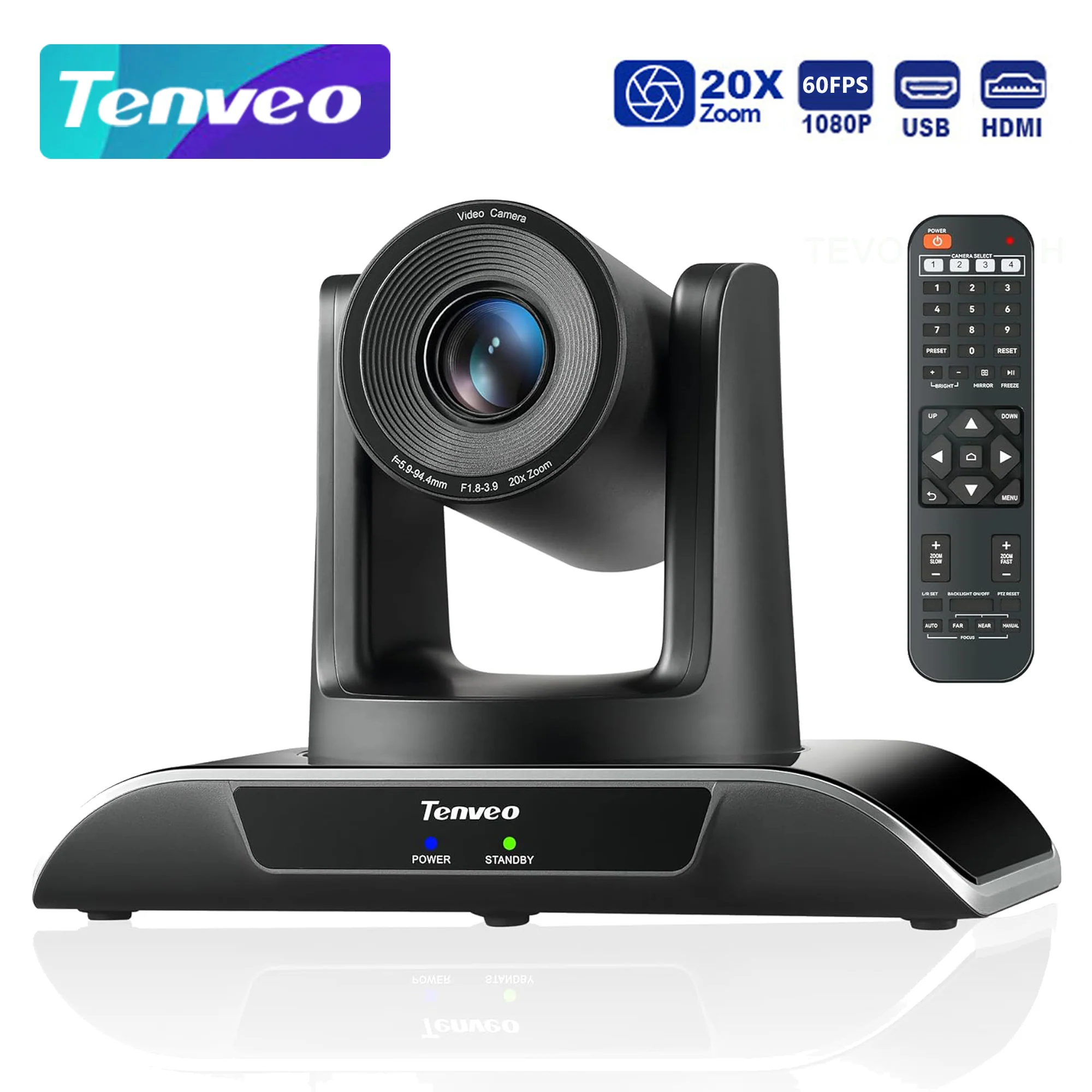

TENVEO PTZ Video Conference Camera
Features:
-

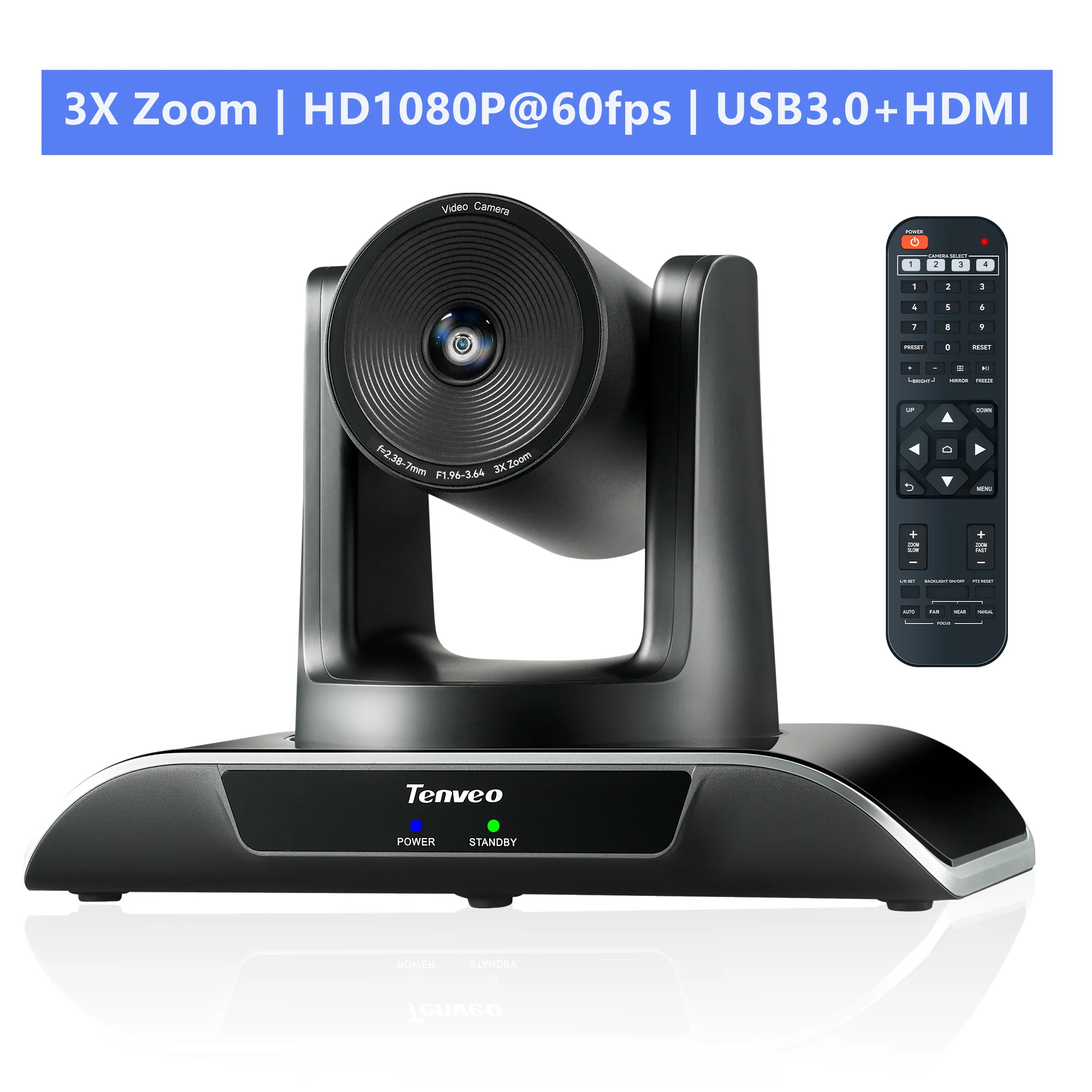

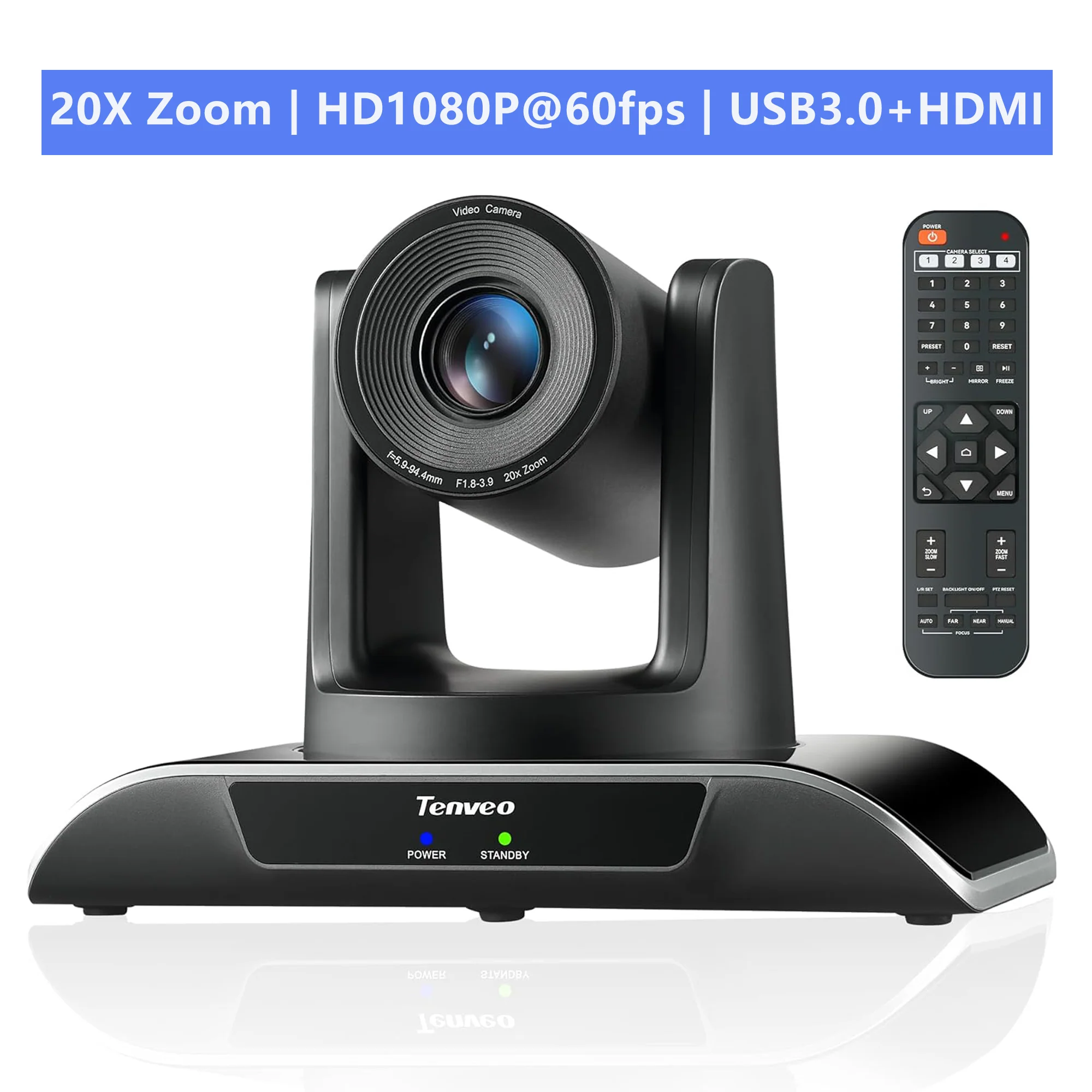

3x/10x/20x optical zoom
-
Sleek and intelligent design
-
Plug & Play USB2.0+HDMI Connectivity
-
Crystal clear HD1080P image quality
-
Preset: 10 via IR remote setting (255 via RS232)
-
59.8° Wide field of view with no video distortion
-
1/2.8″ HD color CMOS, 2.1MP (16:9) CMOS sensor
-
Superior quality with Full Glass Lens Material
-

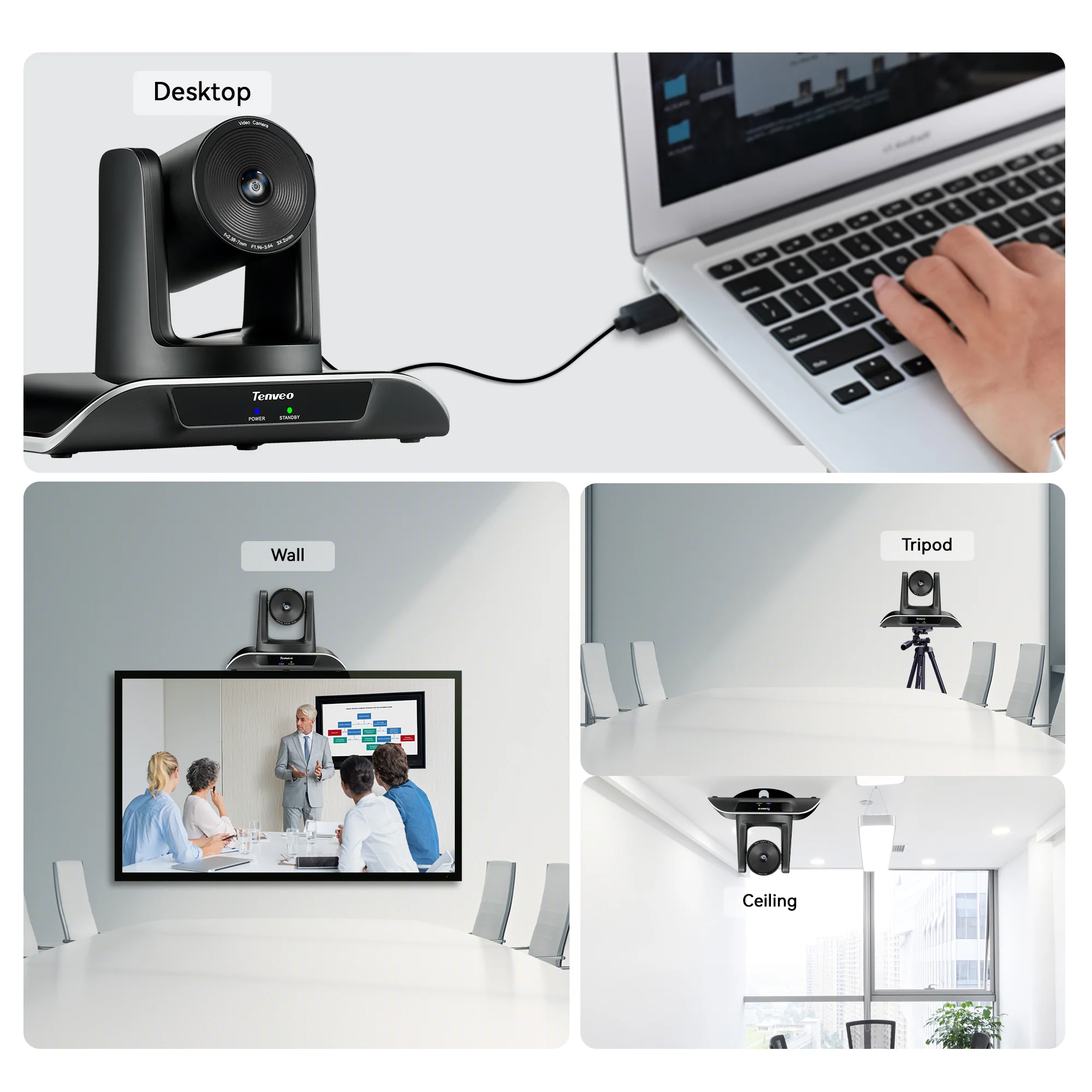

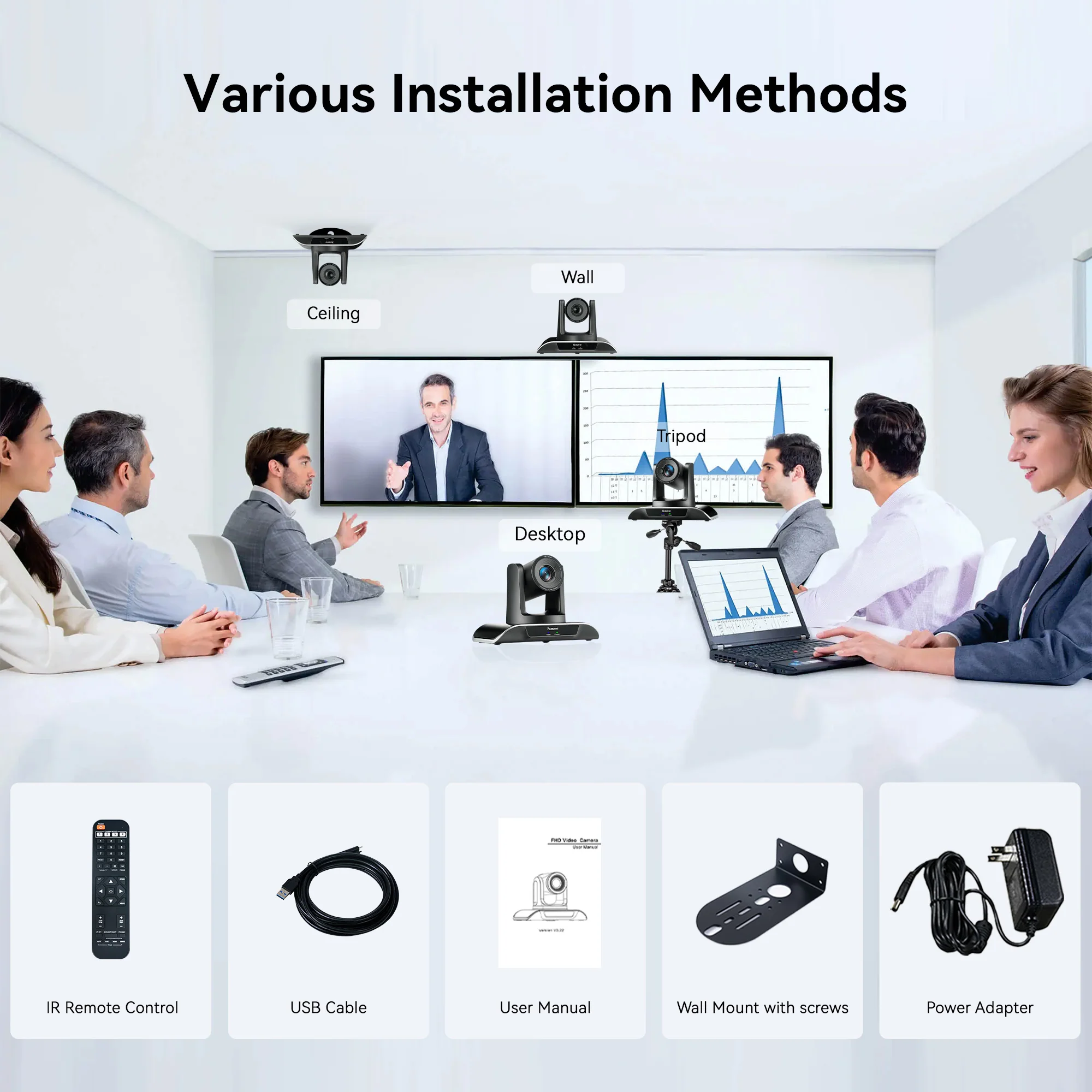

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-
Compatible with most leading video conferencing software and platform
-
Utilizing belt drive technology the PTZ is ultra quiet and fast, while being very smooth
Specifications:
- Brand: Tenveo
- Model: TEVO-VHDPRO 3X / 10X / 20X
- Sensor: 1/2.8 inch CMOS
- Effective pixel: 2.38 mega pixel
- Video output pixel: 1080p@60/50/30/25fps, 720p@60/50/30/25fps
- Zoom: 3x/10x/20x optical zoom
- Lens: f=5.9-94.4mm
- Aperture: F1.8-3.9
- Horizontal angle: 52.1°(W)-3.4°(T)
- Video output: USB, HDMI
- Video resolution; 1080P (1920 *1080)
- Siginal standard: NTSC/PAL
- Preset position: 64
- Control temernal: RS-232,RS485
- Shutter: 1/30s～1/10000s, auto
- Baud Rate: 38400/9600bps
- Control protocol: VISCA, PELCO-D, PELCO-P(RS-232, RS485)
- USB protocol: UVC1.1
- Minimal Illumination: 0.1Lux
- SNR: ≥50dB
- Video encoding format: H.264, MJPEG, YUV
- Horizontal Rotation: 350°（±175°）0.1°/s～100°/s
- Vertical Rotation: 90°（±45°）0.1°/s～80°s
- Power supply: DC 12V/2AAA
- Power comsumption: 12W

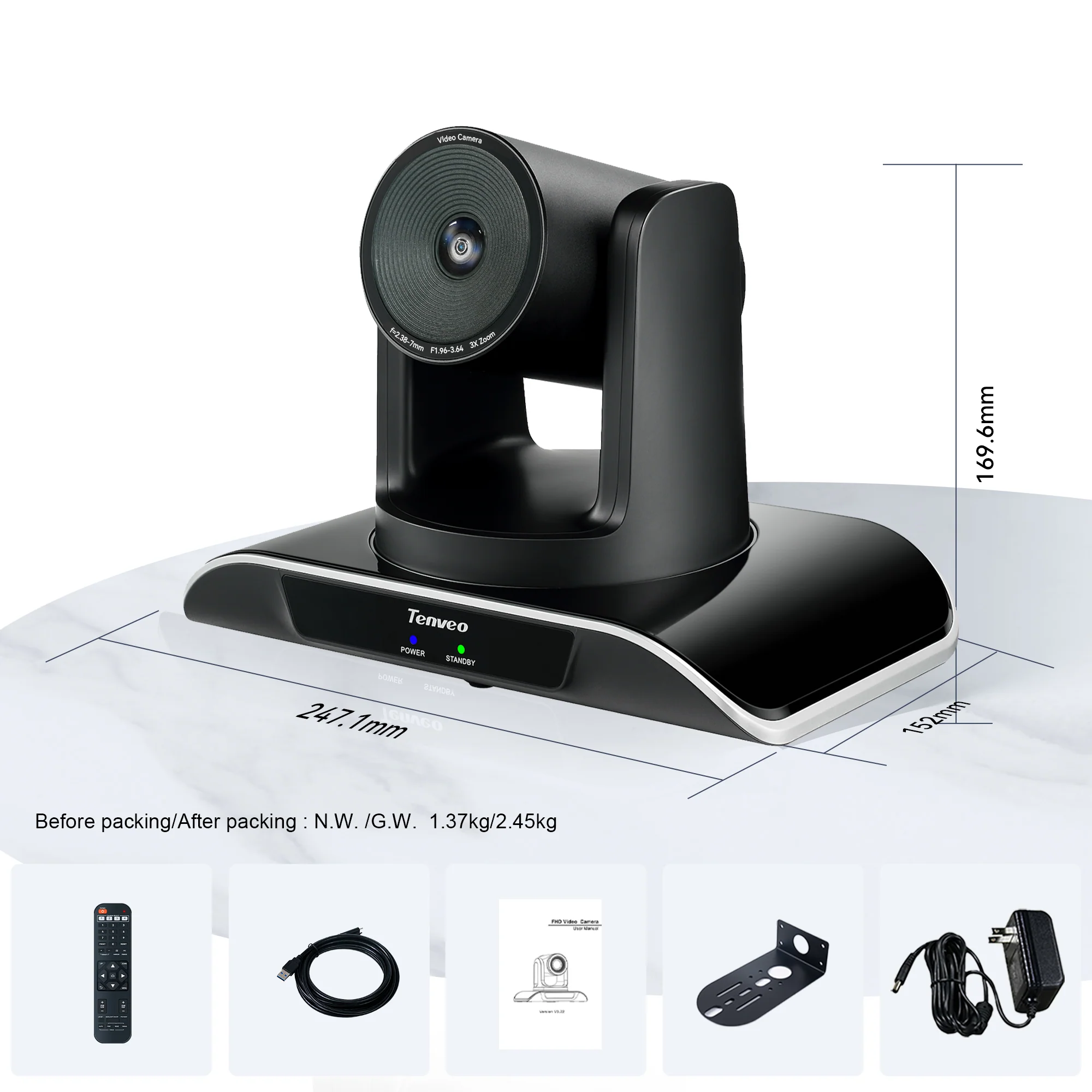

What's inside the box?
- 1 x User Manual
- 1 x HD Conference Camera
- 1 x DC 12 Votls Power Supply
- 1 x Wall Mount
- 1 x Remote Control
- 1 x Usb Cable 3.0
- 5 x Mounting Screws
