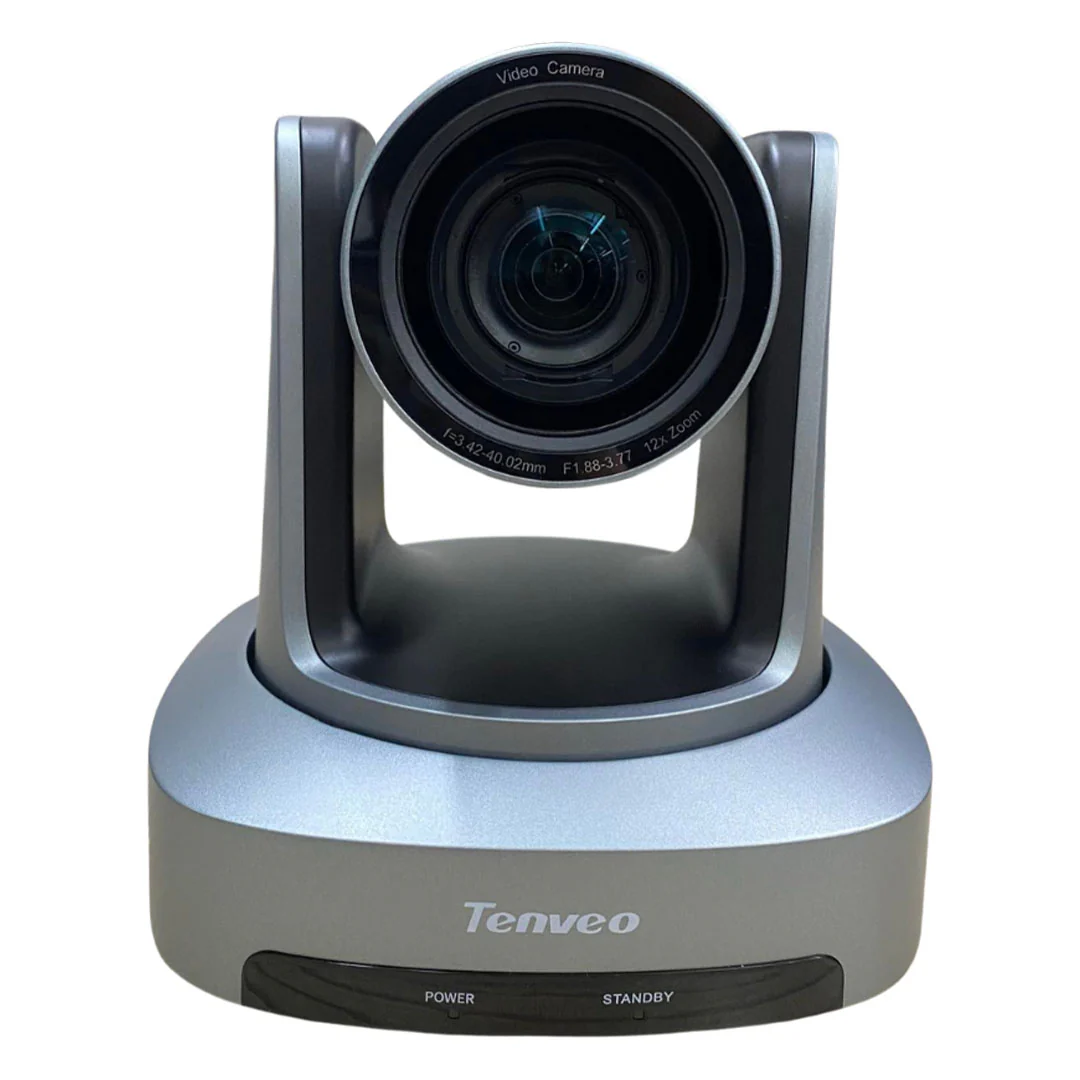

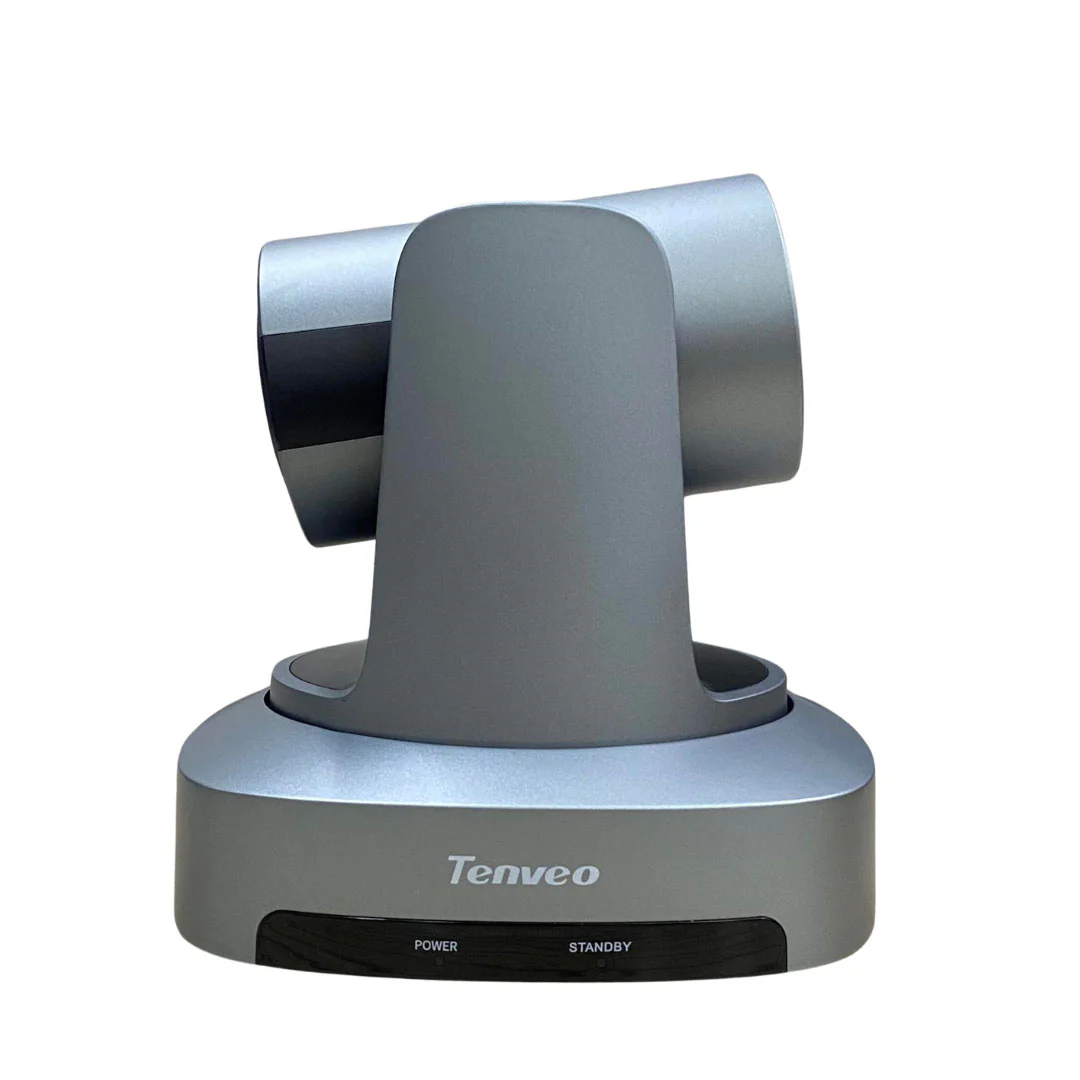

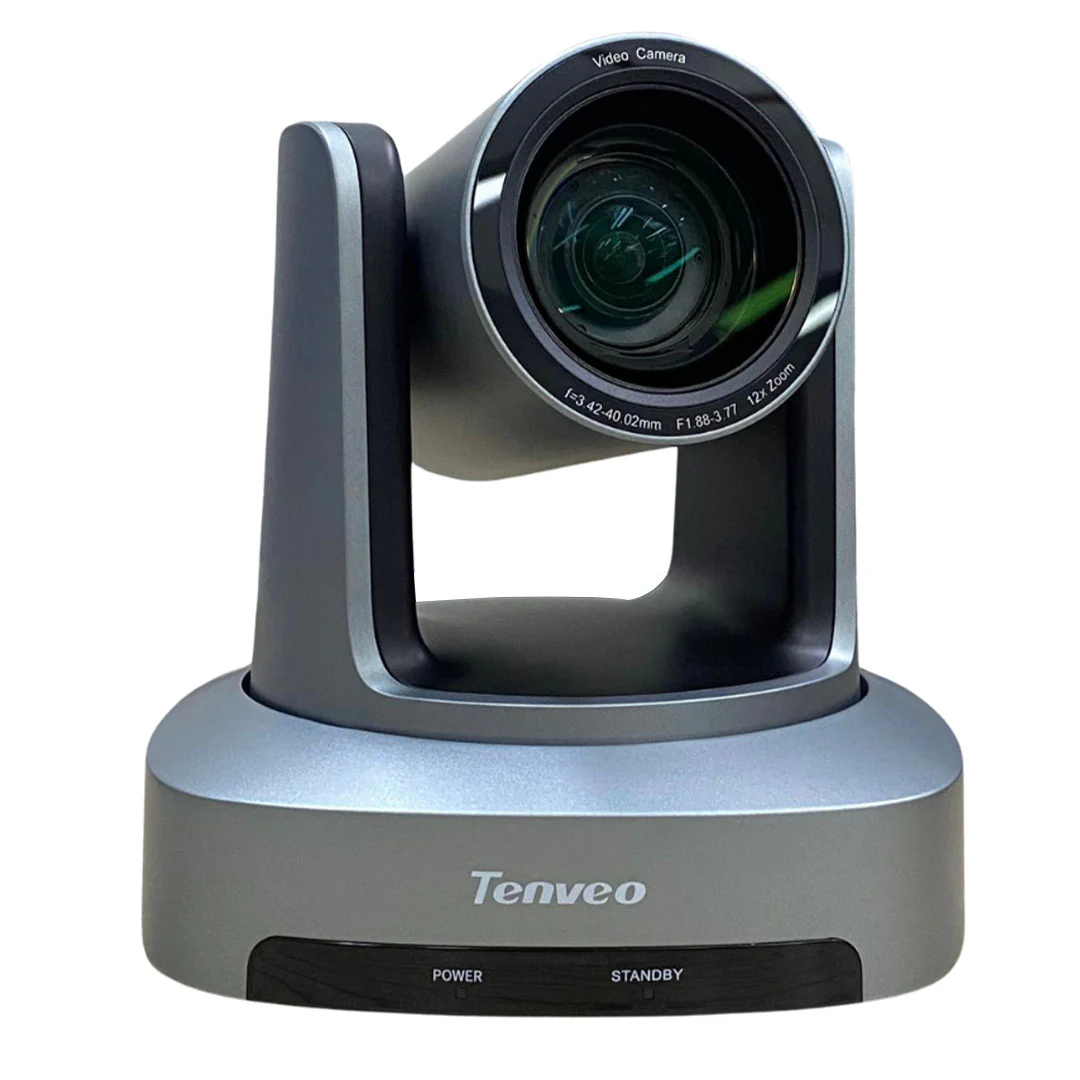

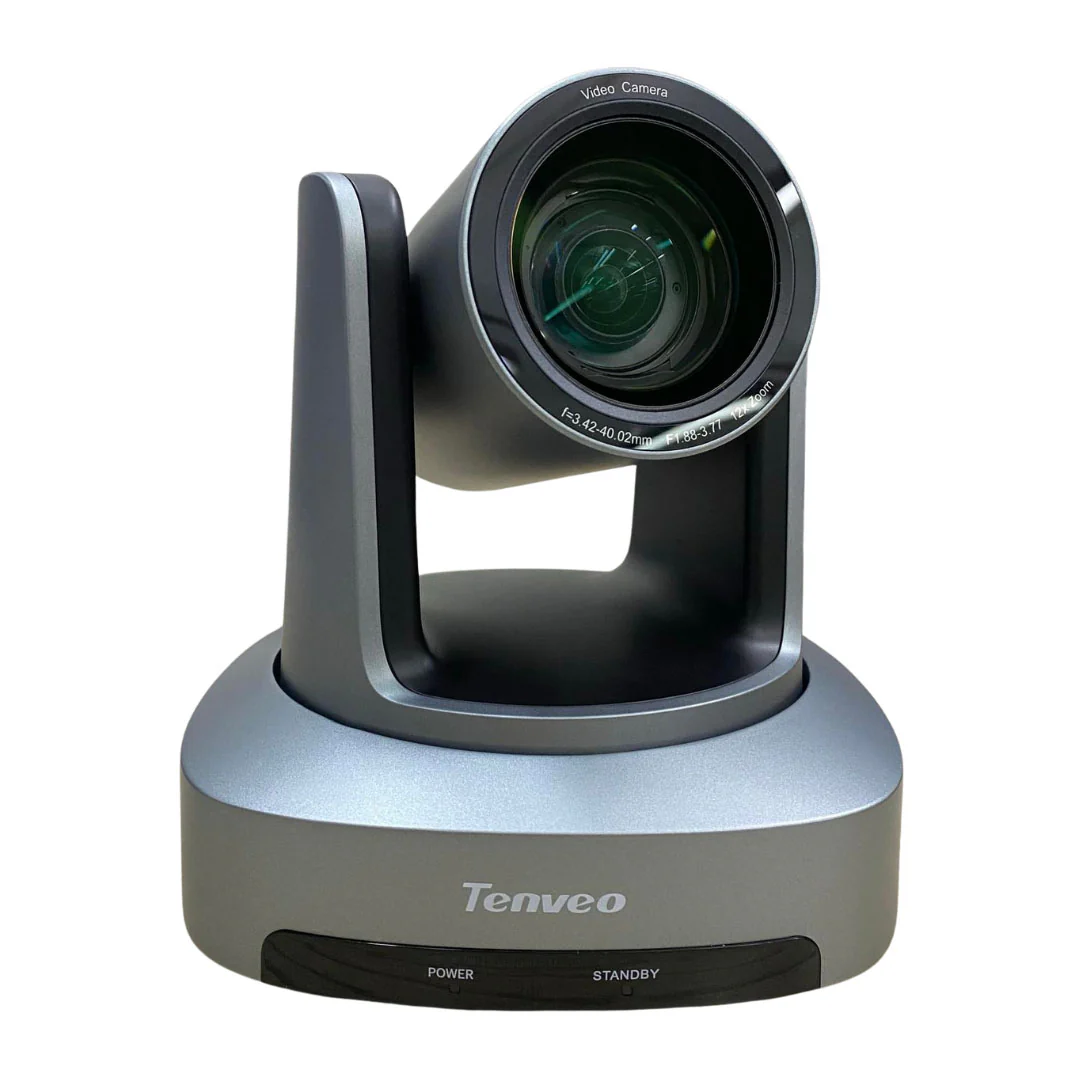

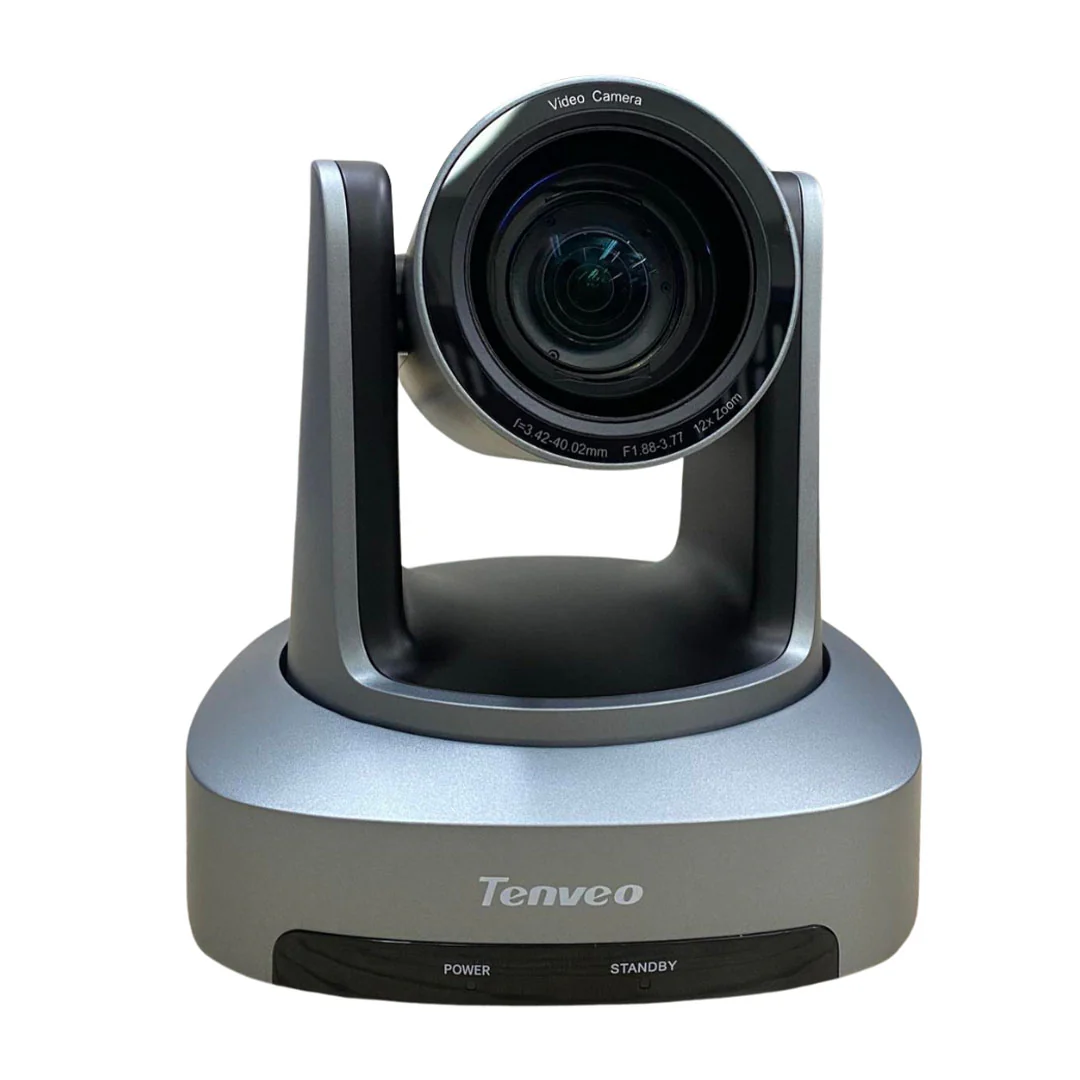

Tenveo TEVO-UV612A-4K

High-quality camera, an excellent solution for capturing stunning visuals with incredible UHD4K resolution at 60 fps. Equipped with a 12x optical zoom lens, the camera allows you to capture every detail with unprecedented clarity and precision. The TEVO 4K 60 fps PTZ camera boasts a variety of interfaces, including HDMI, USB 3.0, RJ 45 and SDI, which are suitable for most scenarios. In addition, with the advanced NDI | HX 2 protocol, you can seamlessly stream high-quality content to multiple devices and networks. The TEVO - UV612A-4K camera is an ideal choice for capturing high-quality images and provides various options to suit your needs.

FEATURES:

Excellent image quality
► TEVO-UV612A-4K uses the Sony IMX415 CMOS matrix with a 1/2.8 inch diagonal, providing unrivaled image quality in Ultra HD4K format at a speed of 60 frames per second

12-fold optical zoom with wide angle lens
► An object with a 12-fold optical zoom and a wide viewing angle of 80.56 ° provides a wide field of view and allows you to shoot high-definition video without distortion even at the most distant approximation

MuItipIe interfaces, unsurpassed connection
► Equipped with HDMI, USB 3.0, RJ 45, SDI interfaces, this PTZ camera with a resolution of 4 K 60 frames per second makes connecting all your devices as simple as ever.

NDI Protocol Support ® | HX 2
► NDI technology allows you to transfer accurate visual images and interactively manage in real time, as well as a flexible mode of operation in the live broadcast mode on IP.

No more annoying wires
► The NDI camera supports Power Over Ethernet (PoE) technology, which requires only one cable for power, video streaming and control, which further simplifies installation.

SPECIFICATIONS:

• Brand: Tenveo

• Model: UV612A-4K

• Image Sensor: Sony IMX415 1/2.8" CMOS

• Effective Pixels: 8.29MP, 16:9

• Optical Zoom: 12x zoom

• Lens: f=3.42-40.02mm

• Aperture: F1.88～F3.77

• Horizontal Angle: 80.56°(W)-7.89°(T)

• Vertical Angle: 49.61°(W)-4.46°(T)

• Diagonal Angle: 89.51°(W)-9.04°(T)

• Video format:
  - HDMI (4KP @ 60/50/30 / 25fps,
  - 1080P @ 60/50/30/25fps.
  - 720P @ 60J50J30 / 25fps);
  - USB3.0 (3840 * 2160P @ 30fps
  - 2560 * 1440P @ 30fps,
  - 1920 * 1080P @ 30fps,
  - 1280 * 720P @ 30fps.
  - 640 * 480P @ 30fps,
  - 320 * 240P @ 30fps;
  - YUY2 / NV12 / H
  - 264 / H.265 / MJ PG)

• Video encoding format: 264, H.265. MJPG. YUY2

• Backlight Compensation: Supported

• SNR: >50d B

• Zoom: Automatically / manually

• Digital noise reduction: 3D noise reduction

• Impact: Automatically / manually

• Panoramic / Tilt Rotation: ±175o, -90o ~ + 90 ”

• Panoramization Speed Adjustment: 0.1 -80 o / sec

• Tilt speed adjustment: 0.1 -60 ” / sec

• Number of presets: The user can configure up to 255 presets (10 presets using the IR remote control).

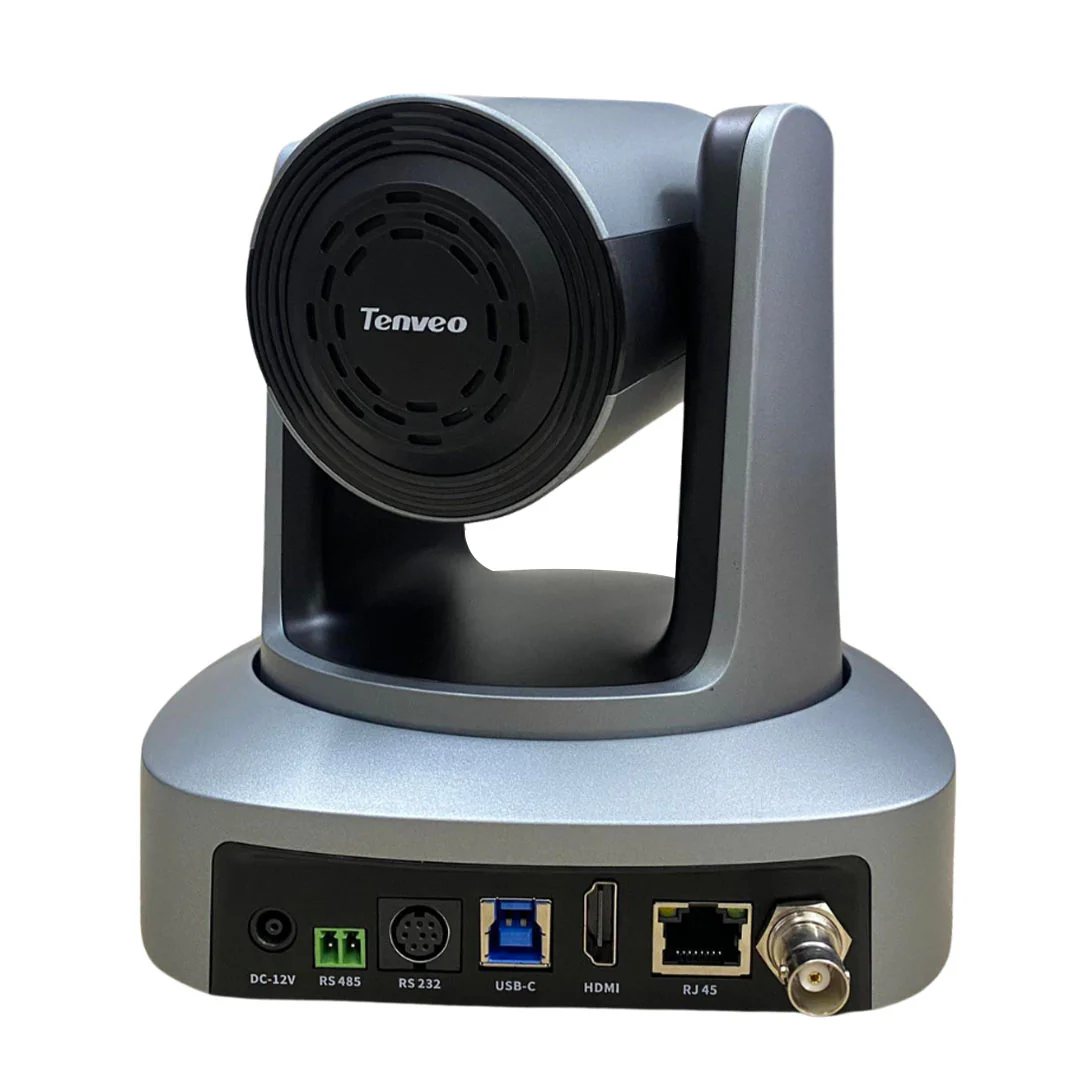

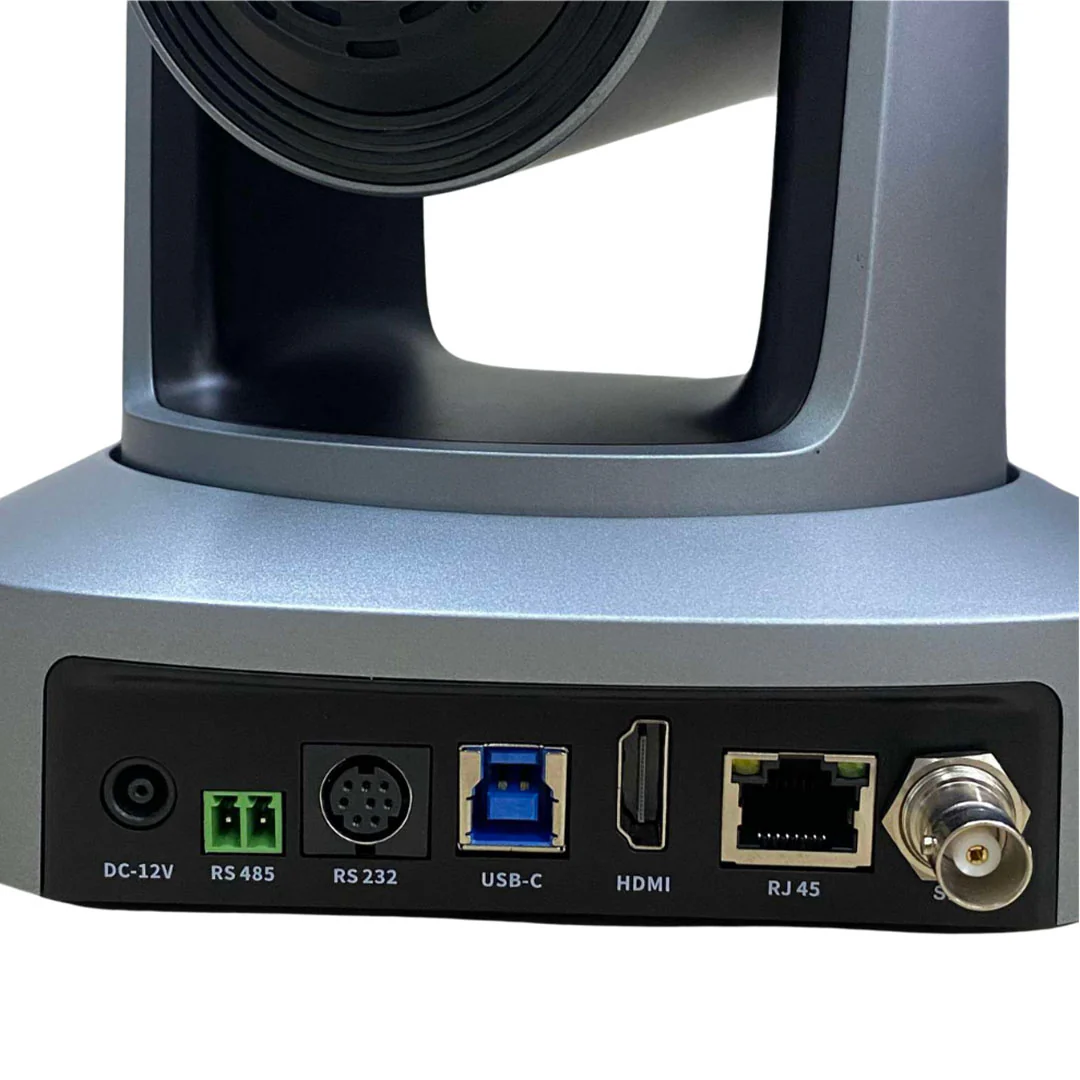

• Connectors: HDMI, USB3.0, RJ4S, SDI

• Video compression format: H.264, H.265. MJPG, YUY2

• Local area network: 10M / 1 00M / 1000 M adaptive Ethernet port:
• Support for POE IEE E802.3at

• Network Protocol: NDI | HX2, RTS P. RTMP. ONVIF, G B28181; Support
• VISCA Over P

• Management protocol: ViSCA / PeIco — D / Pelco-P: Baud Rate: 9600/4800/38400/2400

• Management interface: RS232, RS485, USB3.0 TYPE-B (UVC1.1), RJ45





What's in the box?

Video Camera, Remote Control, USB Cable, User Manual, Wall Mount, Power Adapter
