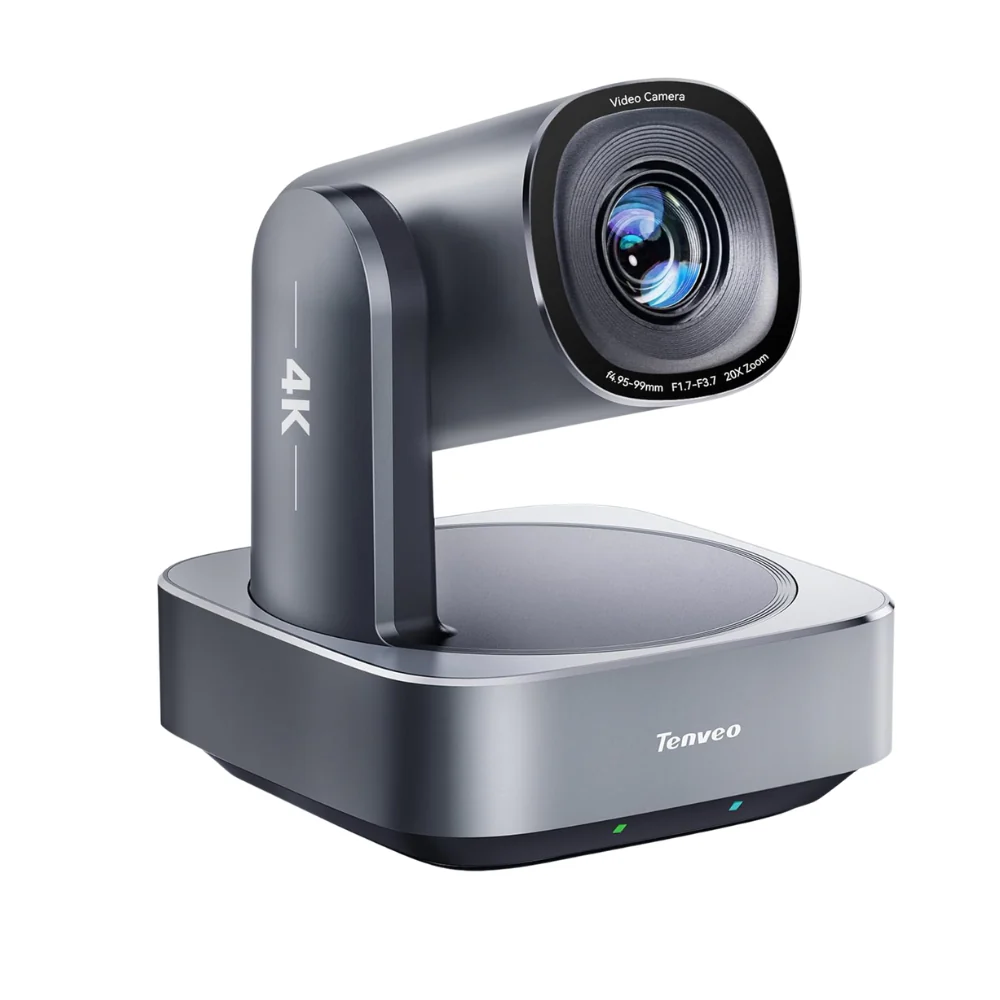

Tenveo TEVO-VL20U-4K-NDI HX2 UHD 4K AI Auto Tracking PTZ Camera with 20x Optical / 8x Digital Zoom

Description
The TENVEO TEVO-VL20U-4K series is a professional 4K PTZ video conference camera designed for live streaming, broadcasting, and conference rooms. It features a high-quality Sony CMOS sensor, 20× optical zoom, and smooth pan-tilt-zoom (PTZ) control for capturing clear and detailed video even at long distances. The camera supports multiple connection options such as USB, HDMI, and IP streaming, making it compatible with platforms like Zoom, Microsoft Teams, and other conferencing or live-production systems. The NDI version additionally enables low-latency video transmission over a network for professional broadcast workflows

Key Features
Standard 4K
● 20X Optical Zoom for Detailed Close-Ups
● 8X Digital Zoom for Extended Reach
● Sleek and Intelligent Camera Design
● Smart AI Auto Tracking and Framing
● Presenter Tracking for Active Speakers
● Crystal Clear 4K Video at 30fps
● Accurate and Silent PTZ Movement
● HDMI, USB, and LAN (PoE) Video Output
● RTSP, RTMP, ONVIF, VISCA over IP Support
● Up to 10 Presets via IR Remote
● Up to 255 Presets via RS232 Control
● Wide Field of View with No Distortion
● 1/2.8"" 8.29MP CMOS Image Sensor
● Full Glass Lens for Sharp Imaging
● Ceiling, Wall, or Tripod Mounting
● Reverse Mount Installation Support
● 2D and 3D Noise Reduction
● VISCA, Pelco-P, Pelco-D Protocol Support
● RS232 and RS485 Camera Control
● Works with Major Video Platforms

4K with NDI HX2
● 20X Optical Zoom for Detailed Close-Ups
● 8X Digital Zoom for Extended Reach
● Sleek and Intelligent Camera Design
● Smart AI Auto Tracking and Auto Framing
● Presenter Tracking for Active Speakers
● Crystal Clear 4K Video at 30fps
● Accurate Smooth and Silent PTZ Movement
● HDMI USB and LAN (PoE) Video Output
● NDI|HX2 RTSP RTMP ONVIF VISCA over IP
● Up to 10 Presets via IR Remote
● Up to 255 Presets via RS232 Control
● Wide Field of View with Low Distortion
● 1/2.8"" 8.29MP CMOS Image Sensor
● Full Glass Lens for Clear Imaging
● Ceiling Wall or Tripod Mount Support
● Reverse Mount Installation Supported
● 2D and 3D Noise Reduction
● VISCA Pelco-P Pelco-D Protocol Support
● RS232 and RS485 Camera Control
● Works with Major Video Platforms

Specification
Standard 4K
● Brand: Tenveo
● Model: VL20U-4K
● Image Sensor: Sony 1/2.8"" CMOS
● Effective Pixels: 8.29MP
● Optical Zoom: 20x
● Digital Zoom: 8x
● Lens Aperture: F1.7–F3.7
● Focal Length: 4.95–99 mm
● Zoom Speed: 1–8
● Horizontal Viewing Angle: 51.9°–3.0°
● Vertical Viewing Angle: 39.7°–2.2°
● Diagonal Viewing Angle: 63.1°–3.7°
● AI Tracking: Single-Person and Multi-Person Tracking
● Minimum Illumination: 0.1 Lux
● Shutter Speed: 1/25s–1/10000s
● White Balance: Auto/Manual/Indoor/Outdoor/Specific Color Temp/One-Push
● Backlight Compensation: Supported
● Digital Noise Reduction: 2D & 3D DNR
● Exposure: Auto/Manual
● Focus: Auto/Manual
● Video Encoding: H.264, H.265, MJPEG, YUY2
● HDMI Video Output: 3840×2160P30/29.97/25, 2560×1440P60/59.94/50/30/29.97/25, 1920×1080P60/59.94/50/30/29.97/25, 1280×720P60/59.94/50
● USB Video Output: H.264/H.265/MJPG up to 2160P30, YUY2 up to 720P30
● Pan Rotation: ±175° (350° Total)
● Tilt Rotation: ±90° (180° Total)
● Preset Positions: Remote 10, Serial 255
● Preset Accuracy: 0.1°
● Preset Speed: Pan 0.1–80°/s, Tilt 0.1–60°/s
● Image Freeze: Supported
● PoE: Supported
● Video Compression: H.265/H.264/MJPEG
● Video Streams: Primary and Secondary
● Main Stream Resolution: 1920×1080
● Sub Stream Resolution: 1280×720
● Bit Rate: Primary 32Kbps–51200Kbps, Secondary 32Kbps–20480Kbps (VBR/CBR)
● Frequency: 25Hz/30Hz
● Frame Rate: 25Hz:1–25fps, 30Hz:1–30fps
● Network Protocols: RTSP, RTMP, ONVIF, VISCA over IP
● USB OS Support: Windows/macOS/Android/Linux
● USB Video Protocol: UVC1.1, PTZ Control Supported
● Video Output: HDMI, USB 3.0
● Network Interface: RJ45
● USB Interface: 1×USB3.0 Type-C
● Communication: RS232, RS485, VISCA/Pelco-D/Pelco-P
● Power Input: DC12V, 2.0A Max
● Power Consumption: 24W Max
● Operating Temp/Humidity: 0°C–40°C / 20–80% RH
● Dimensions: 143×143×159 mm / 285×217×197 mm (Package)
● Weight: 1.4 kg / 2.6 kg (Gross)

4K with NDI HX2
Brand: Tenveo
● Model: VL20U-4K-NDI
● Image Sensor: Sony 1/2.8" CMOS
● Effective Pixels: 8.29MP
● Optical Zoom: 20x
● Digital Zoom: 8x
● Lens Aperture: F1.7–F3.7
● Focal Length: 4.95–99 mm
● Zoom Speed: 1–8
● Horizontal Viewing Angle: 51.9°–3.0°
● Vertical Viewing Angle: 39.7°–2.2°
● Diagonal Viewing Angle: 63.1°–3.7°
● AI Tracking: Single-Person and Multi-Person Tracking
● Minimum Illumination: 0.1 Lux
● Shutter Speed: 1/25s–1/10000s
● White Balance: Auto/Manual/Indoor/Outdoor/Specific Color Temp/One-Push
● Backlight Compensation: Supported
● Digital Noise Reduction: 2D & 3D DNR
● Exposure: Auto/Manual
● Focus: Auto/Manual
● Video Encoding: H.264, H.265, MJPEG, YUY2
● HDMI Video Output: 3840×2160P30/29.97/25, 2560×1440P60/59.94/50/30/29.97/25, 1920×1080P60/59.94/50/30/29.97/25, 1280×720P60/59.94/50
● USB Video Output: H.264/H.265/MJPG up to 2160P30, YUY2 up to 720P30
● Pan Rotation: ±175° (350° Total)
● Tilt Rotation: ±90° (180° Total)
● Preset Positions: Remote 10, Serial 255
● Preset Accuracy: 0.1°
● Preset Speed: Pan 0.1–80°/s, Tilt 0.1–60°/s
● Image Freeze: Supported
● PoE: Supported
● Video Compression: H.265/H.264/MJPEG
● Video Streams: Primary and Secondary
● Main Stream Resolution: 1920×1080
● Sub Stream Resolution: 1280×720
● Bit Rate: Primary 32Kbps–51200Kbps, Secondary 32Kbps–20480Kbps (VBR/CBR)
● Frequency: 25Hz/30Hz
● Frame Rate: 25Hz:1–25fps, 30Hz:1–30fps
● Network Protocols: NDI|HX2, RTSP, RTMP, ONVIF, VISCA over IP
● USB OS Support: Windows/macOS/Android/Linux
● USB Video Protocol: UVC1.1, PTZ Control Supported
● Video Output: HDMI, USB 3.0
● Network Interface: RJ45
● USB Interface: 1×USB3.0 Type-C
● Communication: RS232, RS485, VISCA/Pelco-D/Pelco-P
● Power Input: DC12V, 2.0A Max
● Power Consumption: 24W Max
● Operating Temp/Humidity: 0°C–40°C / 20–80% RH
● Dimensions: 143×143×159 mm / 285×217×197 mm (Package)
● Weight: 1.4 kg / 2.6 kg (Gross)

What's in the box?
● PTZ Camera
● DC 12V Power Supply
● Wall Mount
● Mounting Screws
● Remote Control
● USB Cable
● Manual
