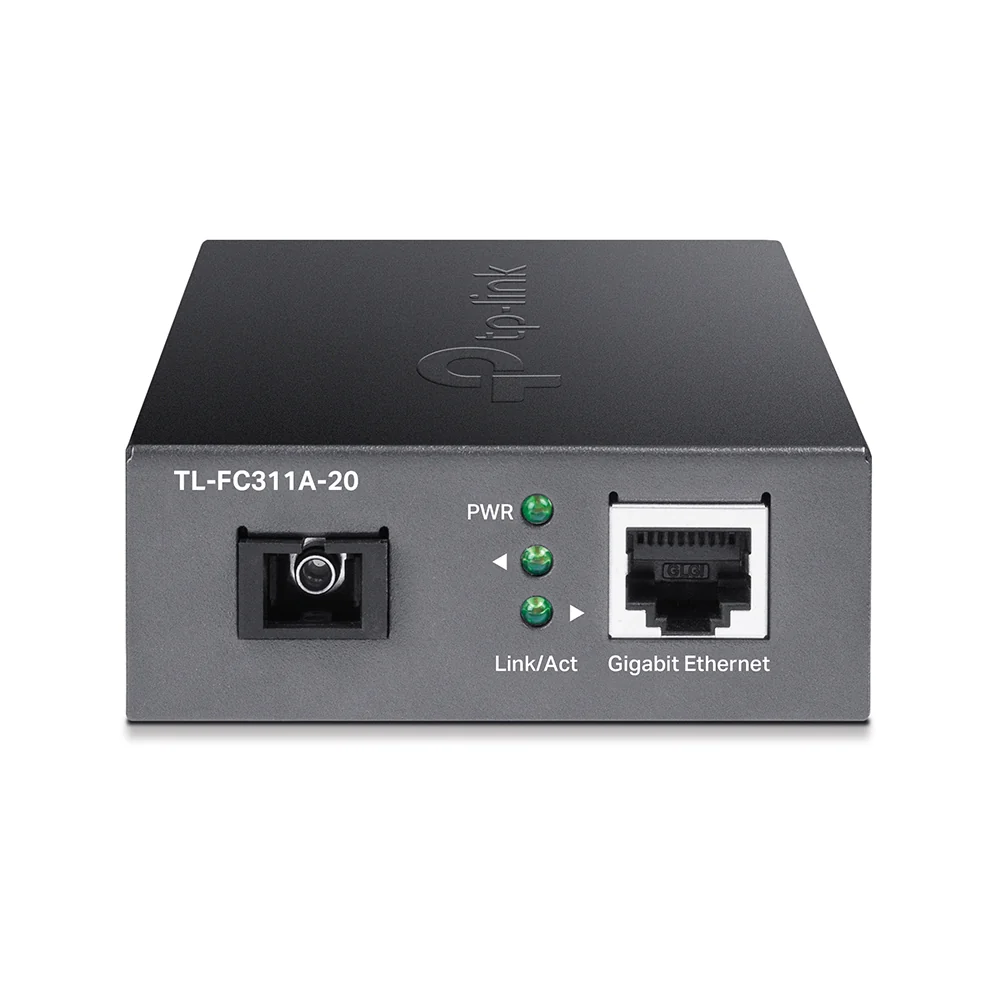

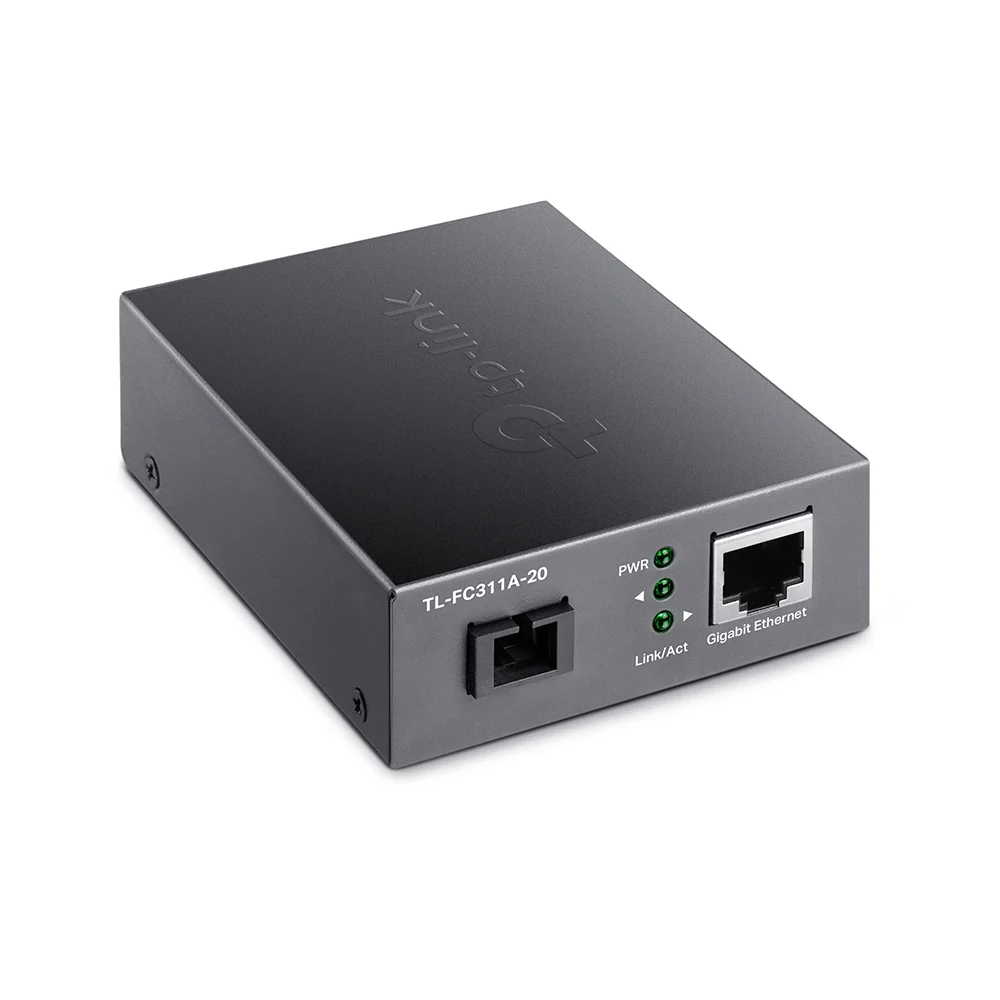

TP-Link TL-FC311A-20 Gigabit RJ45 to 1000Mbps Single-mode SC WDM Bi-Directional Media Fiber Converter Extends Up to 20km, Supports Auto-MDI/MDIX, Half/Full Duplex Wireless Networking

Description:

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-Negotiation of Half-Duplex/Full-Duplex transfer mode

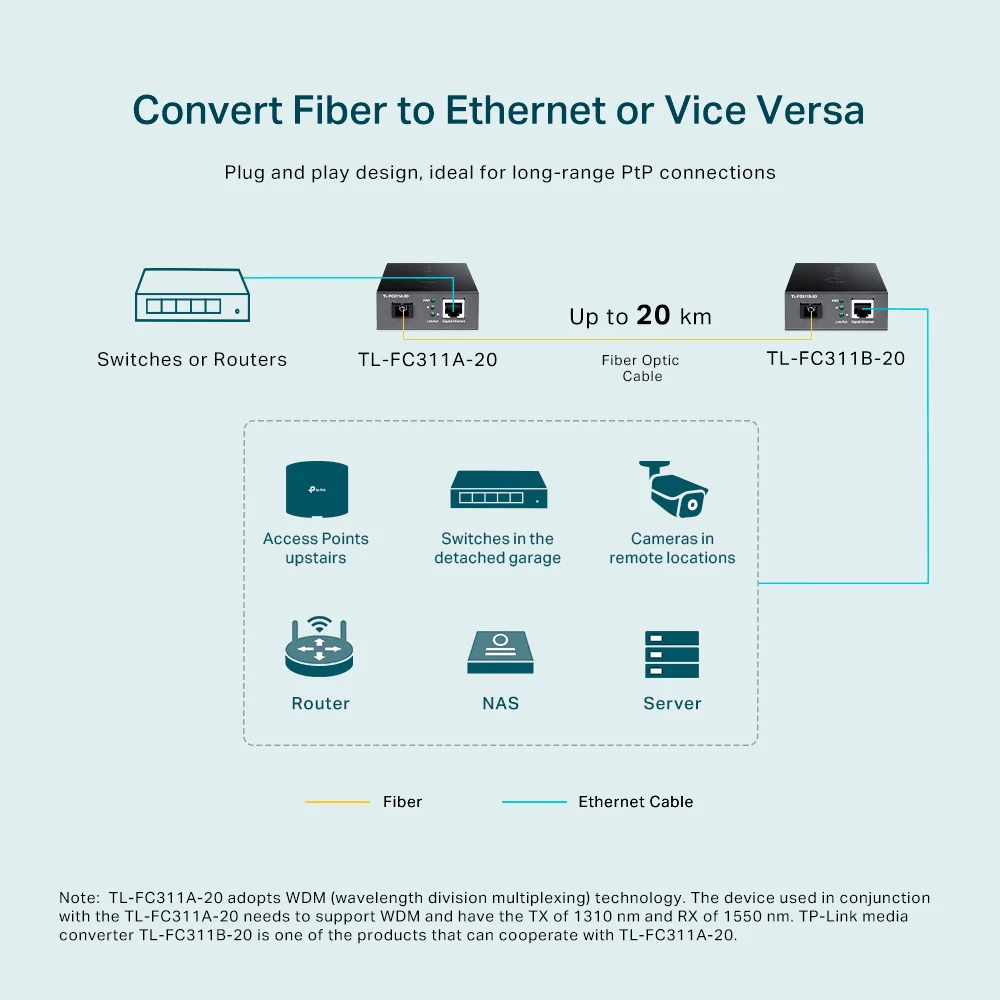

• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km

Specifications:

• Brand: TP-Link
• Model(s): TL-FC311A-20
• Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u / IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
• LED: PWR, Link/Act
• Connector: 1 SC fiber optic; 1 RJ45 jack
• Twisted Pair: 100BASE-Tx; 2-pair UTP/STP of Cat. 5 or above (<-100m) / 1000BASE-Tx; 4-pair UTP/STP of Cat. 5e or above (<-100m)
• Fiber: 9/125 μm single-mode fiber
• Transmission Distance: TLFC311A-20 <- 20km
• Wave Length: TL-FC311A-20: 1550nm Tx, 1310 nm Rx
• Power: External Power Adapter: 5 V/0.6A

What's in the Box:
• Gigabit WDM Media Converter • Power Adapter • Installation Guide
