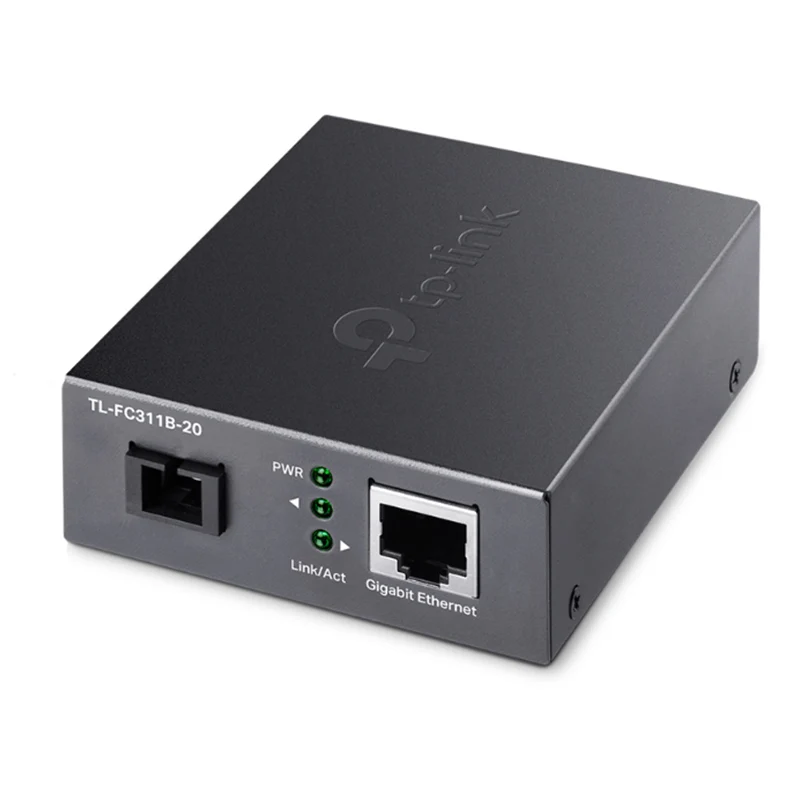

TP-Link TL-FC311B-20

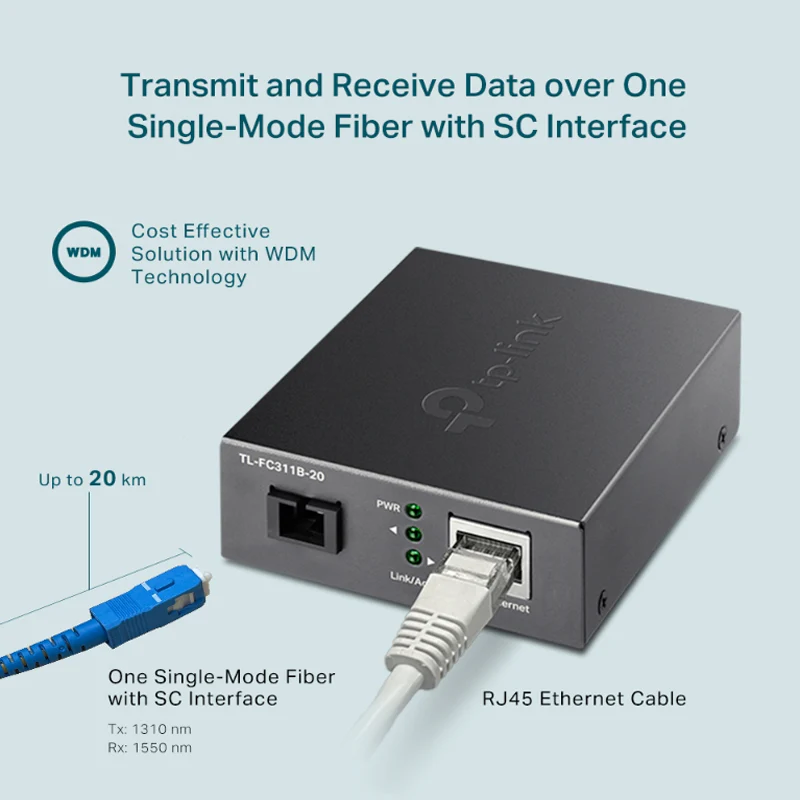

Gigabit WDM Media Converter, you can convert between Gigabit Ethernet RJ45 electrical signals and optical signals through a Gigabit SC fiber port. Designed to support long-distance video surveillance and other data transmissions, the TL-FC311B-20 has a range of up to 12.4 miles over a 9/125µm single-mode fiber cable while using up to 328' long Cat 5/5e Ethernet cables with the RJ45 port. The TL-FC311B-20 transmits at a frequency wavelength of 1310nm and receives data at 1550nm, which complements the TP-Link TL-FC311A-20 WDM Media Converter. Half- and full-duplex modes are automatically negotiated.
Features:
-
10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
-
PORT: 1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
-
SPEC: Full-duplex, Tx:1310 nm, Rx:1550 nm, Up to 20 km, Chassis TL-FC1420 Rack-mountable
