Vention CAT6 Ethernet 35M PVC Cable UTP Patch 1000Mbps Lan Network Wire Cord for Internet Router PC Modem
Overview
• CAT6 UTP Patch Cable
Vention CAT6 Patch Cord is used in network applications such as 10Base-T, 100Base-T, and 1000Base-T Ethernet, and has been designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates. These cables deliver improved performance over standard CAT5E cables.

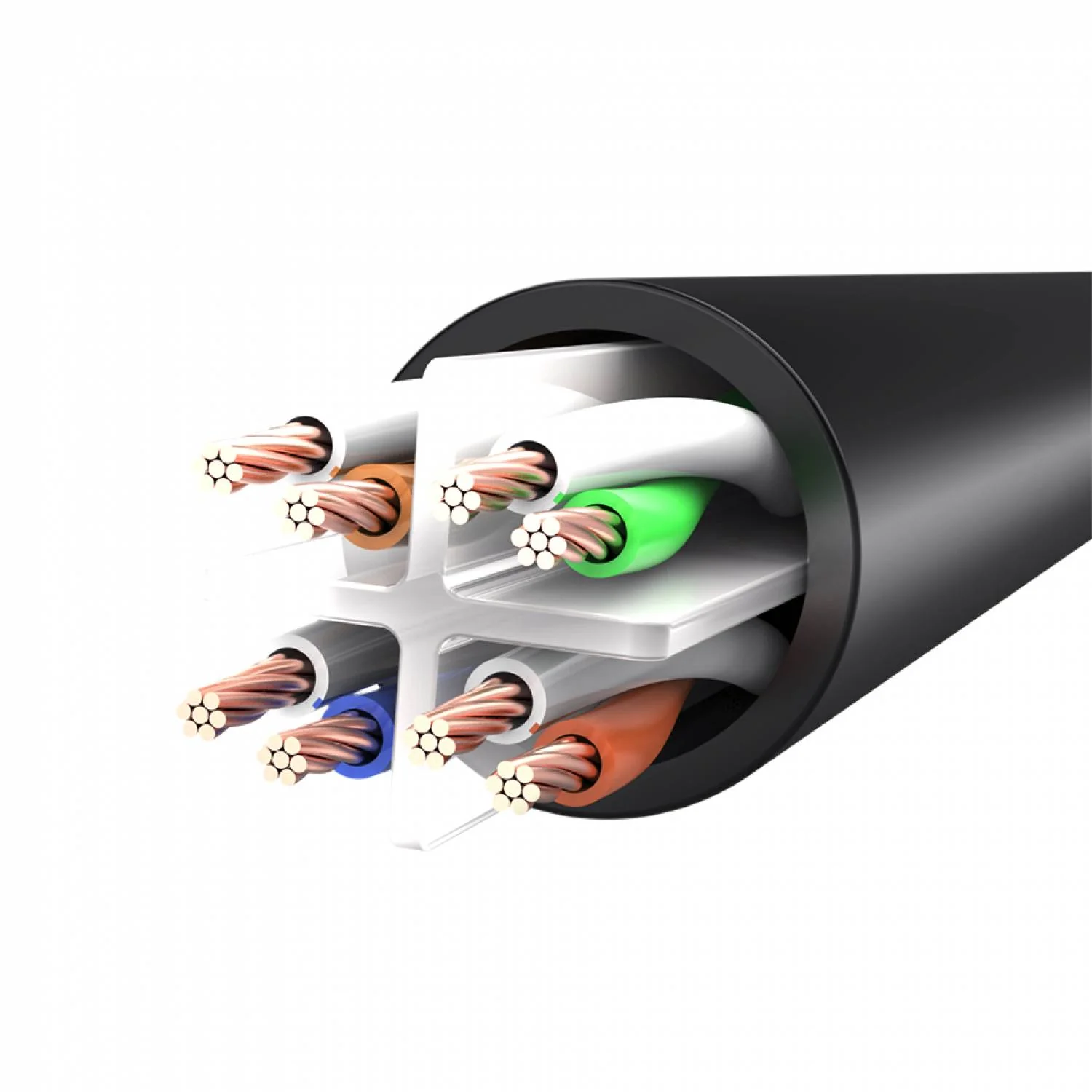

CAT6 is completely backward-compatible with current CAT5, and CAT5E equipment. Vention CAT6 Patch Cords are composed of 4 pairs of 26AWG stranded conductors with PVC jackets. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard.
Key Features
• Color: Black
• Interface: RJ45/8P8C
• RJ45 Plug Material: PC
• RJ45 Shell Material: UTP
• AWG: 26AWG
• Conductor Isolation: UTP
• Cross Skeleton: yes
• Line Sequence: 568B
• Pin/Contactor Material: Pure copper
• Pin/Contactor Process: Gold-plated
• Conductor: Copper Clad Aluminium
• Stranding Method: Eight Core Twisted Pair
• Loop Resistance (20°C): ≤0.305Ω/M
• Capacity: Tester Limited
• Impedance (ZO): Average:105.38Ω
• Delay Deviation: Average: ≤4.487ns/100m
• Broadband: 1000Mbps
• Transmission Bandwidth: 250Mhz
• OD: 5.5mm
• Jacket Material: PVC
Select Size
From $2.92
Vention CAT6 Ethernet 35M PVC Cable UTP Patch 1000Mbps Lan Network Wire Cord for Internet Router PC Modem—
$2.92
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
• CAT6 UTP Patch Cable
Vention CAT6 Patch Cord is used in network applications such as 10Base-T, 100Base-T, and 1000Base-T Ethernet, and has been designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates. These cables deliver improved performance over standard CAT5E cables.
CAT6 is completely backward-compatible with current CAT5, and CAT5E equipment. Vention CAT6 Patch Cords are composed of 4 pairs of 26AWG stranded conductors with PVC jackets. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard.
Key Features
• Color: Black
• Interface: RJ45/8P8C
• RJ45 Plug Material: PC
• RJ45 Shell Material: UTP
• AWG: 26AWG
• Conductor Isolation: UTP
• Cross Skeleton: yes
• Line Sequence: 568B
• Pin/Contactor Material: Pure copper
• Pin/Contactor Process: Gold-plated
• Conductor: Copper Clad Aluminium
• Stranding Method: Eight Core Twisted Pair
• Loop Resistance (20°C): ≤0.305Ω/M
• Capacity: Tester Limited
• Impedance (ZO): Average:105.38Ω
• Delay Deviation: Average: ≤4.487ns/100m
• Broadband: 1000Mbps
• Transmission Bandwidth: 250Mhz
• OD: 5.5mm
• Jacket Material: PVC
