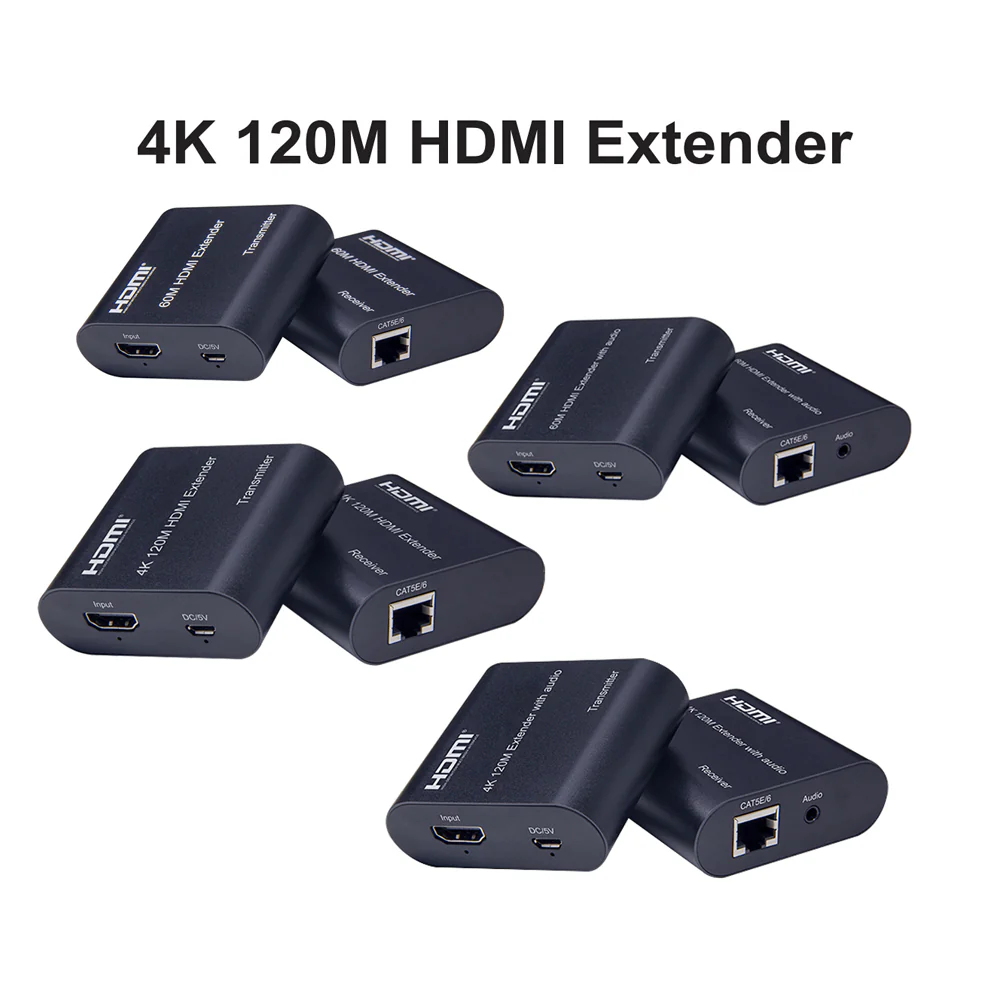

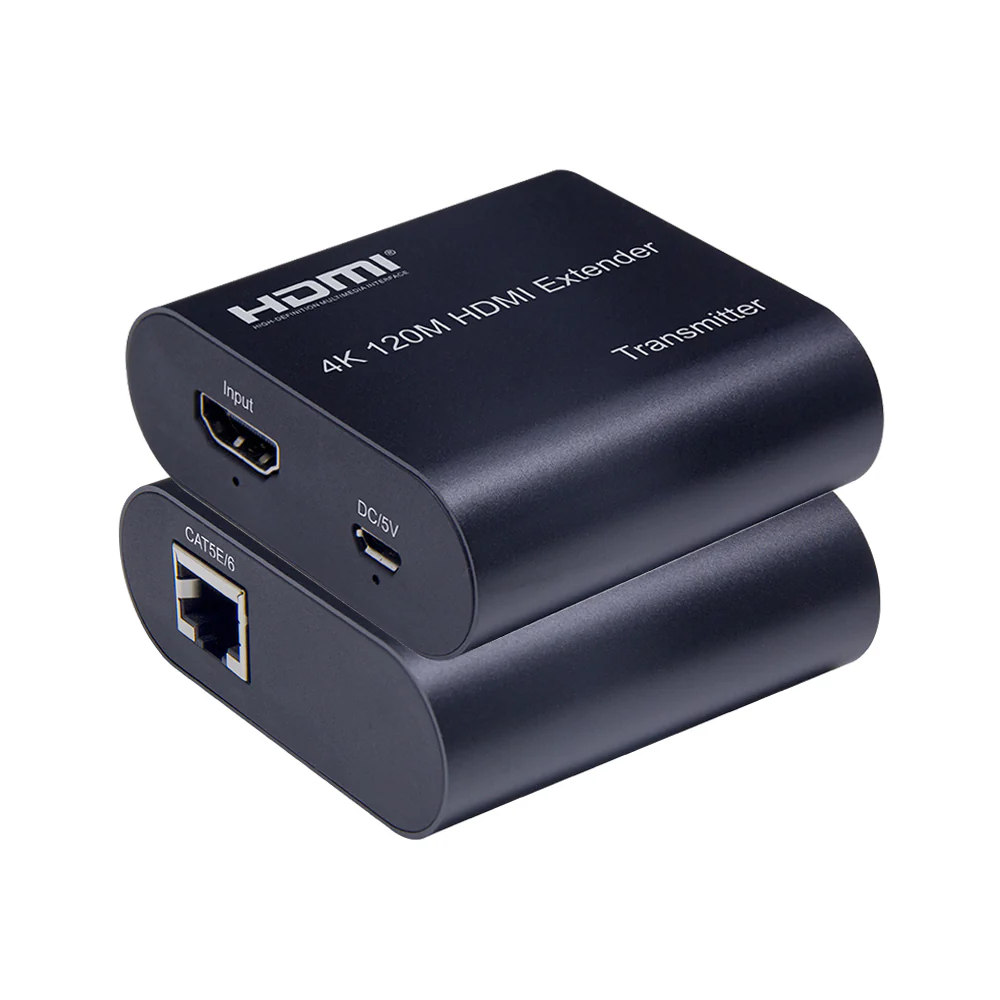

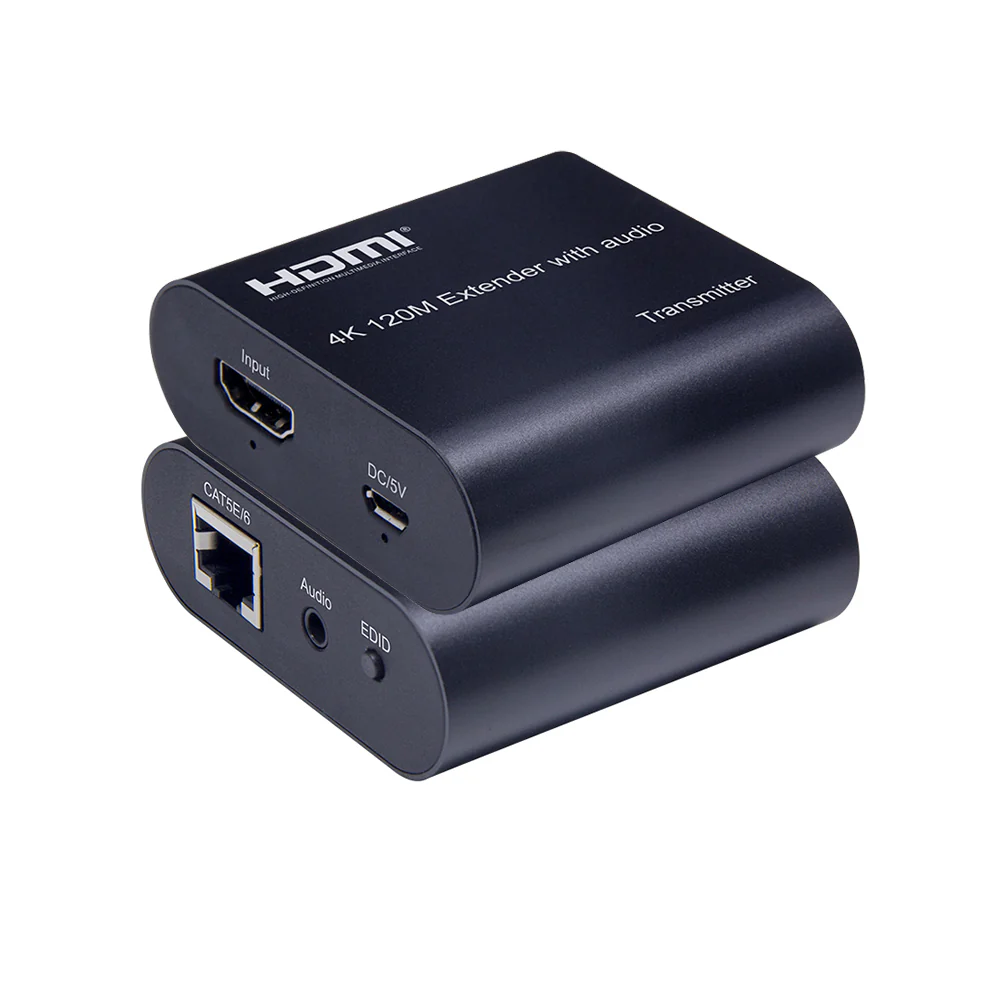

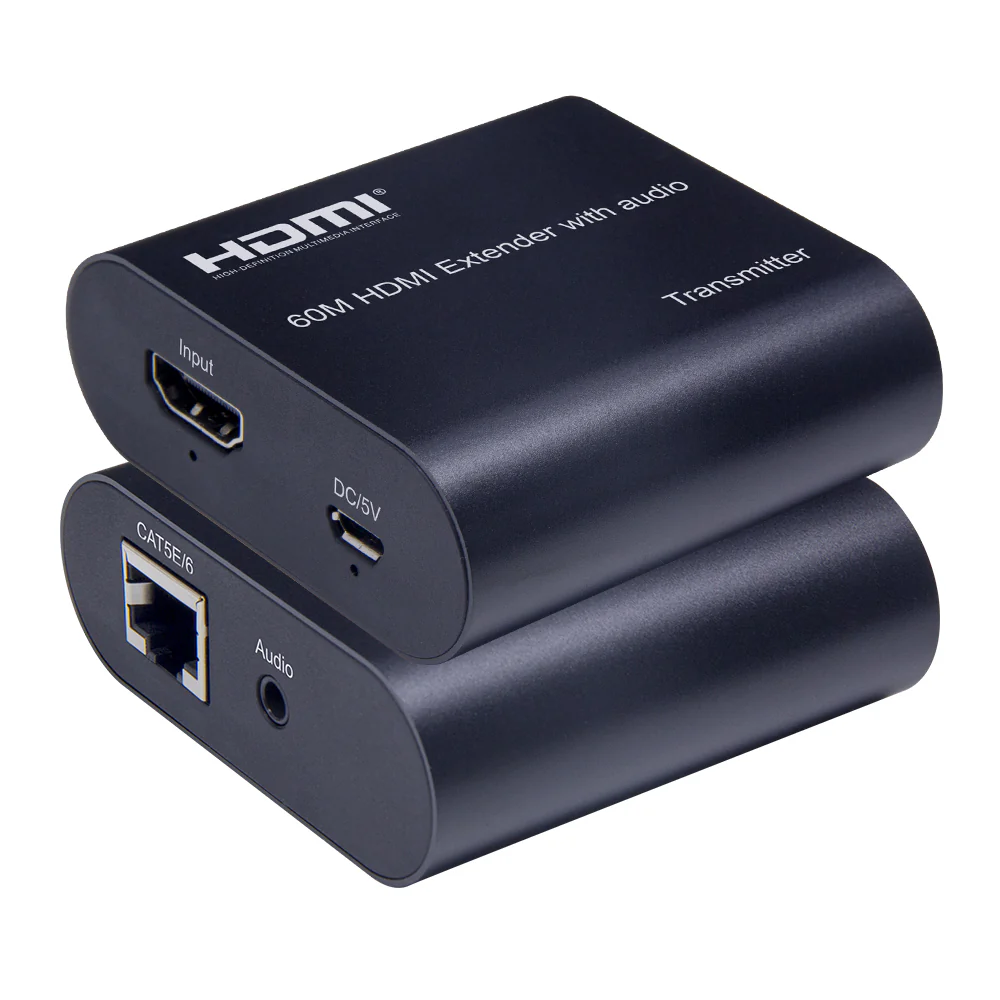

ArgoX 1080p/4K HDMI Extender Audio Transmitter Receiver with 60m / 120m Range, 4.5Gbps Data Rate, CAT5e/6 Ethernet Network Cable, EDID Switch, TX and RX Support 3.5mm Audio Output | HDES14 HDES15 HDES16 HDES17

Specifications:

• Brand: ArgoX
• Model(s): HDES14 HDES15 HDES16 HDES17
• Length of CAT-6/CAT-5E Cable Between Rx and TX: 60 meters / 120 meters
• HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i
• HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i
• HDMI Input (HDES16 HDES17): 4k/1080p/720p/576p/576i/480p/480i
• HDMI Input (HDES16 HDES17): 4k/1080p/720p/576p/576i/480p/480i
• Max Bandwidth: 150MHz
• Max Bandwidth(HDES16 HDES17): 340MHz
• Max Baud Rate: 4.5Gbps
• Max Baud Rate(HDES16 HDES17): 3x3.4Gbps
• Input Video Signal: 0.5~1.5Volts p-p
• Output DDC Signal: 5Volts p-p (TTL)
• Input HDMI Cable Distance: ≤10m AWG26 HDMI standard cable
• Output HDMI Cable Distance: ≤15m AWG26 HDMI standard cable
• TX Max Working Current: 300mA
• TX Max Working Current(HDES16 HDES17): 500mA
• RX Max Working Current: 300mA
• Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
• Operating Temperature Range: (-15 to +45℃)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 60x56x19 (mm) / 64x59x22(mm)
• TX Weight: 53g
• RX Weight: 53g
