Description:

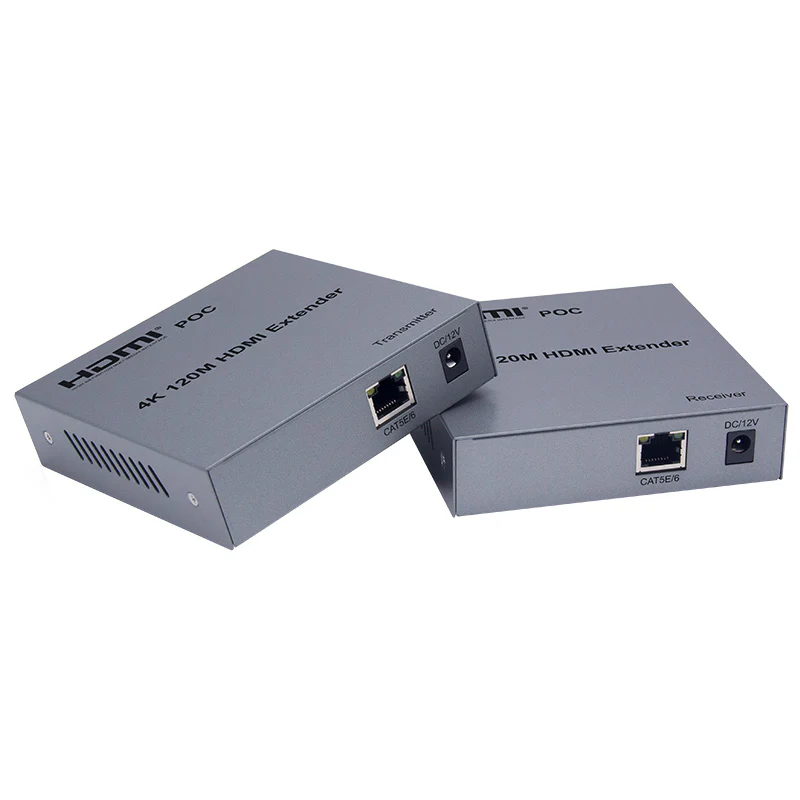

- The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, The Extender is designed to supply for long distance transmission of high definition signal.
Features:
-
Support HDMI 1.4/HDCP1.4;
-
Support local loop-out ;
-
Support 120m long distance transmission;
-
Low power consumption, low temperature and high safety；
-
Both the TX and RX support 3.5MM left and right audio output；
-
Support IR control；
-
Support POC;
Specifications:
-
Brand: ArgoX
-
Model(s): HDES120-POC
-
Length of CAT5e/CAT6 cable between Rx and TX: 120 Meters
-
HDMI Input: 4k/1080p/720p/576p/576i/480p/480i
-
HDMI Output: 4k/1080p/720p/576p/576i/480p/480i
-
Max Bandwidth: 340MHz
-
Max Baud Rate: 3x3.4Gbps
-
Input Video Signal: 0.5~1.5Volts p-p
-
Output DDC Signal: 5Volts p-p (TTL)
-
Input HDMI Cable Distance: ≤10m AWG26 HDMI standard cable
-
Output HDMI Cable Distance: ≤10m AWG26 HDMI standard cable
-
TX Max Working Current: 350mA
-
RX Max Working Current: 200mA
-
Power Adapter Format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
-
Operating Temperature Range: (0 to +45℃)
-
Operating Humidity Range: 5 to 90%RH (No Condensation)
-
Dimension (L x W x H): 107x105x27.3 (mm)
-
TX Weight: 250g
-
RX Weight: 248g
