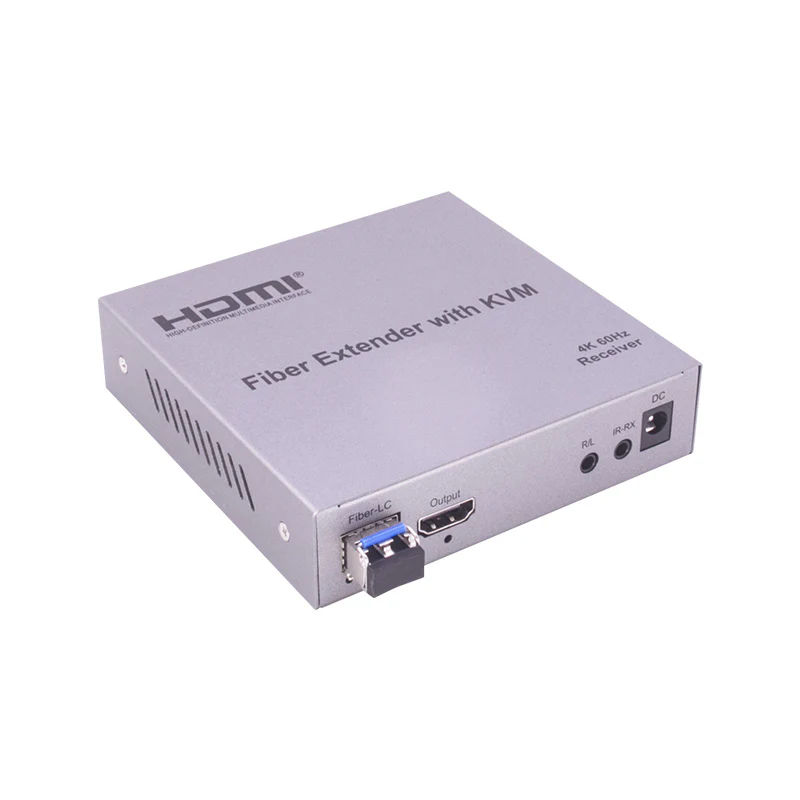

ArgoX HDES19 4K Ultra HD HDMI Fiber Extender with KVM Video Transmitter Receiver, 20km Range, HDMI Loop Out, 3.5mm Stereo Output, IR Control, RS232, and Bi-directional LC Interface

ArgoX HDES19 4K Ultra HD HDMI Fiber Extender with KVM Video Transmitter Receiver, 20km Range, HDMI Loop Out, 3.5mm Stereo Output, IR Control, RS232, and Bi-directional LC Interface



Features:

  • Support HDMI 4K@60Hz/HDCP2.2;
  • Support transmitter HDMI Loop out;
  • Support 3.5mm stereo output;
  • Support IR;
  • Support KVM;
  • Support RS232;
  • Comply with SFP MSA and SFF-8472 standard protocol;
  • Pure hardware design, plug and play, do not need to install additional software;
  • Support 4K to 1080P resolution (Downscaling).

Specifications:

  • Brand: ArgoX
  • Model(s): HDES19
  • HDMI Version: 4K@60Hz / HDCP2.2
  • HDMI Resolution: The Highest Input Resolution is 3840 * 2160 @60Hz
  • Audio Format: L-PCM
  • Fiber wavelength: 1310nm; 1550nm
  • Fiber transmission distance: 20km
  • The maximum operating current: 1.5A/5V DC(TX), 1.2A/5V DC (RX)
  • Operating Temperature range: (-10℃～ +55℃)
  • Dimension (L x W x H): 106x106x17(mm)
  • Weight: TX:272.1g RX:273.1g









$186.37
ArgoX HDES19 4K Ultra HD HDMI Fiber Extender with KVM Video Transmitter Receiver, 20km Range, HDMI Loop Out, 3.5mm Stereo Output, IR Control, RS232, and Bi-directional LC Interface—
$186.37

Product Information

Shipping & Returns

Description



Features:

  • Support HDMI 4K@60Hz/HDCP2.2;
  • Support transmitter HDMI Loop out;
  • Support 3.5mm stereo output;
  • Support IR;
  • Support KVM;
  • Support RS232;
  • Comply with SFP MSA and SFF-8472 standard protocol;
  • Pure hardware design, plug and play, do not need to install additional software;
  • Support 4K to 1080P resolution (Downscaling).

Specifications:

  • Brand: ArgoX
  • Model(s): HDES19
  • HDMI Version: 4K@60Hz / HDCP2.2
  • HDMI Resolution: The Highest Input Resolution is 3840 * 2160 @60Hz
  • Audio Format: L-PCM
  • Fiber wavelength: 1310nm; 1550nm
  • Fiber transmission distance: 20km
  • The maximum operating current: 1.5A/5V DC(TX), 1.2A/5V DC (RX)
  • Operating Temperature range: (-10℃～ +55℃)
  • Dimension (L x W x H): 106x106x17(mm)
  • Weight: TX:272.1g RX:273.1g
