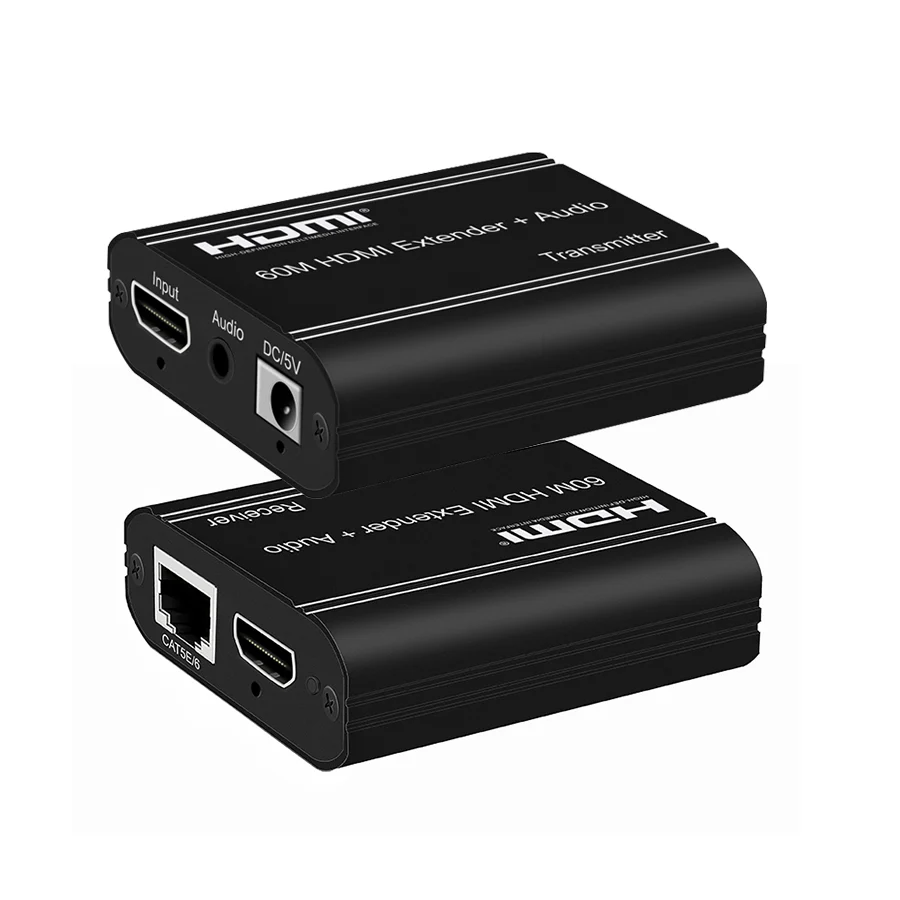

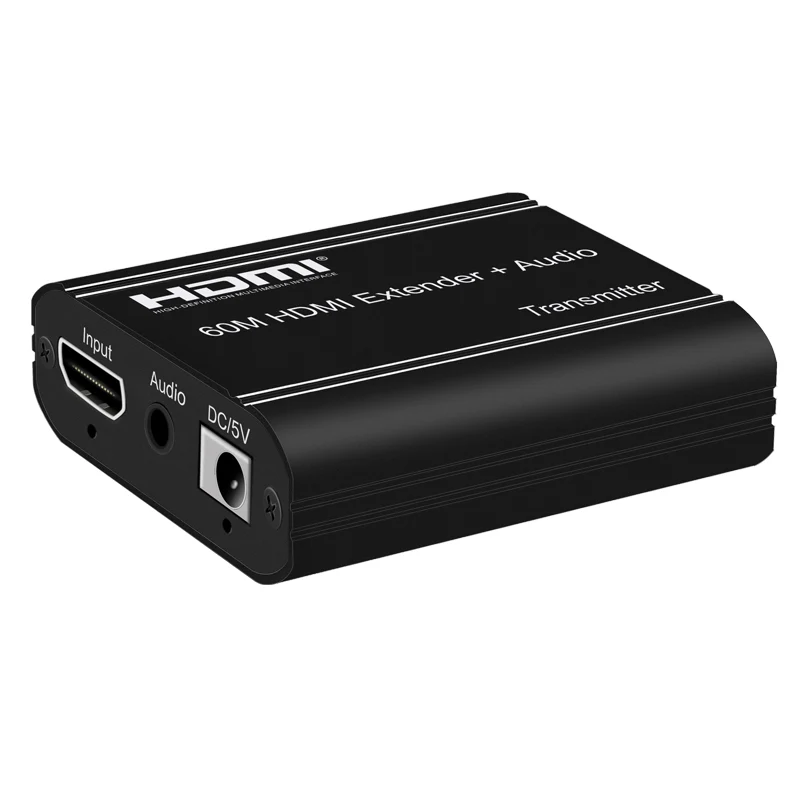

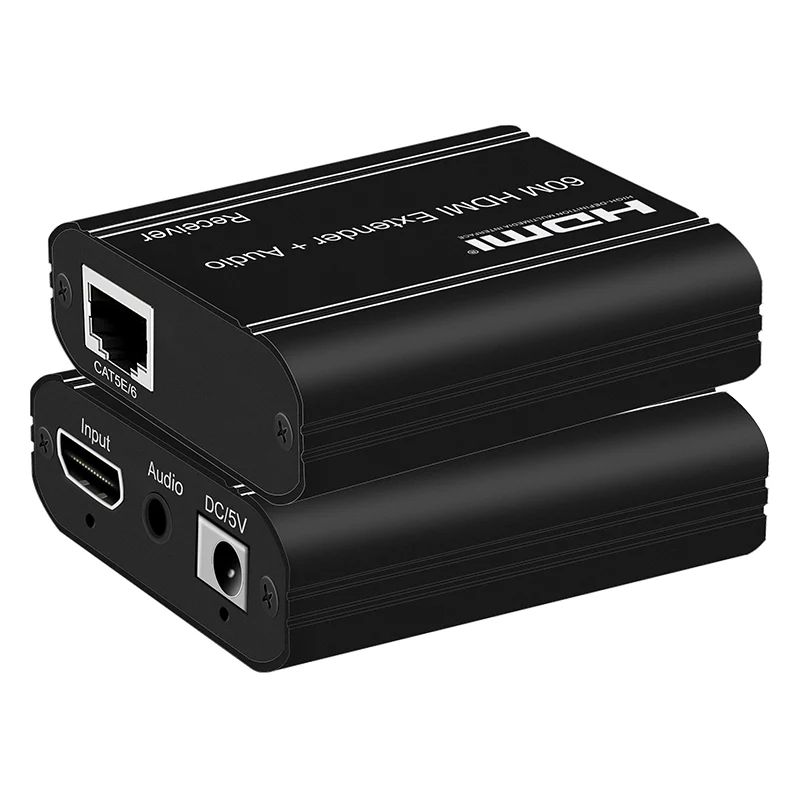

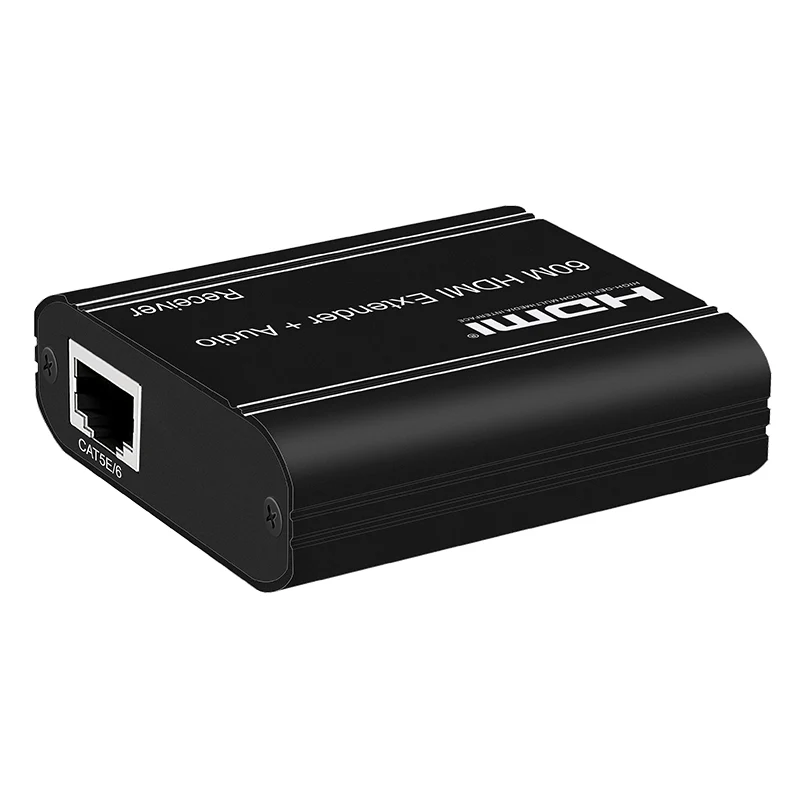

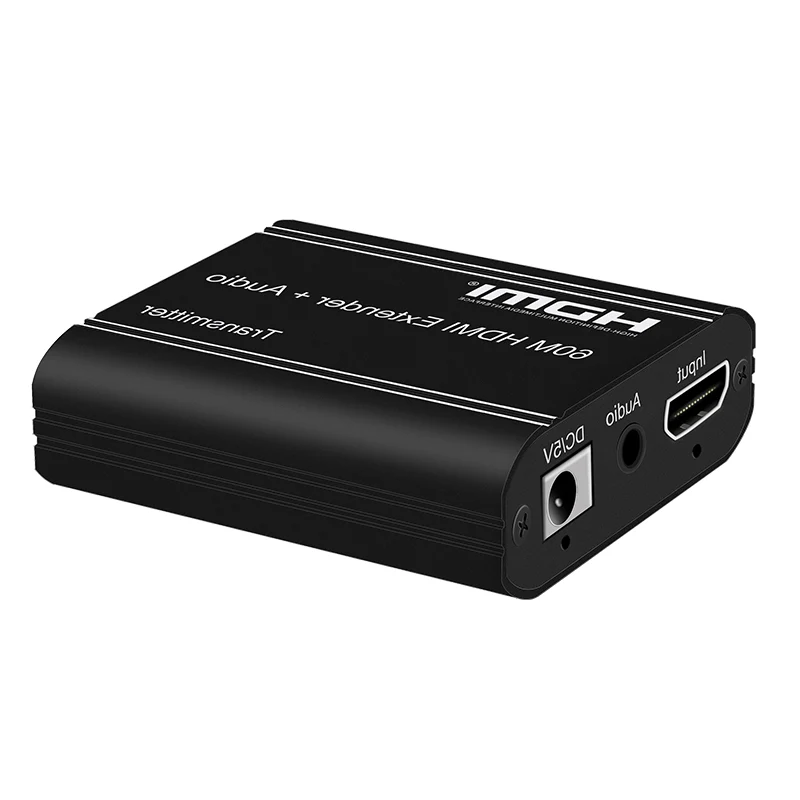

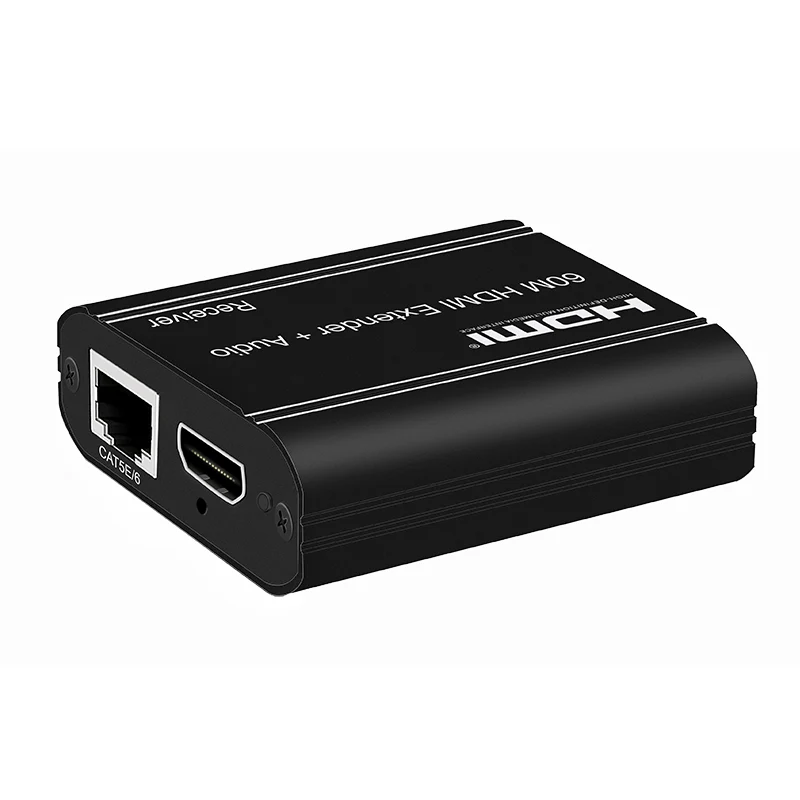

ArgoX HDES22 1080p HDMI Extender Transmitter Receiver with Audio + Loop, 60m Range, Support CAT5e/6 Network Cable, EDID Switch Button, and Audio Stereo Output

Specifications:

• Brand: ArgoX
• Model(s): HDES22
• Length of CAT-6/CAT-5E cable between Rx and TX: Up to 60 meters
• HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i
• HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i
• Max Bandwidth: 150MHz
• Max Baud Rate: 4.5Gbps
• Input Video Signal: 0.5~1.5Volts p-p
• Output DDC Signal: 5Volts p-p (TTL)
• Input HDMI Cable Distance: ≤10m AWG26 HDMI standard cable
• Output HDMI Cable Distance: ≤15m AWG26 HDMI standard cable
• TX Max Working Current: 350mA
• RX Max Working Current: 200mA
• Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
• Operating Temperature Range: (-15 to +45℃)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 59x56x17.5 (mm)
• TX Weight: 50g
• RX Weight: 48g
