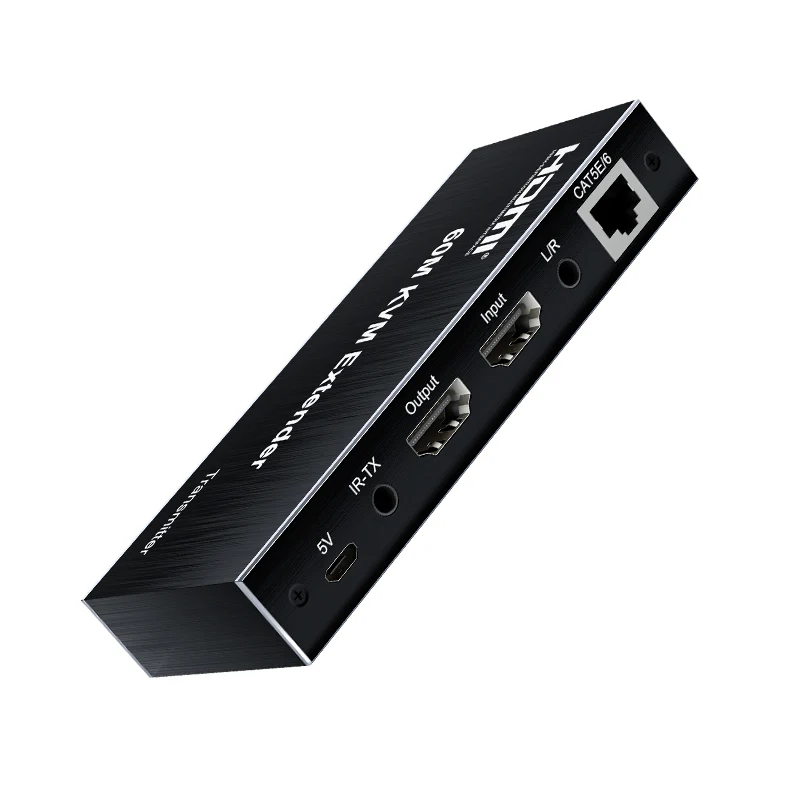

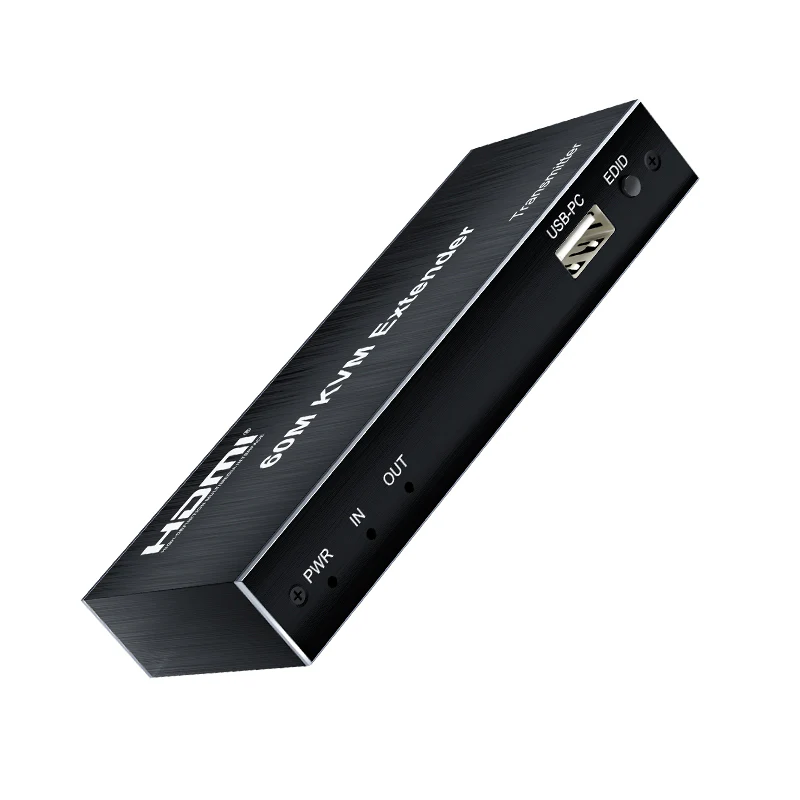

ArgoX HDES24 1080p HDMI KVM Extender Audio Video Transmitter Receiver with Loop, 60m Range, IR Control, Supports USB Mouse/Keyboard, UTP CAT5e/6 Network Cable, 3.5mm Audio Output

Specifications:

• Brand: ArgoX
• Model(s): HDES24
• Length of CAT-6/CAT-5E cable between Rx and TX: Up to 60 meters
• HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i
• HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i
• Max Bandwidth: 150MHz
• Max Baud Rate: 4.5Gbps
• Input Video Signal: 0.5~1.5Volts p-p
• Output DDC Signal: 5Volts p-p (TTL)
• Input HDMI Cable Distance: ≤10m AWG26 HDMI Standard Cable
• Output HDMI Cable Distance: ≤15m AWG26 HDMI Standard Cable
• TX Max Working Current: 450mA
• RX Max Working Current: 350mA
• Power Adapter Format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
• Operating Temperature Range: (-15 to +45℃)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 122x50x19 (mm)
• TX Weight: 108g
• RX Weight: 108g
