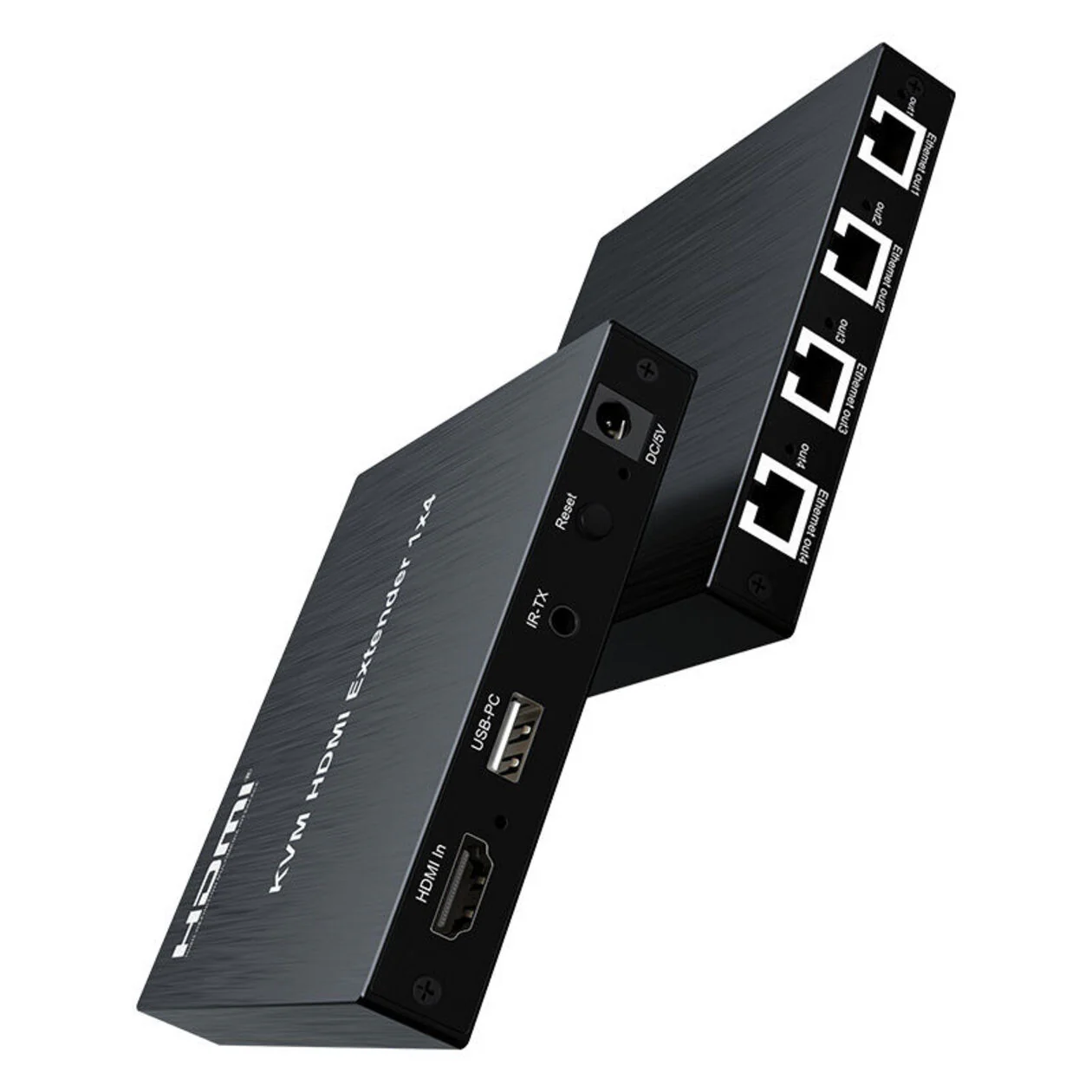

ArgoX KVM 1080P HDMI Video Extender Transmitter to 4x Receiver with 1.5Gbps Transmission Rate,USB Port, 4x CAT 5E/6 Out, Transmit Up to 200M Distance for Home Theater, Audio-Visual Conference, Command and Control Center

KVM HDMI EXTENDER
Transmitter to 4x Receiver

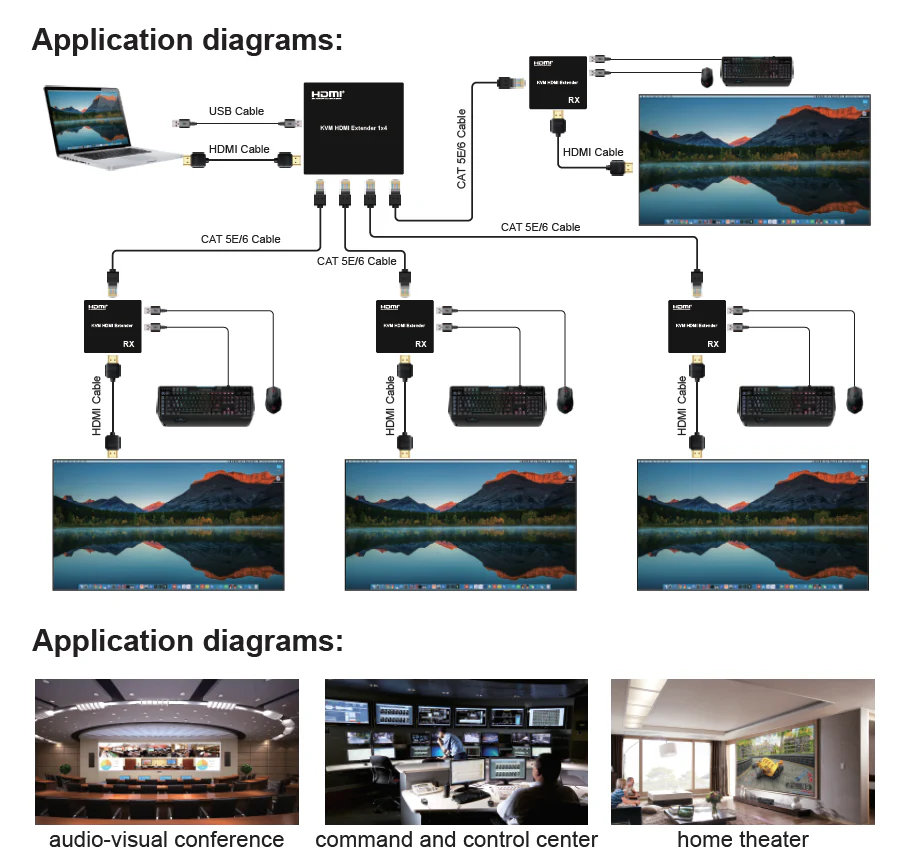

KVM HDMI extender 1x4 uses the standard TCP/IP protocol, it can be divided into 4 network cable outputs, replaced the switch connection, to achieve one-to-many video connection function. It can be connected DVD player or computer device which is HDMI high definition video, using the cat5e/6 network cable to transmit up to 200m distance. It is convenient to transmit HDMI audio and video source by one to four.

Features:

• Support MJPEG decoding;
• Support HDCP1.4;
• Support 802.3 Ethernet standard;
• Replace the switch, to achieve one to four functions;
• Support switch connection;
• Support for infrared extension;
• Support USB mouse and keyboard extension.
• The design of pure hardware, plug and play, no need for additional software.

Specifications:
Video Resolution        480P, 720P, 1080P
Support Video Format        RGB，YCbCr444，YCbCr422
Support Audio Format        Stereo:32kHz,44.1kHz and 48kHz
Max Bandwidth            148.5MHz
Max Transmission Rate        1.5Gbps
Input Cable Distance        AWG26 HDMI standard cable up to 15 meters
Power Adapter Format        AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Max Working Current        0.8A
Dimension (L x W x H)        121x112x19mm
Weight                220g
Operating/Temperature/Humidity    0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity    -10℃-70℃/5%-90%RH(no condensation)



What's inside the box?
1x KVM HDMI Extender
1x Power Adapter 5V
1x USB Cable Male to male
1x IR Cable
1x User Manual
1x Receiver
