SC2030
3G-SDI/ HDMI Scaling Signal Cross Converter
- Input: HDMI×1 or SDI×1, analog audio×1
- Output: 3G-SDI×2, HDMI×1
- Up/down scaling and frame rate conversion
- Analog audio Embedding
- HDMI/SDI Input automatic detection and configuration
- Control easily via the DIP switches
- USB is used for PC software control and power supply
- Dual threaded locking power, for redundant power supply
- Detachable bracket design for wall mounting
SC2030 is an exquisite and professional cross converter to convert between SDI and HDMI signal. The format of the output can realize up/down scaling and frame rate conversion. It also features analog audio embedding.
All the functions can be easily set by a built-in DIP switches or PC via micro USB. SC2030 is your ideal choice for broadcasting and AV post production applications.

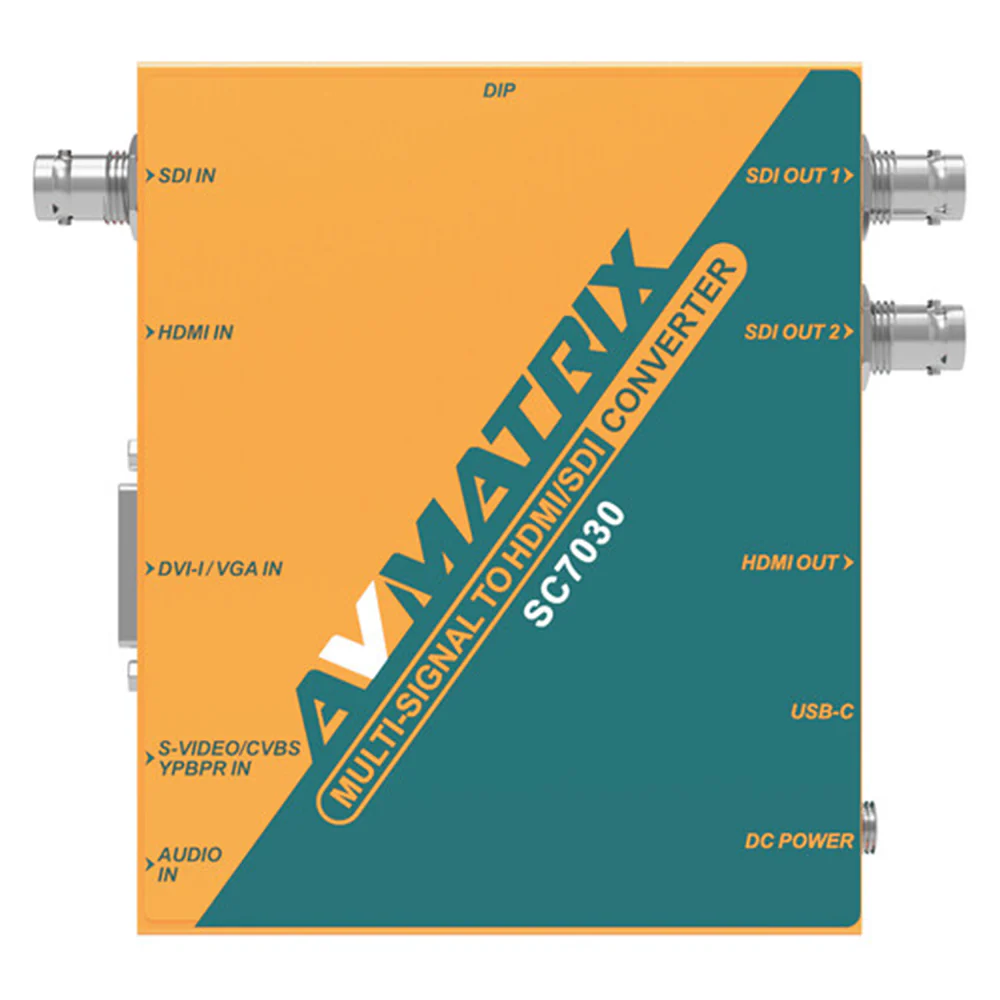

SC7030
MULTI-SIGNAL to SDI/HDMI
CROSS CONVERTER
- Inputs SDI, HDMI, DVI‑I/VGA, CVBS/S‑Video/YPbPr via TRRS
- Outputs 2× SDI, 1× HDMI
- Max Resolution Up to 1080p60
- Conversion Modes Up/down scaling, frame‑rate conversion, aspect ratio
- conversion, deinterlacing
- Audio Analog input embedded into outputs
- Control DIP switches or PC via USB‑C
- Power Locked DC barrel (6–24 V) + USB‑C (redundancy supported)
- Power Draw ≤ 5.5 W
- Environment –20 °C to 60 °C, 20–90% RH
- Dimensions / Weight 125.5 × 104 × 24.5 mm / ~496 g
